Spécifications du produit
SKU | ISE238 | ||
---|---|---|---|
Max Power (Pmax) | 50W(-5%,+10%) | Operating Temperature Limits |
-4℉ ~ +140℉ |
Solar Cells Efficiency | 23% | Series Fuse Rating | A |
Max. Power Voltage Vmp (V) | 16V(-5%,+10%) | Temperature Coefficient Pmax | -0.40%/℃ |
Max. Power Current Imp (A) | 3.1A(-5%,+10%) | Temperature Coefficient Voc | -0.31%/℃ |
Open Circuit Voltage Voc (V) | 19V(-5%,+10%) | Temperature Coefficient Isc | +0.038%/℃ |
Short Circuit Current (Isc) | 3.2A(-5%,+10%) | Dimensions(Folding) | 14.4*8.6*1.3 inches |
Performance Warranty | 25 years | Weight | 1.76 lbs |
Warranty Description | 10+2 Years(Exclusive benefit for purchases made on the BougeRV official website.) | Product Type | Curved Solar Panels |
SKU | ISE238 | ||
---|---|---|---|
Max Power (Pmax) | 50W(-5%,+10%) | Operating Temperature Limits |
-4℉ ~ +140℉ |
Solar Cells Efficiency | 23% | Series Fuse Rating | A |
Max. Power Voltage Vmp (V) | 16V(-5%,+10%) | Temperature Coefficient Pmax | -0.40%/℃ |
Max. Power Current Imp (A) | 3.1A(-5%,+10%) | Temperature Coefficient Voc | -0.31%/℃ |
Open Circuit Voltage Voc (V) | 19V(-5%,+10%) | Temperature Coefficient Isc | +0.038%/℃ |
Short Circuit Current (Isc) | 3.2A(-5%,+10%) | Dimensions(Folding) | 14.4*8.6*1.3 inches |
Performance Warranty | 25 years | Weight | 1.76 lbs |
Warranty Description | 10+2 Years(Exclusive benefit for purchases made on the BougeRV official website.) | Product Type | Curved Solar Panels |
SKU | ISE238 |
---|---|
Max Power (Pmax) | 50W(-5%,+10%) |
Solar Cells Efficiency | 23% |
Max. Power Voltage Vmp (V) | 16V(-5%,+10%) |
Max. Power Current Imp (A) | 3.1A(-5%,+10%) |
Open Circuit Voltage Voc (V) | 19V(-5%,+10%) |
Short Circuit Current (Isc) | 3.2A(-5%,+10%) |
Operating Temperature Limits | -4℉ ~ +140℉ |
Temperature Coefficient Pmax | -0.40%/℃ |
Temperature Coefficient Voc | -0.31%/℃ |
Temperature Coefficient Isc | +0.038%/℃ |

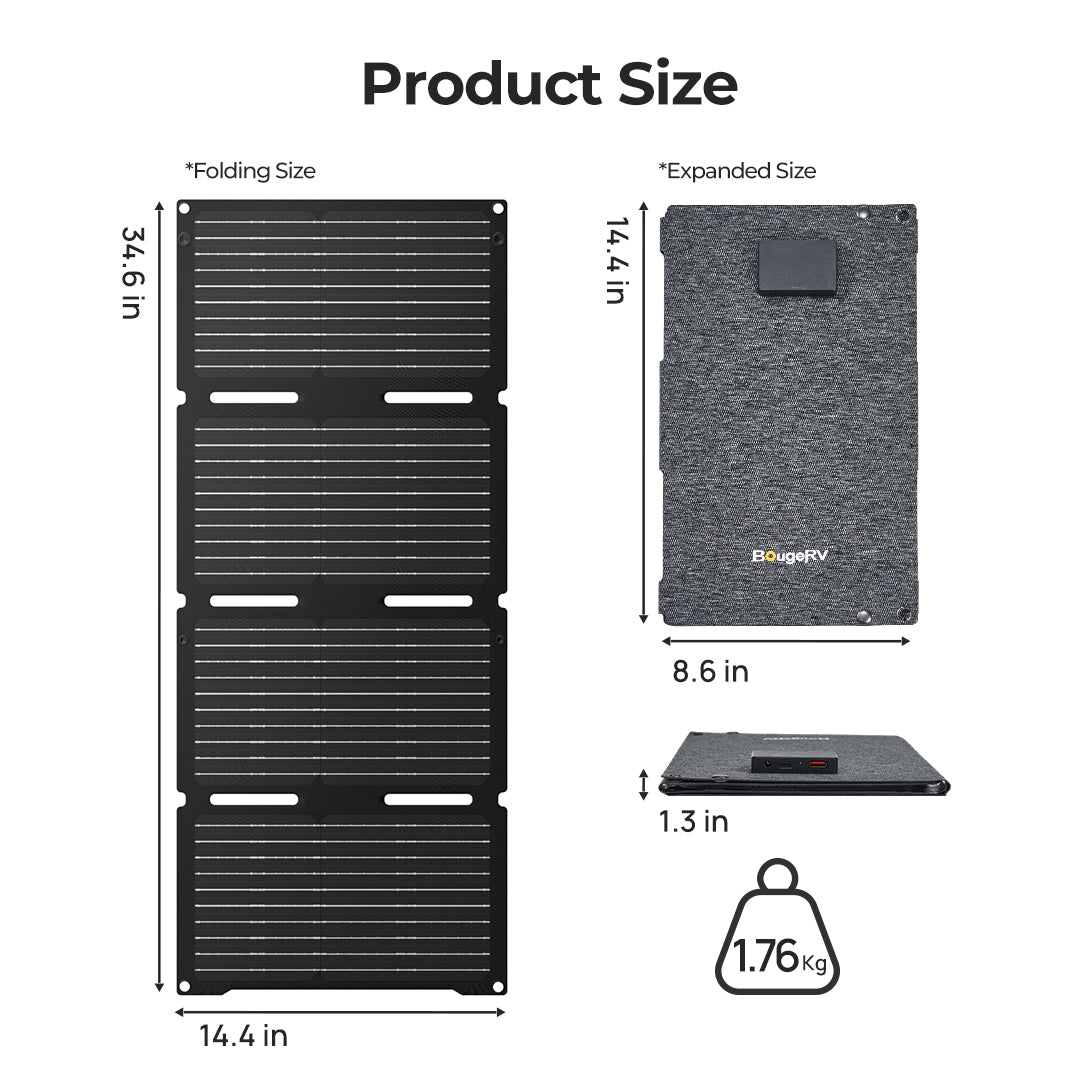

Dimensions | 14.4*8.6*1.3 inches |
Weight | 1.76 lbs |
Warranty Description | 10+2 Years(Exclusive benefit for purchases made on the BougeRV official website.) |
