200W CIGS Flexible Solar Panels Canada

Name: Yuma 200W CIGS Thin-film Flexible Solar Panel with Tape
Brand: BougeRV Canada
SKU: CAISE138
Price: 599.99 CAD
Availability: InStock

Yuma 200W CIGS Thin-film Flexible Solar Panel with Tape

FEATURES PRODUCT VIDEO

(25)

💐Mother's Day Sale

25% OFF

C$599.99

Limited time deal

C$799.99

Power your adventures with BougeRV Yuma 200W CIGS Flexible Solar Panel! Featuring cutting-edge CIGS technology, it’s durable, flexible, and ideal for RVs, boats, and off-grid setups. Easy to install and portable—go solar today!

Read more » Fold up »

Buy More Save More

1 PC

🔥 2 PCS (C$594.99/EACH)

3 PCS (C$589.99/EACH)

4 PCS (C$584.99/EACH)

Quantity

Pay With Ease:

200W CIGS Solar Panels

CIGS (Copper Indium Gallium Selenide) is a cutting-edge thin-film solar cell technology that takes our solar panels to the next level. With improved durability, light sensitivity, and lifetime, our 200 Watt CIGS Flexible Solar Panel with Adhesive is the perfect choice for anyone looking to harness the power of the sun. Thanks to its higher absorption coefficient and ultra-thin profile, it's incredibly flexible and can be used on uneven surfaces like RV and boat roofs, or even at your favorite campsite. Get the most out of your solar setup with our top-of-the-line CIGS technology!

cigs船类场景图-bonnie-c4-cigs_01_01_optimized.jpg__PID:a277a49a-6a88-499d-a45b-903ad94f90ee

Learn more about BougeRV CIGS Solar Panel

CIGS Flexible solar panel vs. other solar panels

Introducing the new and improved "Next Generation" solar panel! It's designed to be more flexible than ever before, with a 360-degree range of motion that allows for installation on any surface. Plus, it's both lightweight and durable, making it easy to install and long-lasting. And with improved efficiency and higher output, even shaded areas won't stop it from delivering top-notch performance.

HIGHLIGHTS

Designed to fit various roof shapes, this solar panel conforms to the roof's surface for better aerodynamics and a sleek appearance.

High Flexibility

200 Watt CIGS Flexible Solar Panel with Adhesive is incredibly flexible and can easily be rolled up for compact storage and transportation. It can even be bent and adjusted to fit curved surfaces without cracking.

Lightweight & Thin

200 Watt CIGS Flexible Solar Panel with Adhesive is designed to be lightweight and thin, meaning they don't require any additional mounting or aluminum frames. This not only improves aerodynamics, but also enhances the overall aesthetics of your solar-powered setup.

Streamlined Design

Our CIGS Solar cells are extremely flexible and amazingly crack resistant, unlike monocrystalline solar cells, which are virtually inflexible and prone to cracking, our panels are built to last.

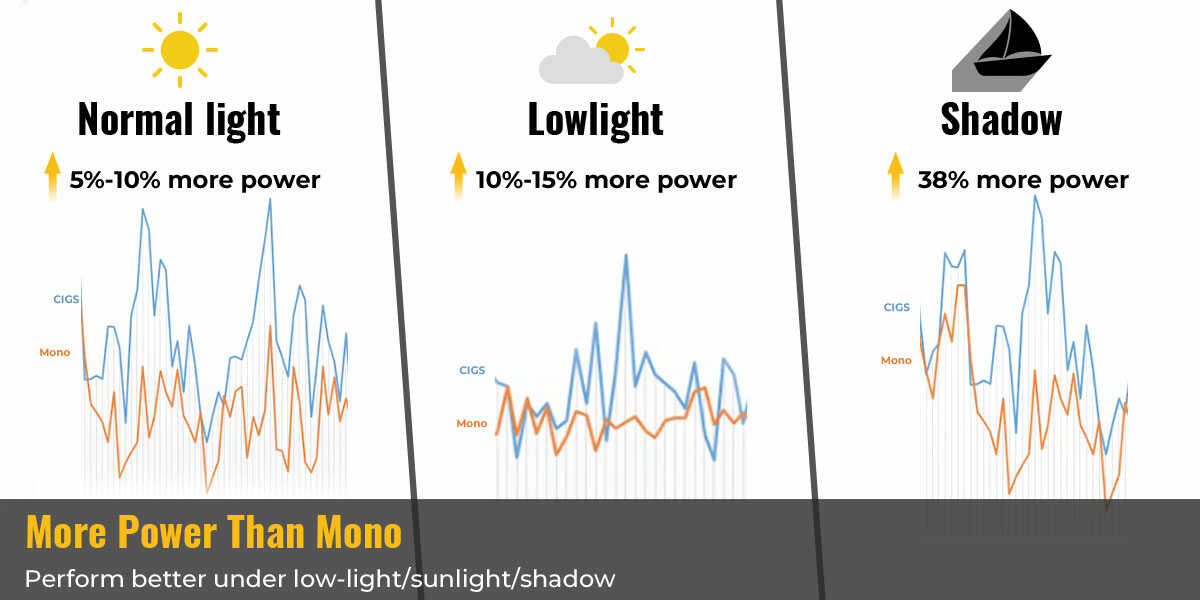

Improved Performance in Shaded Conditions

200 Watt CIGS Flexible Solar Panel with Adhesive is proven to perform better than conventional monocrystalline panels in shaded conditions, producing a remarkable 38% more power over the course of an 8-hour cloudy day.

Uncompromising Durability

200 Watt CIGS Flexible Solar Panel with Adhesive are highly durable and can withstand any impacts that may occur during installation and transportation. Even if partially damaged, our panels will still be able to function.

Effortless Installation

200 Watt CIGS Flexible Solar Panel with Adhesive features a pre-assembled adhesive backing that eliminates the need for brackets and drilling during installation. No tools are required for an easy and hassle-free setup.

High Flexibility

200 Watt CIGS Flexible Solar Panel with Adhesive is incredibly flexible and can easily be rolled up for compact storage and transportation. It can even be bent and adjusted to fit curved surfaces without cracking.

Lightweight & Thin

200 Watt CIGS Flexible Solar Panel with Adhesive is designed to be lightweight and thin, meaning they don't require any additional mounting or aluminum frames. This not only improves aerodynamics, but also enhances the overall aesthetics of your solar-powered setup.

Streamlined Design

Our CIGS Solar cells are extremely flexible and amazingly crack resistant, unlike monocrystalline solar cells, which are virtually inflexible and prone to cracking, our panels are built to last.

Improved Performance in Shaded Conditions

200 Watt CIGS Flexible Solar Panel with Adhesive is proven to perform better than conventional monocrystalline panels in shaded conditions, producing a remarkable 38% more power over the course of an 8-hour cloudy day.

Uncompromising Durability

200 Watt CIGS Flexible Solar Panel with Adhesive are highly durable and can withstand any impacts that may occur during installation and transportation. Even if partially damaged, our panels will still be able to function.

Effortless Installation

200 Watt CIGS Flexible Solar Panel with Adhesive features a pre-assembled adhesive backing that eliminates the need for brackets and drilling during installation. No tools are required for an easy and hassle-free setup.

Multipurpose Use

This 200 Watt CIGS Flexible Solar Panel with Adhesive is incredibly versatile and can be installed on a wide range of surfaces, including RVs, trucks, boats, tents, and roofs. Additionally, its lightweight design makes it easy to roll up and take with you wherever you go, functioning as a portable solar panel.

CIGS Flexible Solar Panel for RV.jpg__PID:56235b8e-ae00-459d-9858-4527a5b53e63

CIGS Flexible Solar Panel for off grid.jpg__PID:ae00e59d-9858-4527-a5b5-3e635fafd624

CIGS Flexible Solar Panel for boat.jpg__PID:5b8eae00-e59d-4858-8527-a5b53e635faf

CIGS Flexible Solar Panel for teardrop camper.jpg__PID:4527a5b5-3e63-4faf-9624-e9c6ba1df55e

CIGS Flexible solar panel for roof top tent.jpg__PID:98584527-a5b5-4e63-9faf-d624e9c6ba1d

Recommended by Influencers

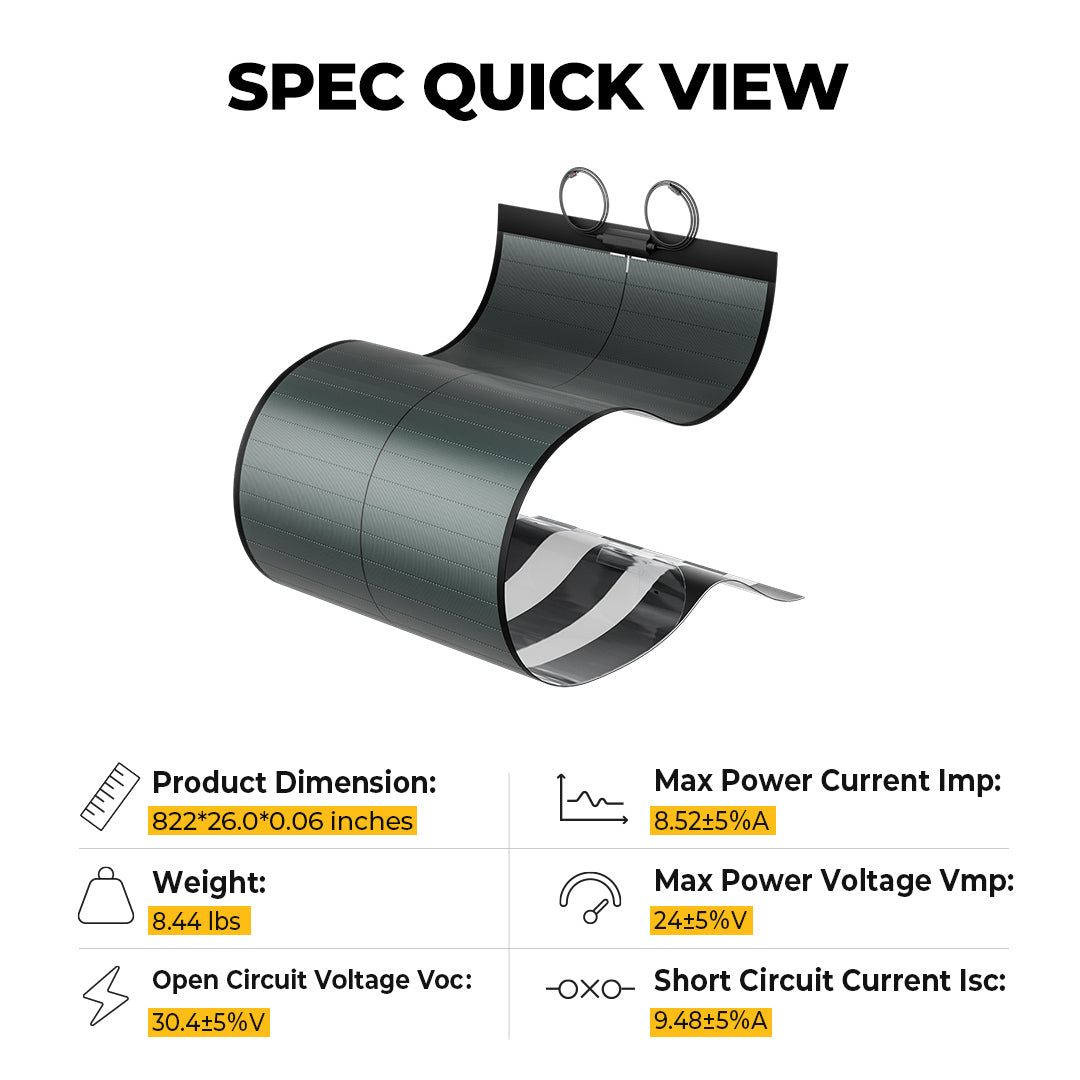

Product Specifications

SKU	ISE138
Max Power (Pmax)	200±5％W	Operating Temperature Limits	-40℉ ~ +185℉
Solar Cells Efficiency	17%	Performance Warranty	25 years
Max. Power Voltage Vmp (V)	24±5％V	Temperature Coefficient Pmax	-0.38%/℃
Max. Power Current Imp (A)	8.52±5％A	Temperature Coefficient Voc	-0.28%/℃
Open Circuit Voltage Voc (V)	30.4±5％V	Temperature Coefficient Isc	-0.008%/℃
Short Circuit Current (Isc)	9.48±5％A	Dimensions	82.226.00.06 inches
Max. System Voltage	1000V DC	Weight	8.44 lbs
Warranty Description	10 Years	Product Type	200w Flexible Solar Panel

SKU	ISE138
Max Power (Pmax)	200±5％W	Operating Temperature Limits	-40℉ ~ +185℉
Solar Cells Efficiency	17%	Performance Warranty	25 years
Max. Power Voltage Vmp (V)	24±5％V	Temperature Coefficient Pmax	-0.38%/℃
Max. Power Current Imp (A)	8.52±5％A	Temperature Coefficient Voc	-0.28%/℃
Open Circuit Voltage Voc (V)	30.4±5％V	Temperature Coefficient Isc	-0.008%/℃
Short Circuit Current (Isc)	9.48±5％A	Dimensions	82.226.00.06 inches
Max. System Voltage	1000V DC	Weight	8.44 lbs
Warranty Description	10 Years	Product Type	200w Flexible Solar Panel

SKU	ISE138
Max Power (Pmax)	200±5％W
Solar Cells Efficiency	17%
Max. Power Voltage Vmp (V)	24±5％V
Max. Power Current Imp (A)	8.52±5％A
Open Circuit Voltage Voc (V)	30.4±5％V
Short Circuit Current (Isc)	9.48±5％A
Max. System Voltage	1000V DC
Warranty Description	10 Years
Operating Temperature Limits	-40℉ ~ +185℉
Temperature Coefficient Pmax	-0.38%/℃
Temperature Coefficient Voc	-0.28%/℃
Temperature Coefficient Isc	-0.008%/℃
Dimensions	82.226.00.06 inches
Weight	8.44 lbs
Performance Warranty	25 years

User Manual

Reviews

FAQ

Low light intensity, improper angle incidence, and shading during use will result in low output of flexible CIGS solar panel. Therefore, it is important to adjust the angle of incidence to prevent shading and clean the solar panel regularly to remove obstructions such as bird droppings, dust, and debris. Such obstructions may cause the solar panel to not output at all.

A2: To remain adhesive, here are some daily maintenance tips for your CIGS solar panel:
1. Wipe the panel stains using a clean, moist, soft, non-abrasive fine fiber or sponge when cleaning the components.

2. When disassembling the panel, remove any residue stains on the mounting substrate surface using industrial alcohol.

3. Replace the adhesive backing when you find the solar panel and the surface of the mounting substrate have gaps, which results in a decrease in adhesion during daily use.

A3: Yes, it is possible to integrate this 200W CIGS solar panel into a house's electrical panel, but it is important to ensure that the electrical parameters of the solar panel match those of the house's electrical panel.

A4: It is not recommended to cut the 200W solar panels on your own. We are currently developing more sizes of CIGS solar panels, so please subscribe to our store for updates.

A5: Yes, it is safe to walk on the panels. Our flexible solar panels use CIGS Thin-film Cells which are much stronger than monocrystalline silicon cells. They can withstand a maximum pressure of 2400PA, which is approximately equal to 244.8kg/m².

A6: It is typically possible to connect the CIGS solar panels directly to a battery backup unit, but it depends on the Open Circuit Voltage (31.5V) and Short Circuit Current (4.32A) of the CIGS solar panel.

A7: No, we do not recommend connecting a CIGS solar panel with a 200W 9BB mono solar panel in series or parallel. As CIGS panels and Mono panels have a significant voltage difference, they cannot be connected in parallel. Therefore, it is not recommended to connect these two types of panels together.

When connecting panels of different sizes, it is important to consider the voltage and current between them. Panels in series need to have the same or similar current, and when connected in series, the current value tends to be the minimum current of the panels. If one panel is blocked or damaged, the whole circuit will be blocked. Panels in parallel need the same or similar voltage, and a large voltage difference can cause a risk of burning off.

A8：The BougeRV 200W Flexible Solar Panel is a great solution for applications that require a lightweight, flexible, and aesthetically pleasing solar panel. It can be easily mounted on curved or irregular surfaces, making it ideal for RVs, boats, trailers, tents, and other outdoor applications. Plus, our 200W solar panel is highly efficient and generates more power in low-light conditions with the advanced CIGS (Copper Indium Gallium Selenide) technology.

A9：The BougeRV 200W Flexible CIGS Solar Panel has several advantages over traditional rigid solar panels.

1) It is completely flexible and can be bent up to 360 degrees without damaging the cells or the module.

2) It has a slim profile and can be easily installed without adding extra weight or bulk to your vehicle or structure.

3) It has a sleek and modern design that blends in with the surface and enhances the overall appearance.

4) It performs better in low-light conditions and at high temperatures using the CIGS technology, increasing the overall energy yield.

A10：The BougeRV 200W Flexible CIGS Solar Panel comes with pre-drilled holes and grommets on the corners for easy mounting. So, You can use mounting brackets, suction cups, or adhesive tapes to attach it to your roof, wall, or ground. And, it's recommended to use an appropriate charge controller and wiring to connect the panel to your battery or inverter. Please refer to the user manual for detailed instructions.
