HIGHLIGHTS

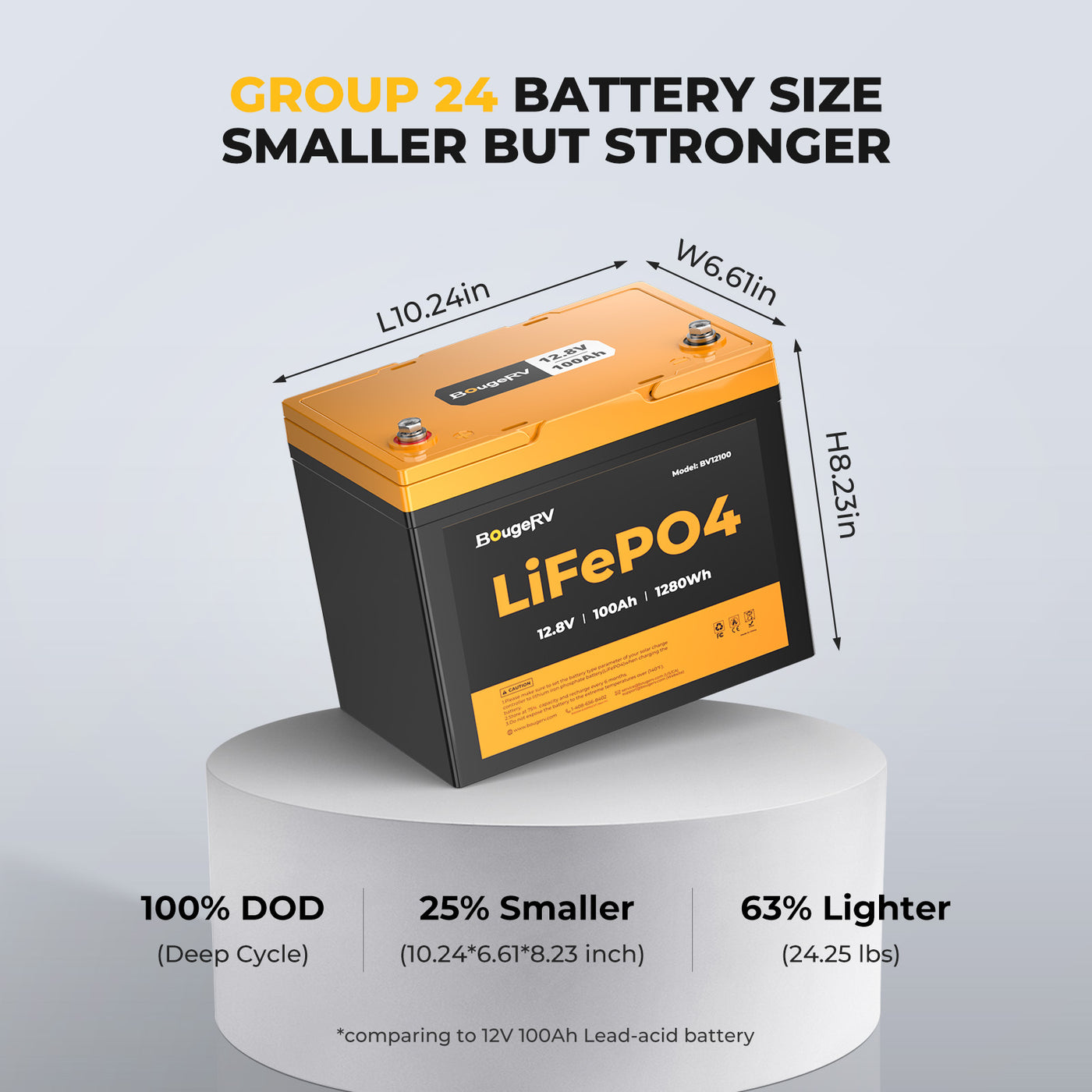

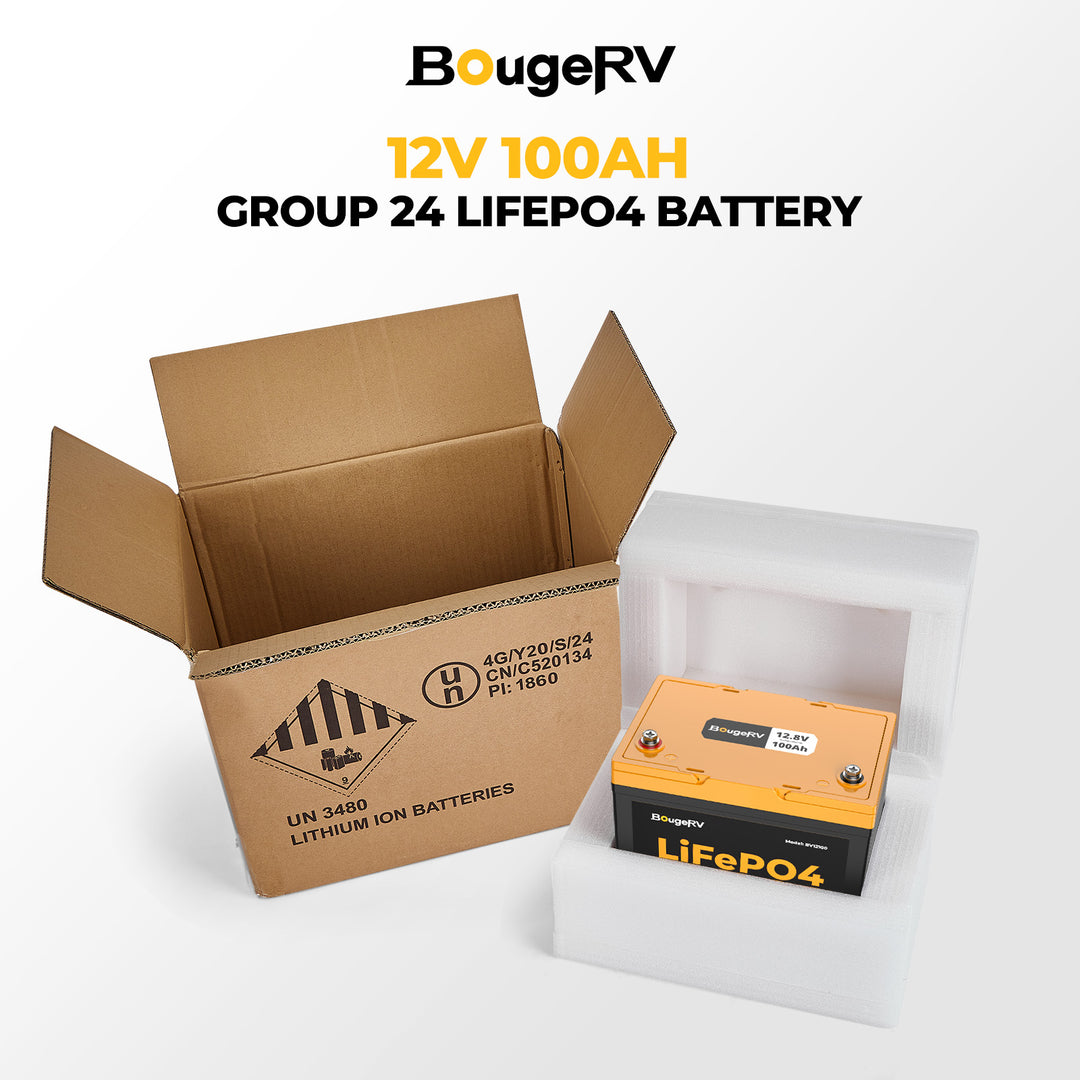

Standard dimensions of L10.24" W6.61" H8.23". The BougeRV Group 24 12V 100Ah LiFePO4 battery offers an excellent balance of space and performance, providing sufficient ampere-hours to meet a variety of needs while greatly saving space.


Provides low-temperature protection for battery charging. If the temperature falls below 32°F, it reduces or turns off current input and resumes charging at 35.6°F to ensure optimal battery health and extend battery life.


The BougeRV 12V 100Ah LiFePO4 battery provides 4,000–15,000 recharge cycles and has a lifespan of more than 10 years under ideal conditions.

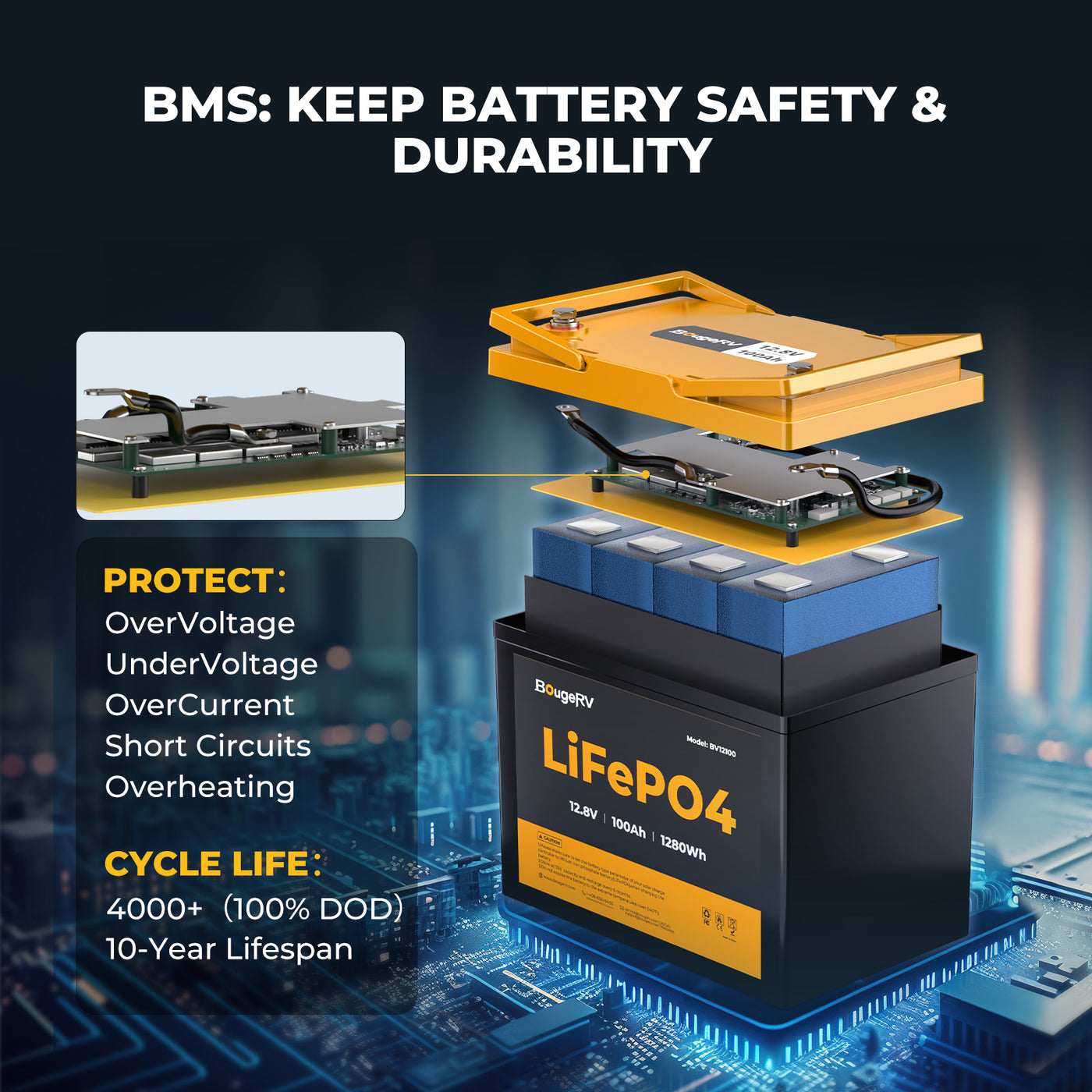

Upgraded BMS:Provides overvoltage, low voltage, overcurrent, short circuit, low temperature, and high temperature protection for the battery. The BMS ensures the safety of normal battery use by monitoring battery status and extending battery life

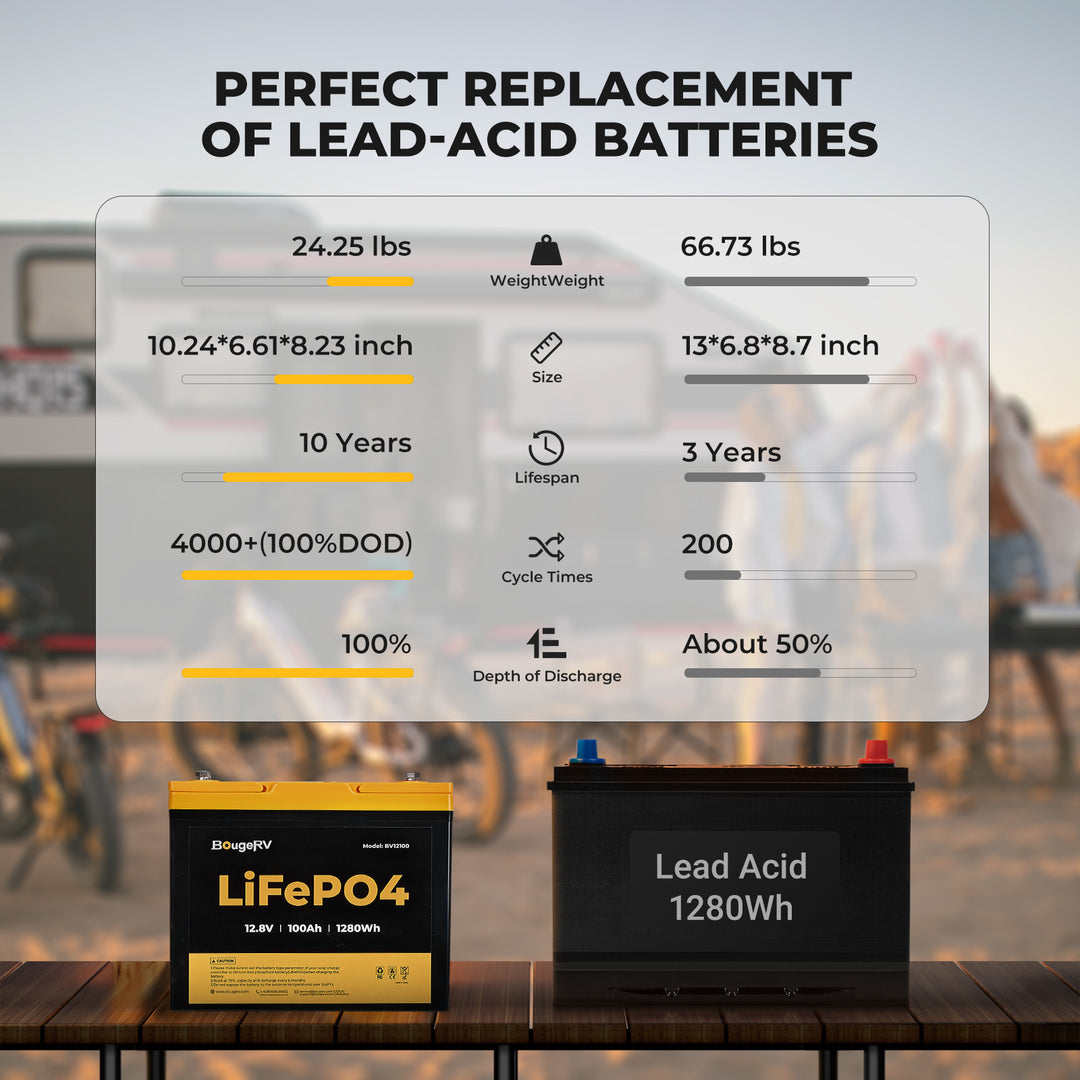

Progressive Choice:Only 24.25 lbs,lighter than 66 lbs of lead-acid batteries. Charge Cycle Count of LiFePo4 battery is 4000-15000, which is much higher than 200-500 of lead-acid battery. LiFePo4 battery also supports full charge and discharge(100% DOD)

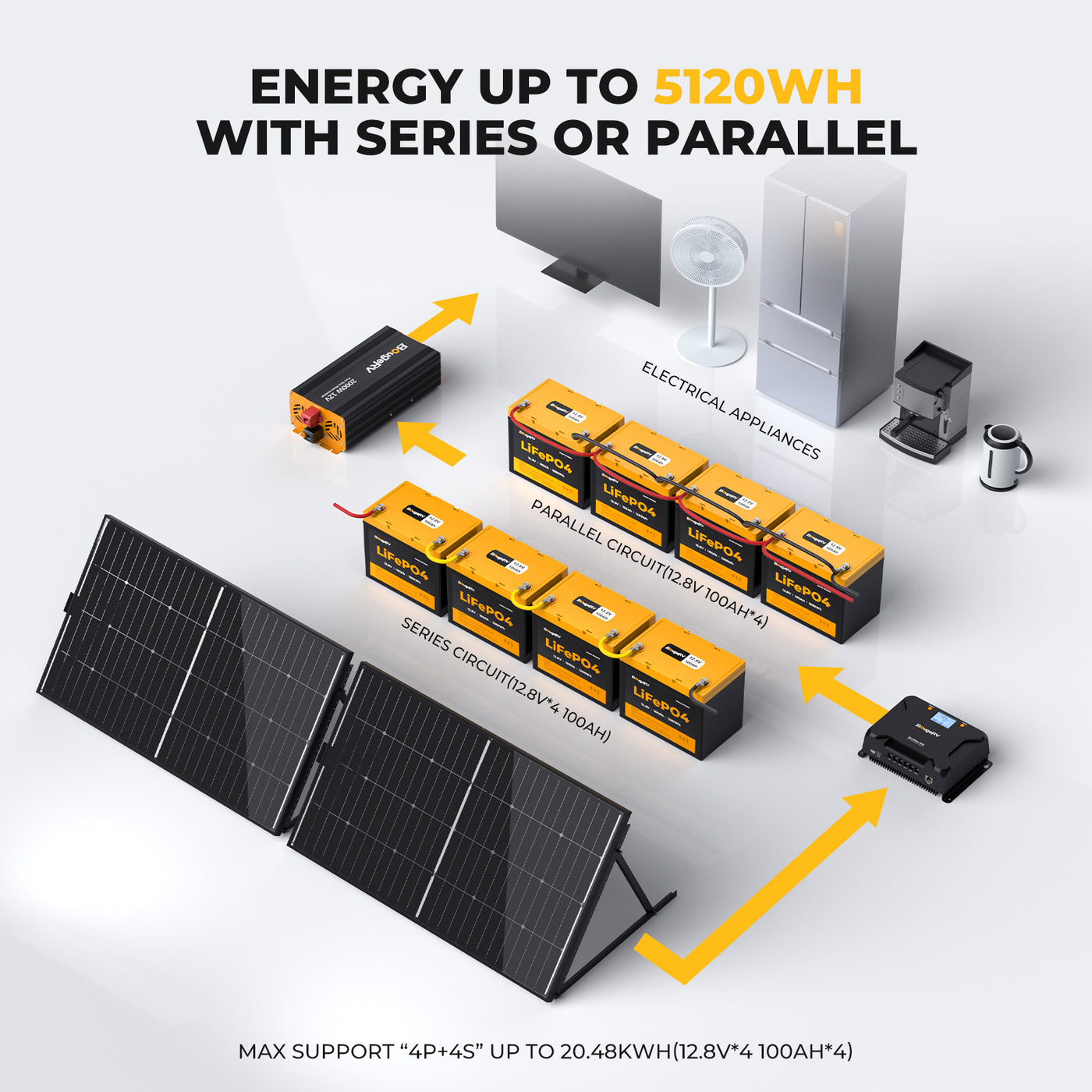

Supporting up to 16 batteries in a series-parallel pack (4S4P), the maximum capacity of the battery can be up to 20480 Wh.


The BougeRV LiFePO4 battery can self-recover after charge and discharge overloads without disconnecting the wiring from the battery. The recovery process takes only 32 seconds, ensuring safe electricity use


Product Specifications
SKU |
ISE212N |
---|---|
Nominal Voltage | 12.8V |
Nominal Capacity | 100Ah |
Charge Voltage |
14.4~14.6V
|
Energy | 1280Wh |
Standard charge | 20A (0.2C, recommend charge current) |
Maximum charge
|
100A(1C) |
Maximum Continuous Charge Current
|
100A (25°C, 77°F)
|
Maximum Continuous Discharge Current
|
100A (1C)
|
Maximum Discharge Current
|
330A (2.5s)
|
Over-Charging Protection Voltage
|
14.6V
|
Over-Charging Recovery Voltage
|
14.0V
|
Over-Discharging Protection Voltage
|
8.8V
|
Over-Discharging Protection Recovery Voltage
|
10.4V
|
Charge Temperature Range
|
0°C~65°C (32°F~149°F)
|
Discharge Temperature Range
|
-20°C~75°C (-4°F~167°F)
|
Cycle Life | 4000 times (25°C, 0.2C, 100%DOD) |
Low Temperature Charging Protection
|
0°C (32°F), after the low temperature
protection is activated, the battery
temperature returns to 2°C (35.6°F) for
recharging.
|
Short Term
|
-20°C~45°C (-4°F~113°F)
|
Long Term
|
10°C~35°C (50°F~95°F)
|
Maximum Series Voltage Of Battery Pack
|
48V(4S)
|
Maximum Parallel Current Of Battery Pack
|
400Ah(4P)
|
Charge Method
|
CC/CV
|
Item Demension |
L10.24*W6.61*H8.23
|
Item Weight | 24.25 lbs |
Protection Rating
|
IP65
|
Product Warranty | 5 Years |
SKU |
ISE212N |
---|---|
Nominal Voltage | 12.8V |
Nominal Capacity | 100Ah |
Charge Voltage |
14.4~14.6V
|
Energy | 1280Wh |
Standard charge | 20A (0.2C, recommend charge current) |
Maximum charge
|
100A(1C) |
Maximum Continuous Charge Current
|
100A (25°C, 77°F)
|
Maximum Continuous Discharge Current
|
100A (1C)
|
Maximum Discharge Current
|
330A (2.5s)
|
Over-Charging Protection Voltage
|
14.6V
|
Over-Charging Recovery Voltage
|
14.0V
|
Over-Discharging Protection Voltage
|
8.8V
|
Over-Discharging Protection Recovery Voltage
|
10.4V
|
Charge Temperature Range
|
0°C~65°C (32°F~149°F)
|
Discharge Temperature Range
|
-20°C~75°C (-4°F~167°F)
|
Cycle Life | 4000 times (25°C, 0.2C, 100%DOD) |
Low Temperature Charging Protection
|
0°C (32°F), after the low temperature
protection is activated, the battery
temperature returns to 2°C (35.6°F) for
recharging.
|
Short Term
|
-20°C~45°C (-4°F~113°F)
|
Long Term
|
10°C~35°C (50°F~95°F)
|
Maximum Series Voltage Of Battery Pack
|
48V(4S)
|
Maximum Parallel Current Of Battery Pack
|
400Ah(4P)
|
Charge Method
|
CC/CV
|
Item Demension |
L10.24*W6.61*H8.23
|
Item Weight | 24.25 lbs |
Protection Rating
|
IP65
|
Product Warranty | 5 Years |
SKU |
ISE212N |
---|---|
Nominal Voltage | 12.8V |
Nominal Capacity | 100Ah |
Charge Voltage |
14.4~14.6V
|
Energy | 1280Wh |
Standard charge | 20A (0.2C, recommend charge current) |
Maximum charge
|
100A(1C) |
Maximum Continuous Charge Current
|
100A (25°C, 77°F)
|
Maximum Continuous Discharge Current
|
100A (1C)
|
Maximum Discharge Current
|
330A (2.5s)
|
Over-Charging Protection Voltage
|
14.6V
|
Over-Charging Recovery Voltage
|
14.0V
|
Over-Discharging Protection Voltage
|
8.8V
|
Over-Discharging Protection Recovery Voltage
|
10.4V
|
Charge Temperature Range
|
0°C~65°C (32°F~149°F)
|
Discharge Temperature Range
|
-20°C~75°C (-4°F~167°F)
|
Cycle Life | 4000 times (25°C, 0.2C, 100%DOD) |
Low Temperature Charging Protection
|
0°C (32°F), after the low temperature
protection is activated, the battery
temperature returns to 2°C (35.6°F) for
recharging.
|
Short Term
|
-20°C~45°C (-4°F~113°F)
|
Long Term
|
10°C~35°C (50°F~95°F)
|
Maximum Series Voltage Of Battery Pack
|
48V(4S)
|
Maximum Parallel Current Of Battery Pack
|
400Ah(4P)
|
Charge Method
|
CC/CV
|
Item Demension |
L10.24*W6.61*H8.23
|
Item Weight | 24.25 lbs |
Protection Rating
|
IP65
|
Product Warranty | 5 Years |
User Manual
Reviews
FAQ
There are two options for charging this 100 amp hour self heating lifepo4 battery.

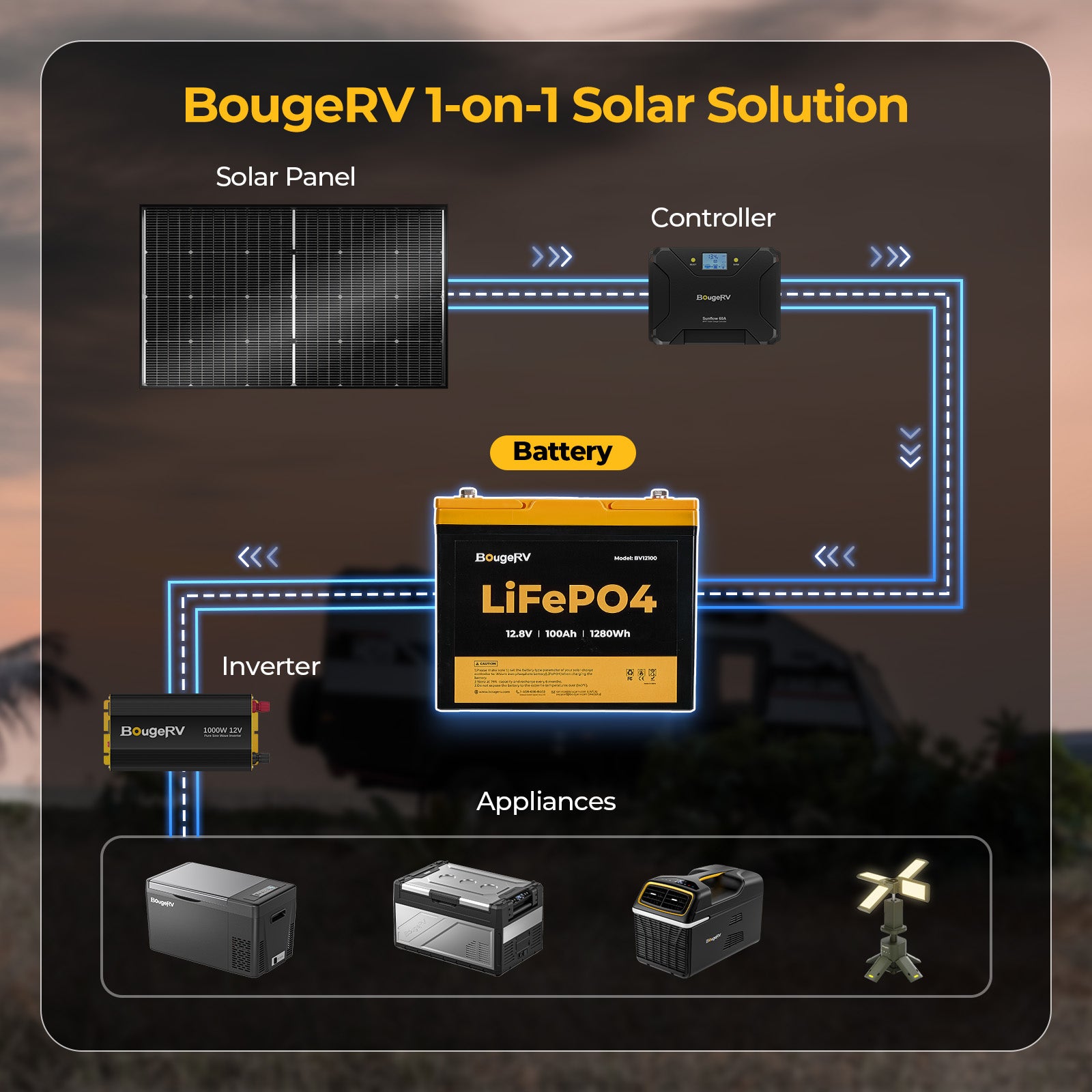

Firstly, you can connect a solar panel to a solar charge controller (MPPT/PWM) and ensure that the system voltage of the controller is 12V.
Secondly, you can use a charger that supports LI battery charging.
No, the battery will only activate the self-heating feature when it is being charged (≤33.8 °F to turn on the self-heating, ≥46.4 °F to turn off the self-heating). Therefore, the self-heating feature will only use the input power and not the power from the battery.
To prolong the self heating LiFePO4 battery lifespan, do not discharge it below 10V. Additionally, this 100 amp hour lithium iron phosphate battery needs to be fully charged every 3-6 months to prevent over-discharging.
If the voltage is too low to charge the self heating lifepo4 battery, you can use a charger with a 0V function to charge the battery from 0V. However, note that the 0V charger cannot be used as a daily charger after the battery is fully charged.
