LONGER LAST
Adopt premium LiFePO4, BougeRV 12V 100Ah lithium battery provides 4000+ recharge cycles, 100% discharged rate and 10 years lifespan. Compare with lead-acid battery, which provides 500 recharge cycles and 50% discharged rate, lithium battery is more compact and has larger capacity than Lead-acid battery.
HIGHLIGHTS
![](http://ca.bougerv.com/cdn/shop/files/ISE176-C5_3_{width}x.jpg?v=1713321179)
![](http://ca.bougerv.com/cdn/shop/files/ISE176-C5-App_3_{width}x.jpg?v=1713321179)

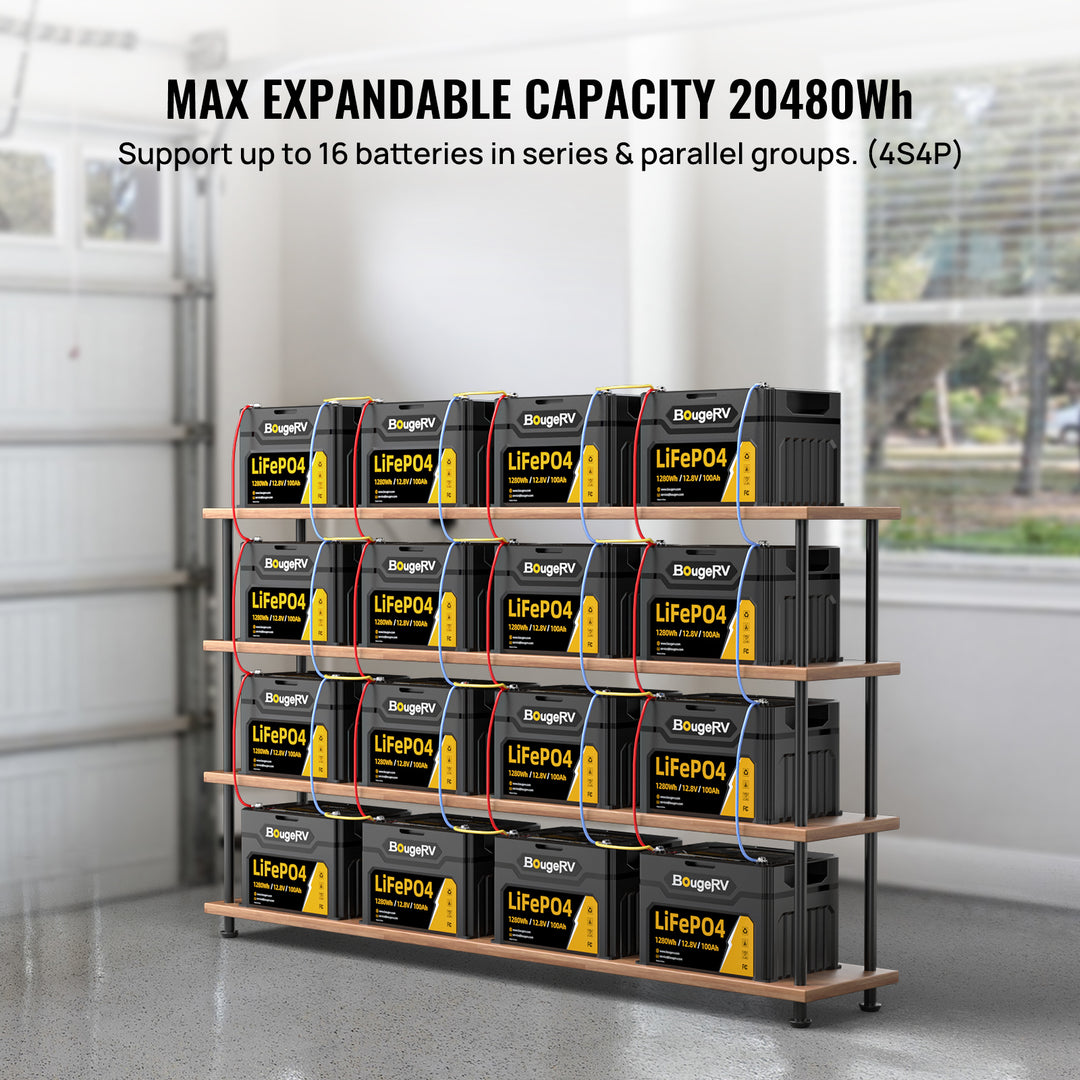

Supporting Up to 16 Batteries in a Series-Parallel pack, the Max expandable capacity of the battery can up to 20480Wh, while it will also maintain a balanced voltage across all cells to keep the charging and discharging safe.
![](http://ca.bougerv.com/cdn/shop/files/ISE176-C5_4_{width}x.jpg?v=1713321244)
![](http://ca.bougerv.com/cdn/shop/files/ISE176-C5-App_4_{width}x.jpg?v=1713321244)

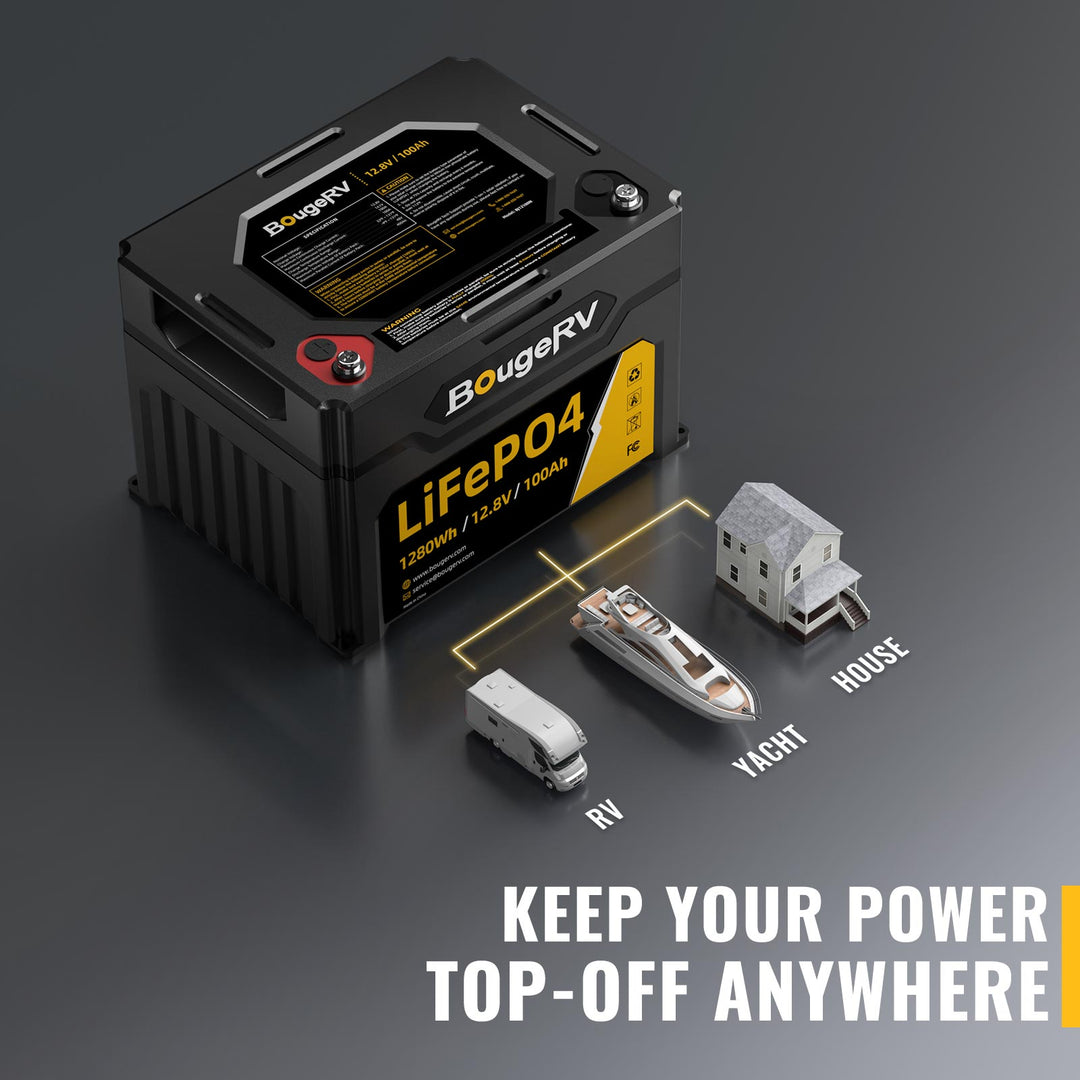

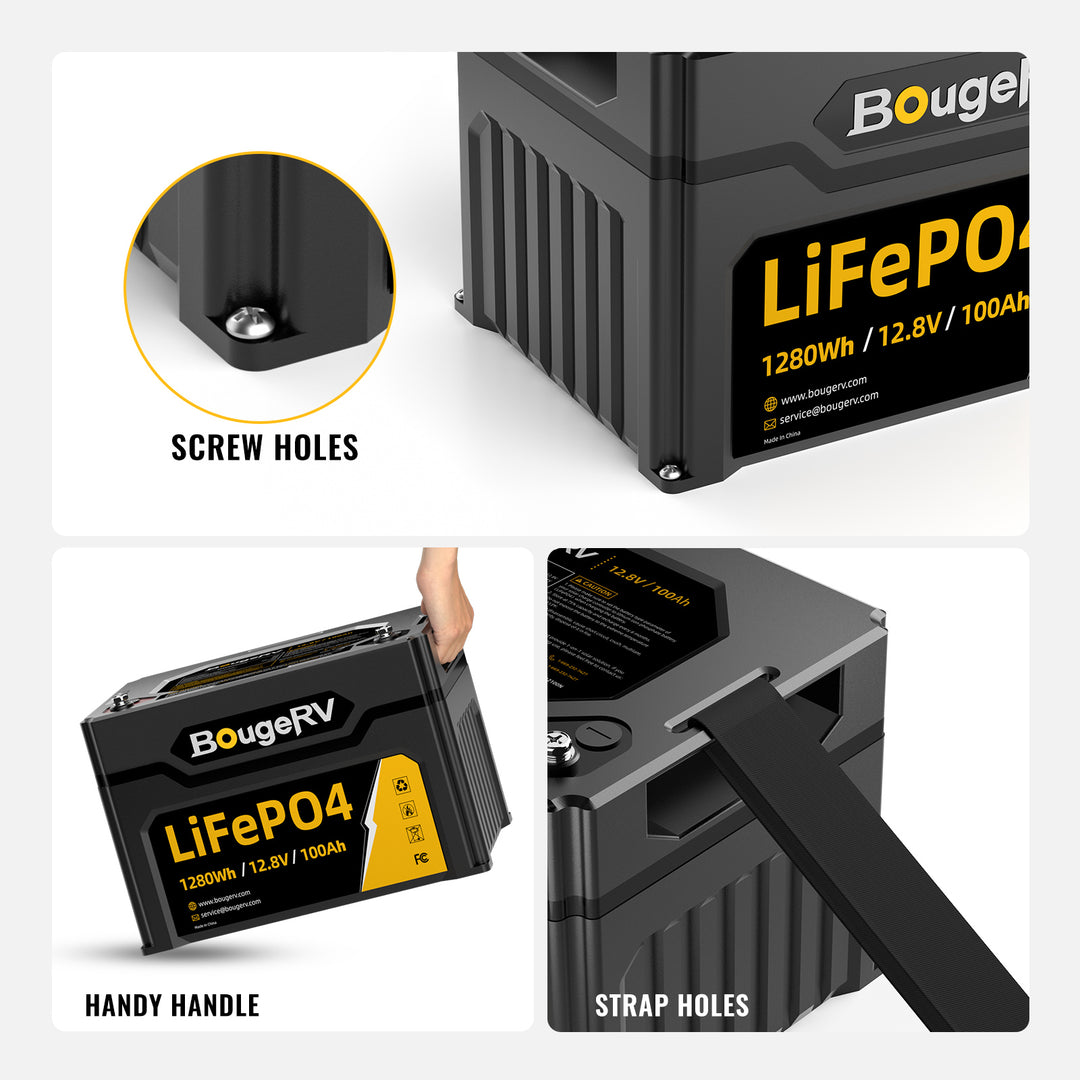

BougeRV LiFePO4 is only 27lbs weight, 50% lighter than a lead-acid battery with same capacity. Comes with 4 fixable holes, you can install the screw and fix the battery stably for RVs, Marine and Off-Grid Applications, it will not slide. You can also move the lithium battery easily with grabbing its handles on both side.
![](http://ca.bougerv.com/cdn/shop/files/ISE176-C5_2_{width}x.jpg?v=1713321183)
![](http://ca.bougerv.com/cdn/shop/files/ISE176-C5-App_2_{width}x.jpg?v=1713321183)

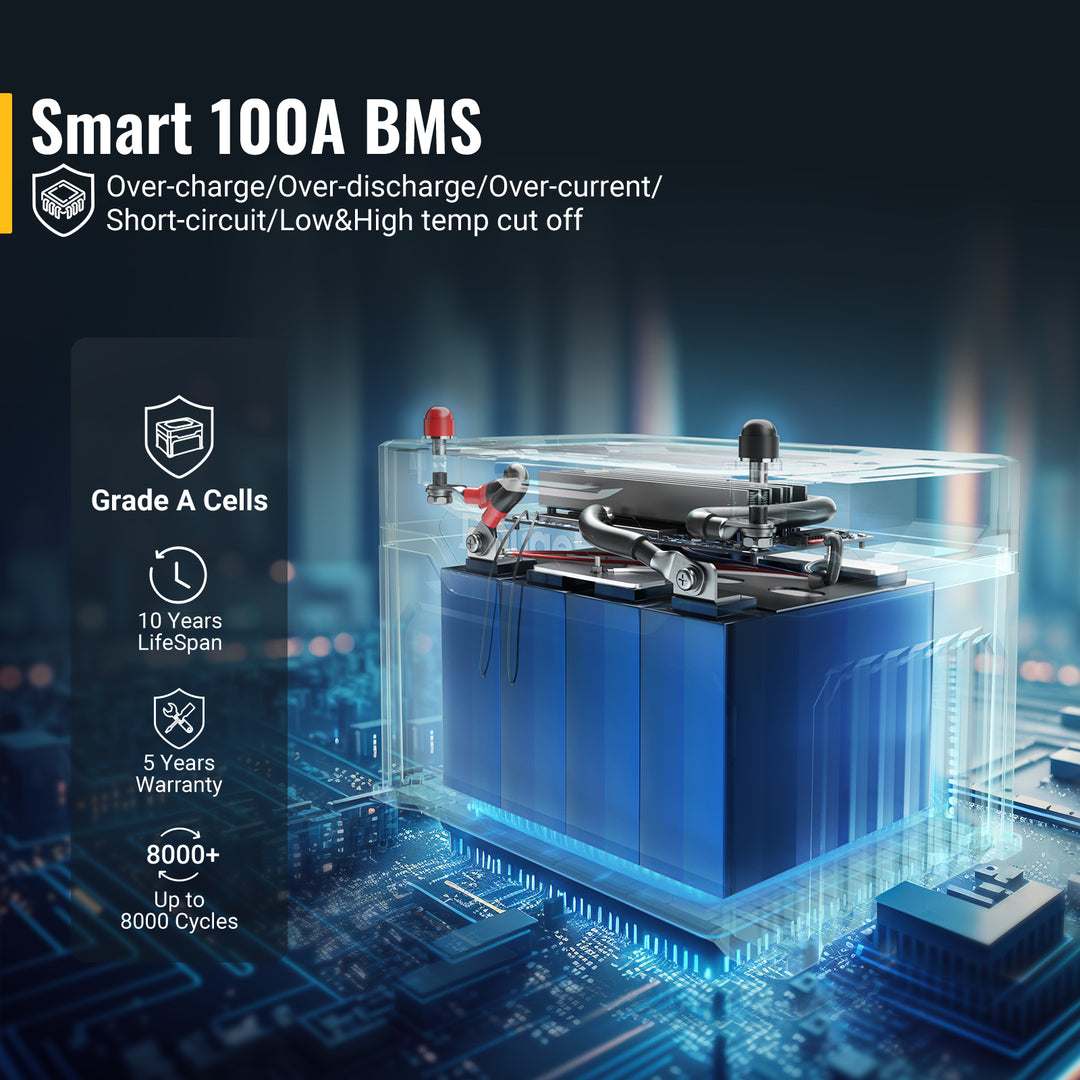

BougeRV lithium battery supports the max charge current can up to 1C (100A), which means you the battery can be full charged within 1 hours. It has built-in BMS protection, made of premium aluminum case, to keep your charge safer. Features overcharge, over-discharge, over-current and short circuit protection.
![](http://ca.bougerv.com/cdn/shop/files/ISE176-C5_3_{width}x.jpg?v=1713321179)
![](http://ca.bougerv.com/cdn/shop/files/ISE176-C5-App_3_{width}x.jpg?v=1713321179)
Supporting Up to 16 Batteries in a Series-Parallel pack, the Max expandable capacity of the battery can up to 20480Wh, while it will also maintain a balanced voltage across all cells to keep the charging and discharging safe.
![](http://ca.bougerv.com/cdn/shop/files/ISE176-C5_4_{width}x.jpg?v=1713321244)
![](http://ca.bougerv.com/cdn/shop/files/ISE176-C5-App_4_{width}x.jpg?v=1713321244)
BougeRV LiFePO4 is only 27lbs weight, 50% lighter than a lead-acid battery with same capacity. Comes with 4 fixable holes, you can install the screw and fix the battery stably for RVs, Marine and Off-Grid Applications, it will not slide. You can also move the lithium battery easily with grabbing its handles on both side.
![](http://ca.bougerv.com/cdn/shop/files/ISE176-C5_2_{width}x.jpg?v=1713321183)
![](http://ca.bougerv.com/cdn/shop/files/ISE176-C5-App_2_{width}x.jpg?v=1713321183)
BougeRV lithium battery supports the max charge current can up to 1C (100A), which means you the battery can be full charged within 1 hours. It has built-in BMS protection, made of premium aluminum case, to keep your charge safer. Features overcharge, over-discharge, over-current and short circuit protection.
More CHOICES FOR YOU
![](http://ca.bougerv.com/cdn/shop/files/111_a1a1a83c-cbb2-4a22-a999-83eb_{width}x.jpg?v=1713321493)
![](http://ca.bougerv.com/cdn/shop/files/111_a1a1a83c-cbb2-4a22-a999-83eb_{width}x.jpg?v=1713321493)
Product Specifications
SKU |
ISE176 | |||
---|---|---|---|---|
Nominal Voltage | 12.8V | Over-Charge Voltage |
|
|
Nominal Capacity | 100Ah | Over-Discharge Voltage | 9.40±0.32V | |
Charge Voltage | 14.1V | Cycle Life | 4000 times (The remaining battery capacity after 4000 cycles is ≥ 80% of the initial battery capacity). | |
Energy | 1280Wh | Max. Series Voltage Of Packs | 48V | |
Standard charge | 50A(0.5C) | Max. Parallel Current Of Packs | 400Ah | |
Rapid charge | 100A(1.0C) | Internal resistance | ≤30mΩ |
SKU |
ISE176 | |||
---|---|---|---|---|
Nominal Voltage | 12.8V | Over-Charge Voltage |
|
|
Nominal Capacity | 100Ah | Over-Discharge Voltage | 9.40±0.32V | |
Charge Voltage | 14.1V | Cycle Life | 4000 times (The remaining battery capacity after 4000 cycles is ≥ 80% of the initial battery capacity). | |
Energy | 1280Wh | Max. Series Voltage Of Packs | 48V | |
Standard charge | 50A(0.5C) | Max. Parallel Current Of Packs | 400Ah | |
Rapid charge | 100A(1.0C) | Internal resistance | ≤30mΩ |
SKU |
ISE176 |
---|---|
Nominal Voltage | 12.8V |
Nominal Capacity | 100Ah |
Charge Voltage | 14.1V |
Energy | 1280Wh |
Standard charge | 50A(0.5C) |
Rapid charge | 100A(1.0C) |
Over-Charge Voltage | ≥14.8V (Adjust the charging voltage below 14.8V to resume charging) |
Over-Discharge Voltage | 9.40±0.32V |
Cycle Life | 4000 times (The remaining battery capacity after 4000 cycles is ≥ 80% of the initial battery capacity). |
Max. Series Voltage Of Packs | 48V |
Max. Parallel Current Of Packs | 400Ah |
Internal resistance | ≤30mΩ |
User Manual
Reviews
FAQs
The BougeRV 12V 100Ah lithium battery, which uses premium LiFePO4 technology, offers over 4000 recharge cycles and a 100% discharge rate. In comparison, lead-acid batteries have 500 recharge cycles and a 50% discharge rate. The lithium battery is more compact and has a higher capacity than lead-acid batteries.
LiFePO4 batteries are known for their longevity and can handle a significantly higher number of cycles compared to other lithium-ion battery chemistries. Our battery provides a 10-year lifespan.
The battery can support a maximum capacity of 20480Wh by combining up to 16 batteries in a series-parallel configuration. Additionally, it ensures a balanced voltage across all cells to ensure safe charging and discharging.
No, it's not heavy, BougeRV LiFePO4 weighs just 27lbs, which is 50% lighter than a lead-acid battery of the same capacity. It has 4 holes that can be easily fixed for stable installation in RVs, Marine, and Off-Grid applications, ensuring it doesn't slide. Moreover, the lithium battery can be conveniently carried by holding onto the handles on both sides.
