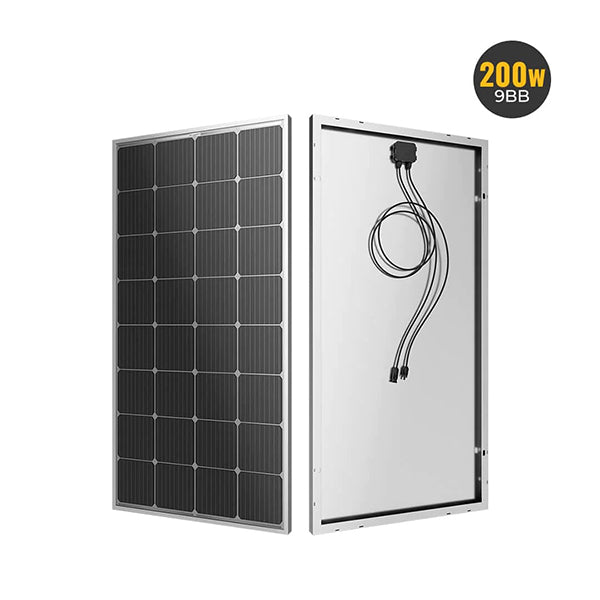

200W 12V 9BB Mono Solar Panel

Name: 200W 12V 9BB Mono Solar Panel
Brand: BougeRV Canada
SKU: CAISE114
Price: 369.99 CAD
Availability: OutOfStock

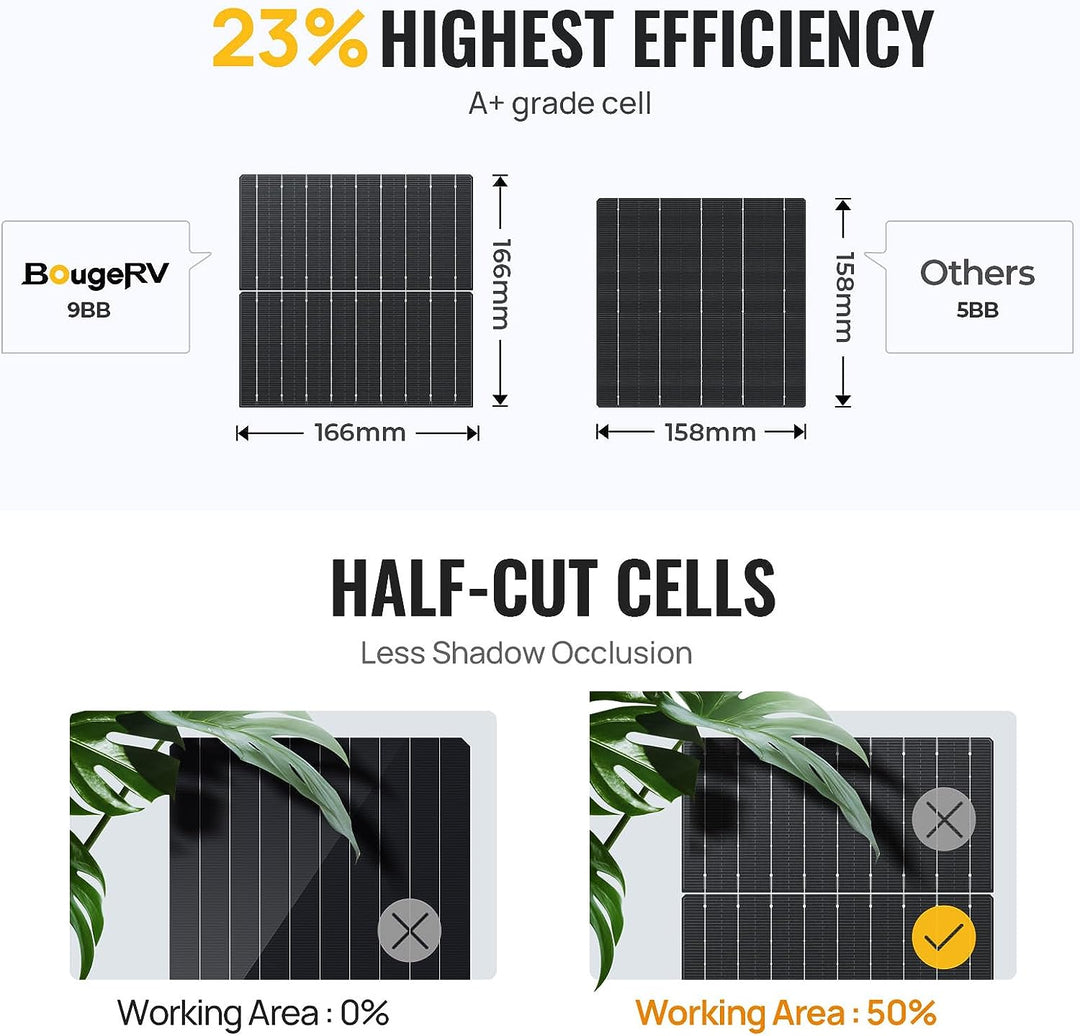

200w 9bb mono solar panel with 23% efficiency

200w 9bb mono solar panel with compact size, more power

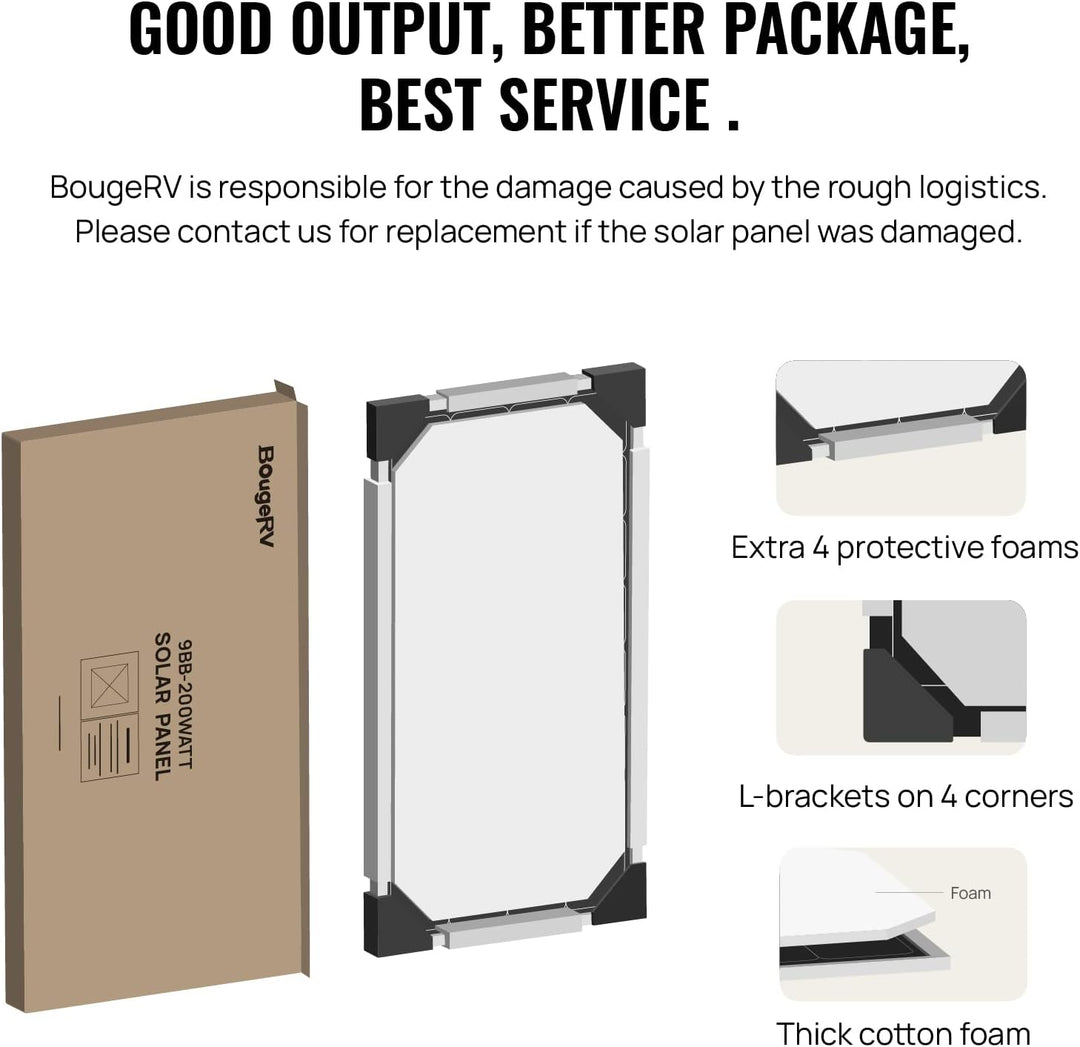

200w 9bb mono solar panel with better package

200w 9bb mono solar panel with power your life everywhere

200w 9bb mono solar panel with easy installation

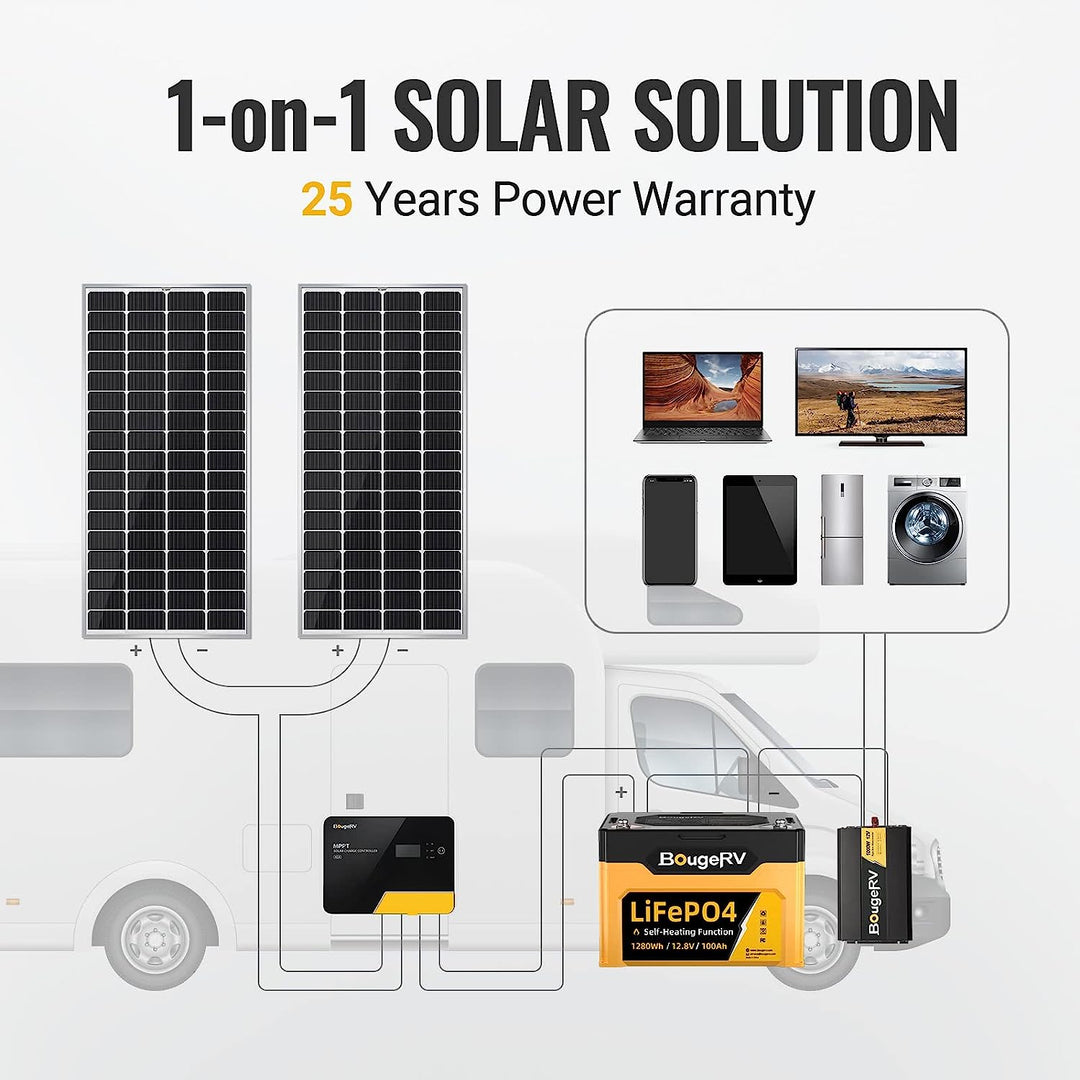

200w 9bb mono solar panel with 1-on-1 solar soulution

C$369.99

Unleash the full potential of solar energy with our 200 watt portable solar! Crafted with premium 9bb monocrystalline cells, this 200 watt 12V solar panel delivers superior conversion efficiency and features a sturdy aluminum frame that can handle the toughest conditions. Perfect for off-grid setups such as rvs, boats, and cabins, this panel is a must-have for any solar enthusiast looking to go green and save money.

Features

Learn more about BougeRV 200 Watt Solar Panel

HIGHLIGHTS

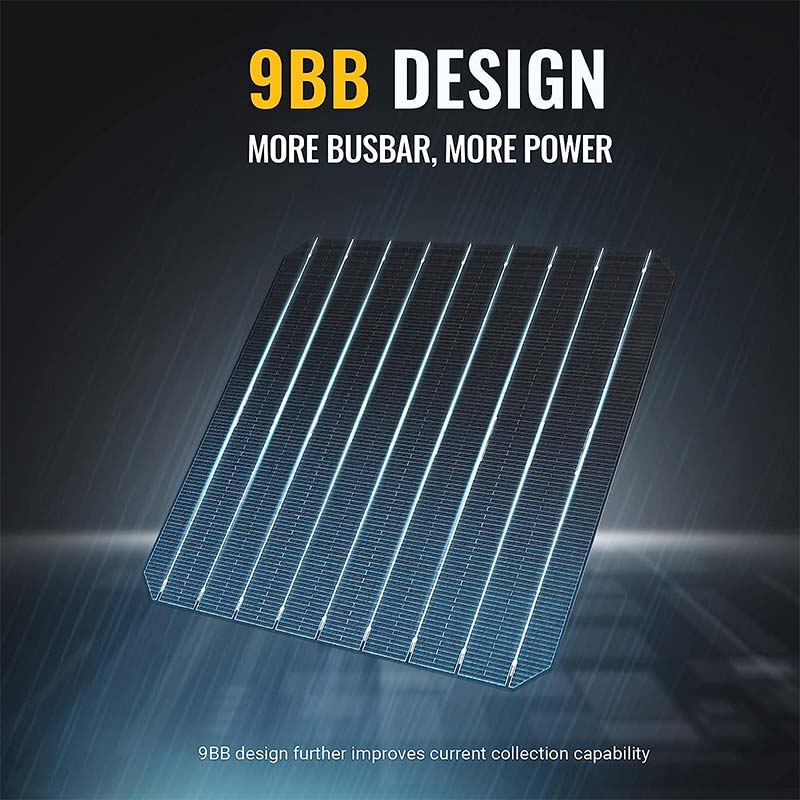

9BB Cell Design

More Busbar, More Power. BougeRV 200 watt solar panel uses the high-level 9BB cell design which has a 23% highest conversion rate. Makes the solar panel have a longer service life. Increase the cell receiving surface, thinner ribbon reduces the covered area by 22%. Also, it can charge a 12V battery or charge a 24/48V battery by wiring several solar panels in series.

Made of Class A Solar Cell

No visible defects and any microcracks, BougeRV 200 watt solar panel passes the strict EL test. While other class B and C cells will have obvious cracks. The grade of the cell determines the actual output of the solar panel.

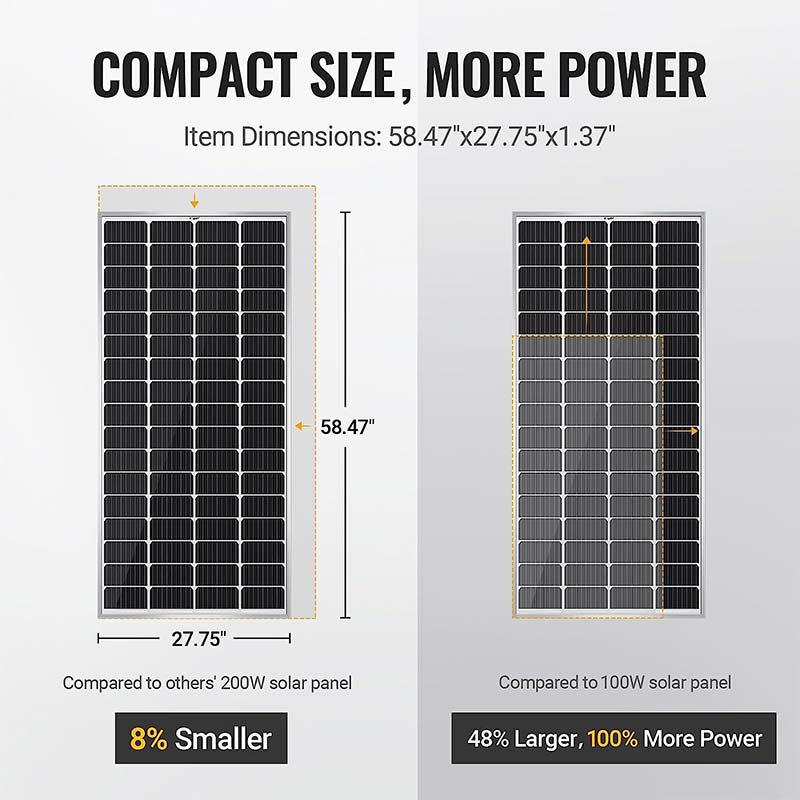

Compact Design, More Power

Compared to other 200W solar panels, BougeRV 9BB 200W solar panel is about 8% smaller but it could power the same or even more. Compared to other 100w solar panels, it's about 48% larger, but 100% more power, which allows you to install the solar panel on the limited roof of the RV/VAN/Trailer, so you can get more power in the limited space.

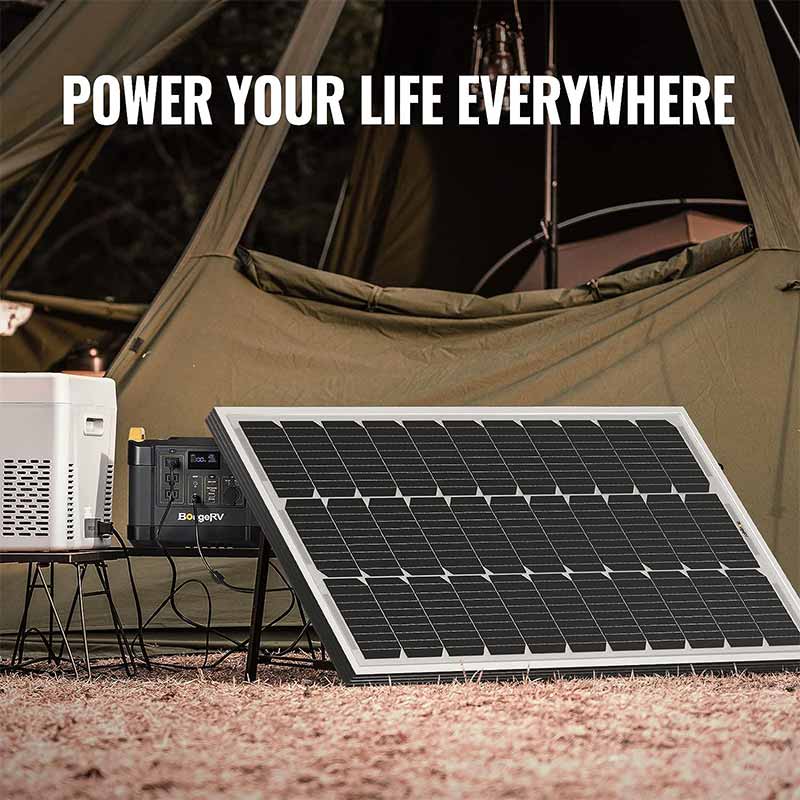

Suitable for multiple scenarios

Compatible with on-grid and off-grid inverters, the BougeRV 200W solar panel is suitable for powering the house or for outdoor use. Corrosion-resistant aluminum material can withstand the changing outdoor environment and prolong its service life. It is easy to use and mount, and sophisticated to use with your RVs, boats, and other outdoor equipment.

Durable & Long Lasting

BougeRV sturdy 200W solar panels can withstand high wind (2400 Pa) and snow loads (5400 Pa) and have excellent performance in low-light environments. Corrosion-resistant aluminum material can withstand the changing outdoor environment and prolong its service life.

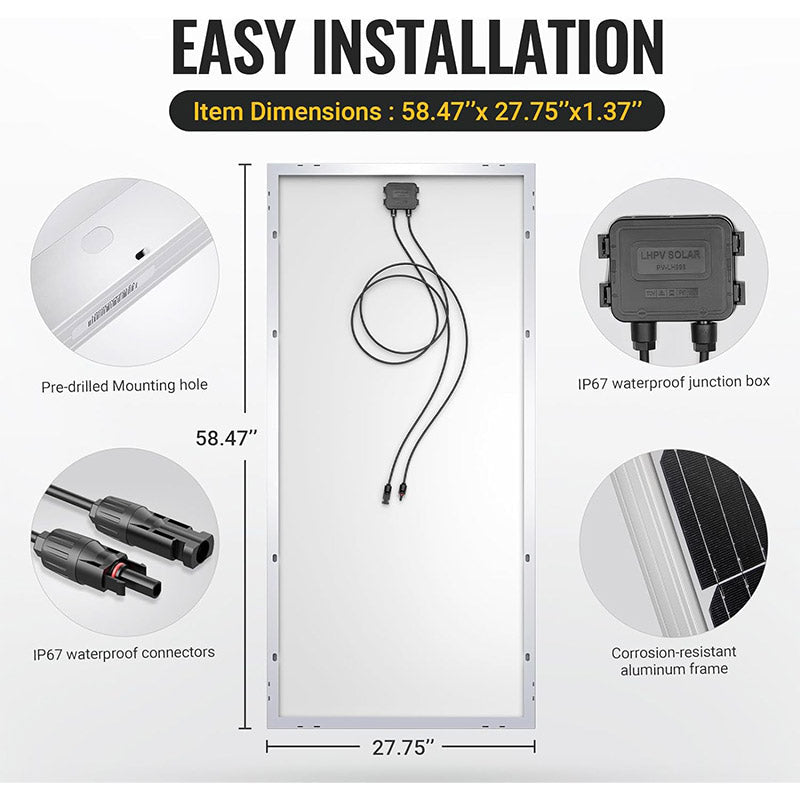

User Friendly & Easy Installation

IP67 Rated Waterproof Junction Box can isolate environmental particles and low-pressure water jets. Diodes are pre-installed in the junction box, with a pair of pre-attached 3ft Cable. Pre-drilled holes on the back of the panel allow you to quickly install solar panels without using heavy tools.

12 Years Product Warranty

BougeRV Official Website promises an 12 years product warranty and 25-years power warranty and lifetime warm-hearted service for you. Please contact us whenever you have any problem with BougeRV solar panel. We will provide you with a professional guide to building a solar system.

Product Specifications

Tips：Please confirm the dimensions of the 200W 9BB Solar panel you are purchasing and ensure that it is suitable for your needs.

SKU	ISE114	Model	200W SOLAR PANEL
Maximum Power (W)	200±5% W	Product Dimension (IN)	58.46x27.76x1.38 inches
Open Circuit Voltage Voc (V)	22.5±5% V	Net Weight (kg / lbs)	11kg / 24lb
Max Power Voltage Vmp (V)	19.1±5% V	Application Class	Class A
Max Power Current Imp (A)	10.99±5% A	Max Static Load (front)	2400 Pa
Short Circuit Current Isc (A)	12.21±5% A	Max Static Load (back)	2400pa
Solar Cells Efficiency	23%	Series Fuse Rating	15A
Product Certification /Standard	CE,ETL	Product Type	Solar Panel
Product Warranty	10 Years	Performance Warranty	25 years

SKU	ISE114	Model	200W SOLAR PANEL
Maximum Power (W)	200±5% W	Product Dimension (IN)	58.46x27.76x1.38 inches
Open Circuit Voltage Voc (V)	22.5±5% V	Net Weight (kg / lbs)	11kg / 24lb
Max Power Voltage Vmp (V)	19.1±5% V	Application Class	Class A
Max Power Current Imp (A)	10.99±5% A	Max Static Load (front)	2400 Pa
Short Circuit Current Isc (A)	12.21±5% A	Max Static Load (back)	2400pa
Solar Cells Efficiency	23%	Series Fuse Rating	15A
Product Certification /Standard	CE,ETL	Product Type	Solar Panel
Product Warranty	10 Years	Performance Warranty	25 years

SKU	ISE114
Maximum Power (W)	200±5% W
Product Dimension (IN)	58.46x27.76x1.38 inches
Open Circuit Voltage Voc (V)	22.5±5% V
Net Weight (kg / lbs)	11kg / 24lb
Max Power Voltage Vmp (V)	19.1±5% V
Application Class	Class A
Max Power Current Imp (A)	10.99±5% A
Max Static Load (front)	2400 Pa
Short Circuit Current Isc (A)	12.21±5% A
Max Static Load (back)	2400pa
Solar Cells Efficiency	23%
Series Fuse Rating	15A
Product Certification /Standard	CE,ETL
Product Warranty	10 Years
Performance Warranty	25 years

User Manual

Reviews

FAQ

A1: If you order two panels, they will come in two separate packages. BougeRV will provide you with a tracking number once they have been shipped out.

A2: Unfortunately, the 200 watt solar panel does not come with a Y-branch parallel connector. However, you can search for "Solar Y Branch Connector 1 to 3" on our website if you need one.

A3: Yes, the IP67 connector is waterproof.

A4: The advantages of 9BB solar cells are that they have less internal resistance loss than 5BB solar cells, can reduce the impact of micro-cracks, and have a thinner busbar and larger light-receiving area, resulting in more power output.

A5: The low output power of 200watt solar panels is mainly affected by low light intensity, unsuitable light angles, and shadow occlusion. To prevent shadows, adjust the solar panels and make them point directly at the sun during daily use, and clean the solar panel regularly to remove obstructions such as bird droppings, dust, and garbage.

A7: This 180W (200W) solar panel is larger than an ordinary 100W panel and has more solar cells. We developed this product with power output and the scene in mind, and we hope it meets your expectations. The output voltage of solar panels is affected by the light angle (vertical irradiation angle is the most efficient), light intensity (greater intensity results in higher output), and shadow exposure (larger shadows reduce panel output).

The amperage output of a 200 watt solar panel depends on the voltage rating of the panel. You can calculate by this formula: Amps = Watts / Volts. For example, if the panel has a voltage rating of 12 Volts, then the amperage output would be Amps = 200 Watts / 12 Volts = 16.67 Amps.

Yes, a 200 watt solar panel can run a refrigerator, but it depends on the size of your refrigerator. It may not be sufficient for a large family refrigerator. It can run a 12V mini fridge.

You can use a 200 watt solar panel to run a variety of small to medium-sized appliances and electronics such as laptops, LED lights, LCD TVs, coffee makers, a radio, a mini projector, and even a microwave.

Yes, you can mix 100 watt and 200 watt solar panels, but it may result in a decrease in productivity and energy production. It is recommended to use panels of the same wattage to optimize the performance of the solar system.

The physical size of a 200 watt solar panel can vary depending on the manufacturer and the specific model. The dimension of BougeRV 200 watt solar panel is 58.46x27.76x1.38 inches.
