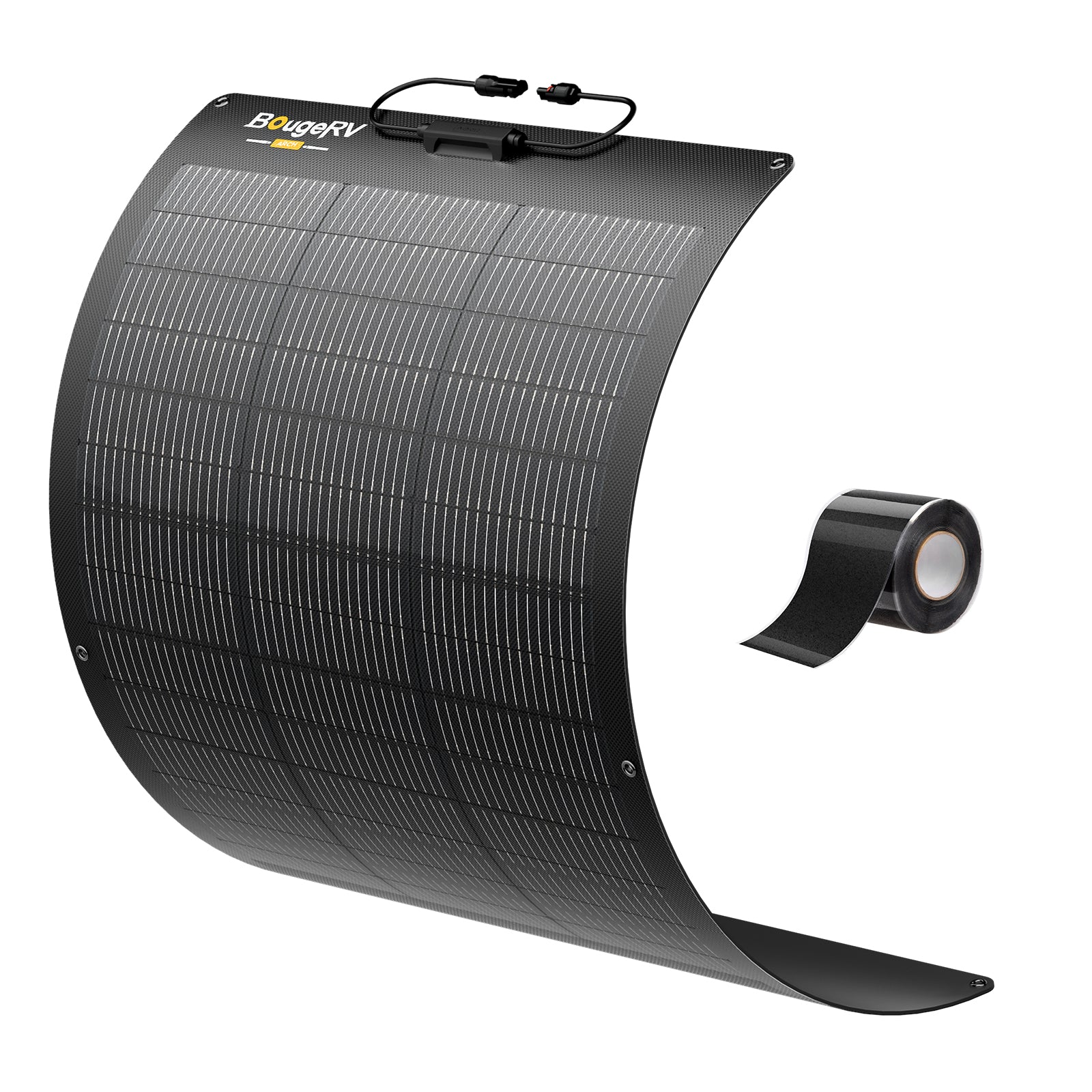

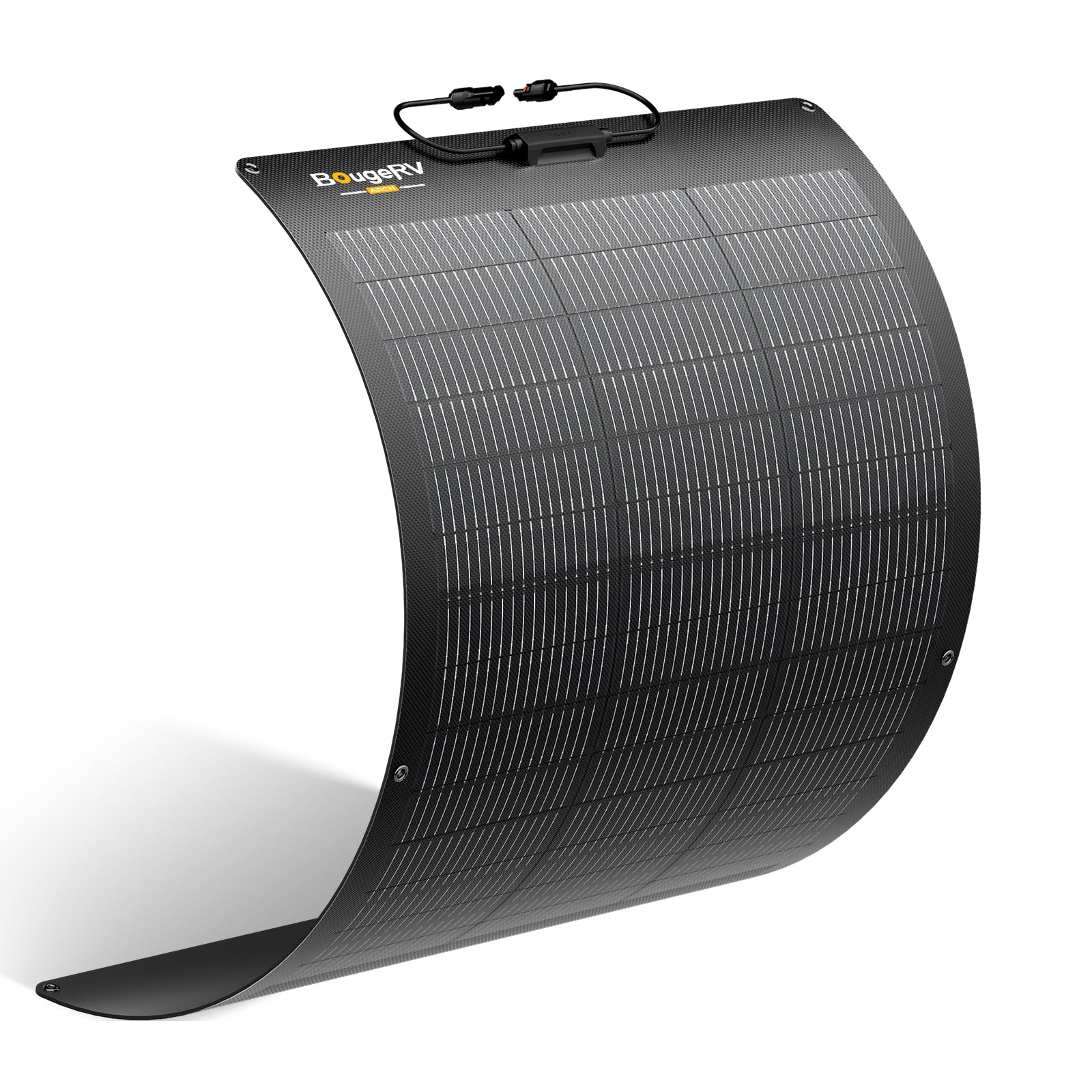

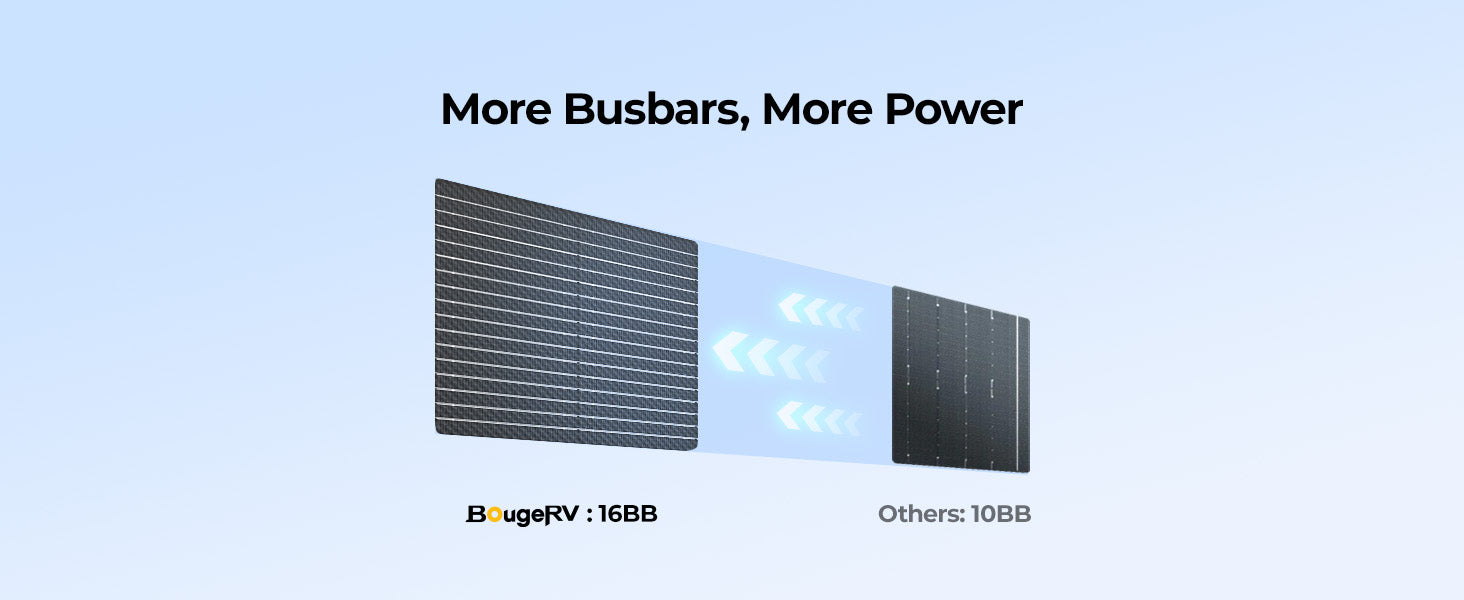

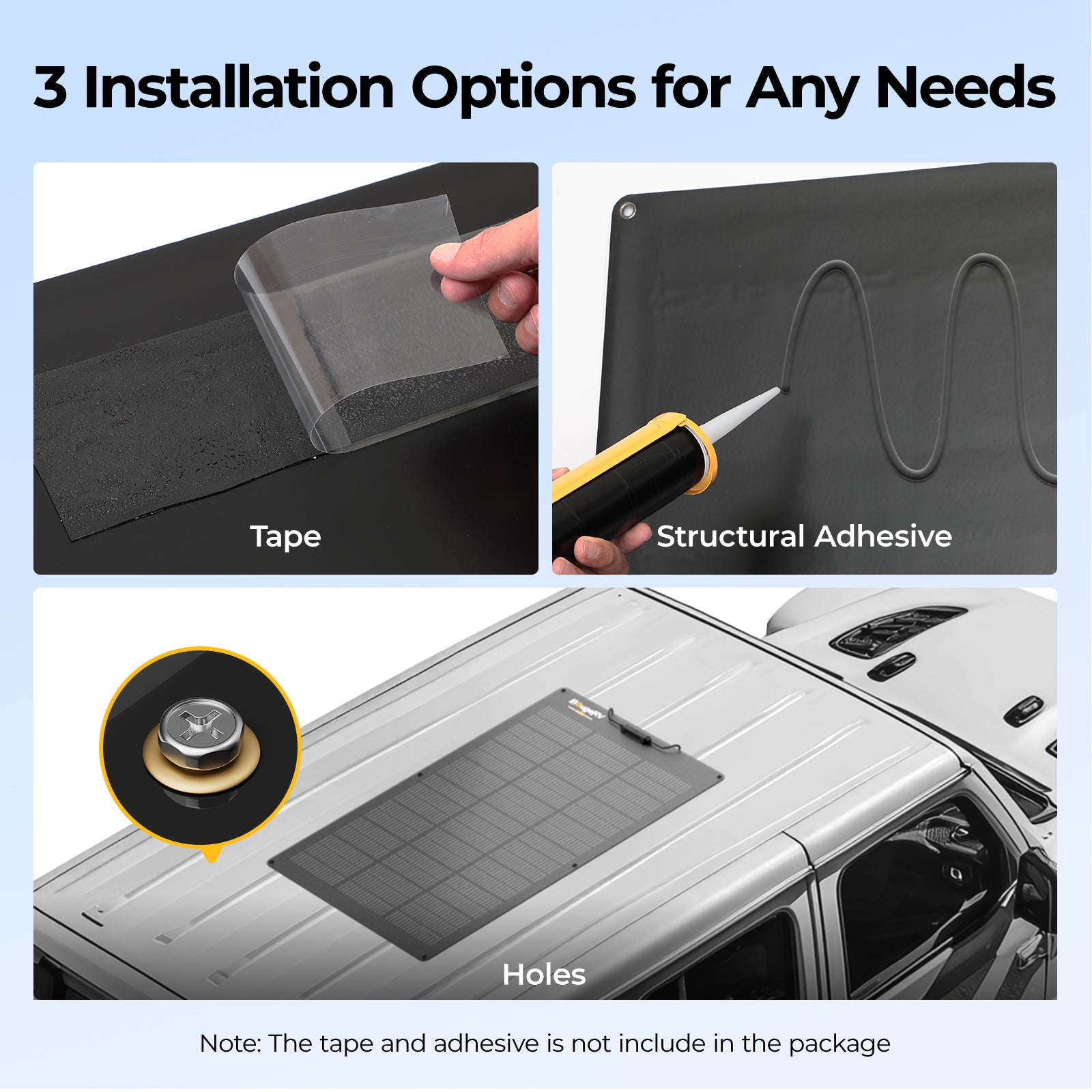

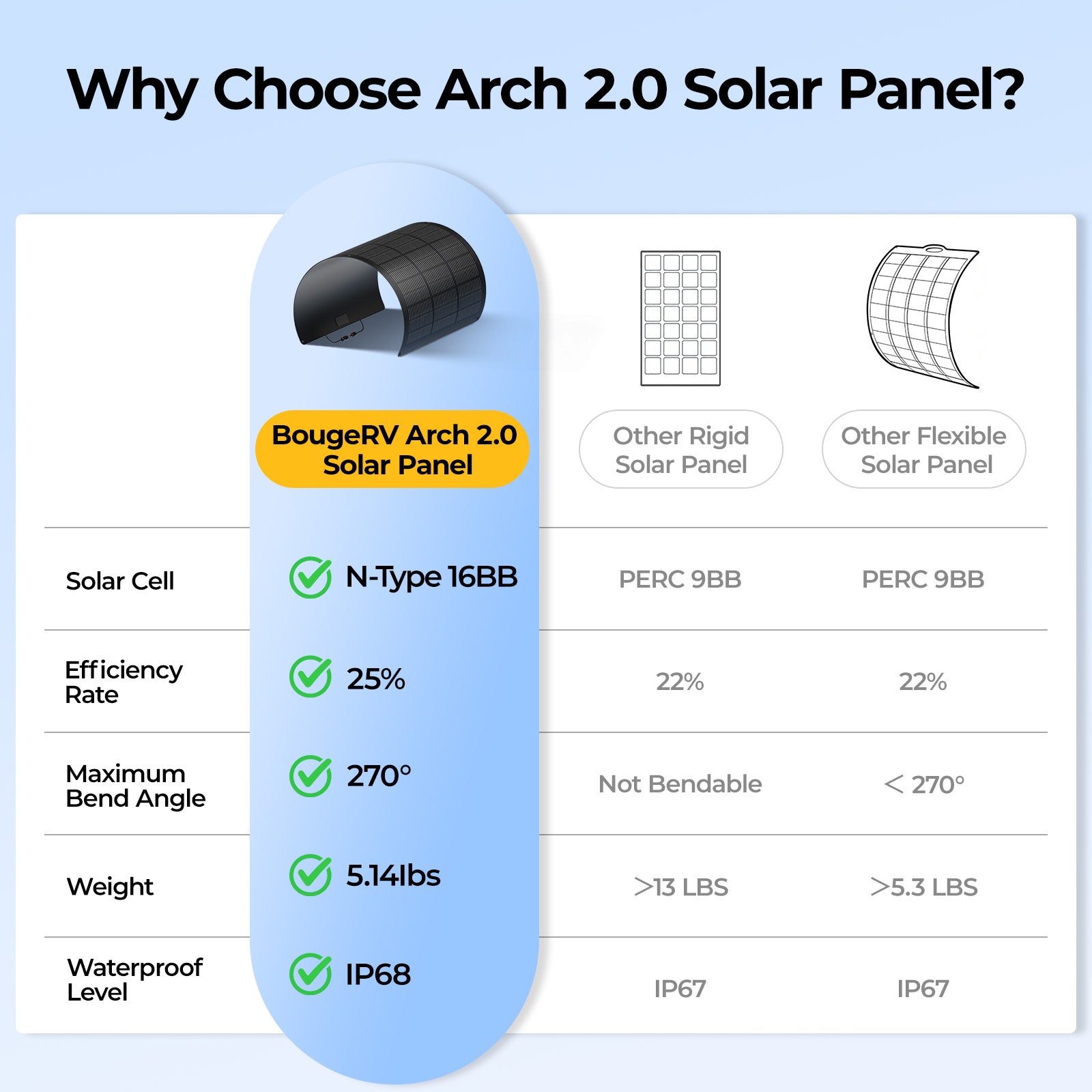

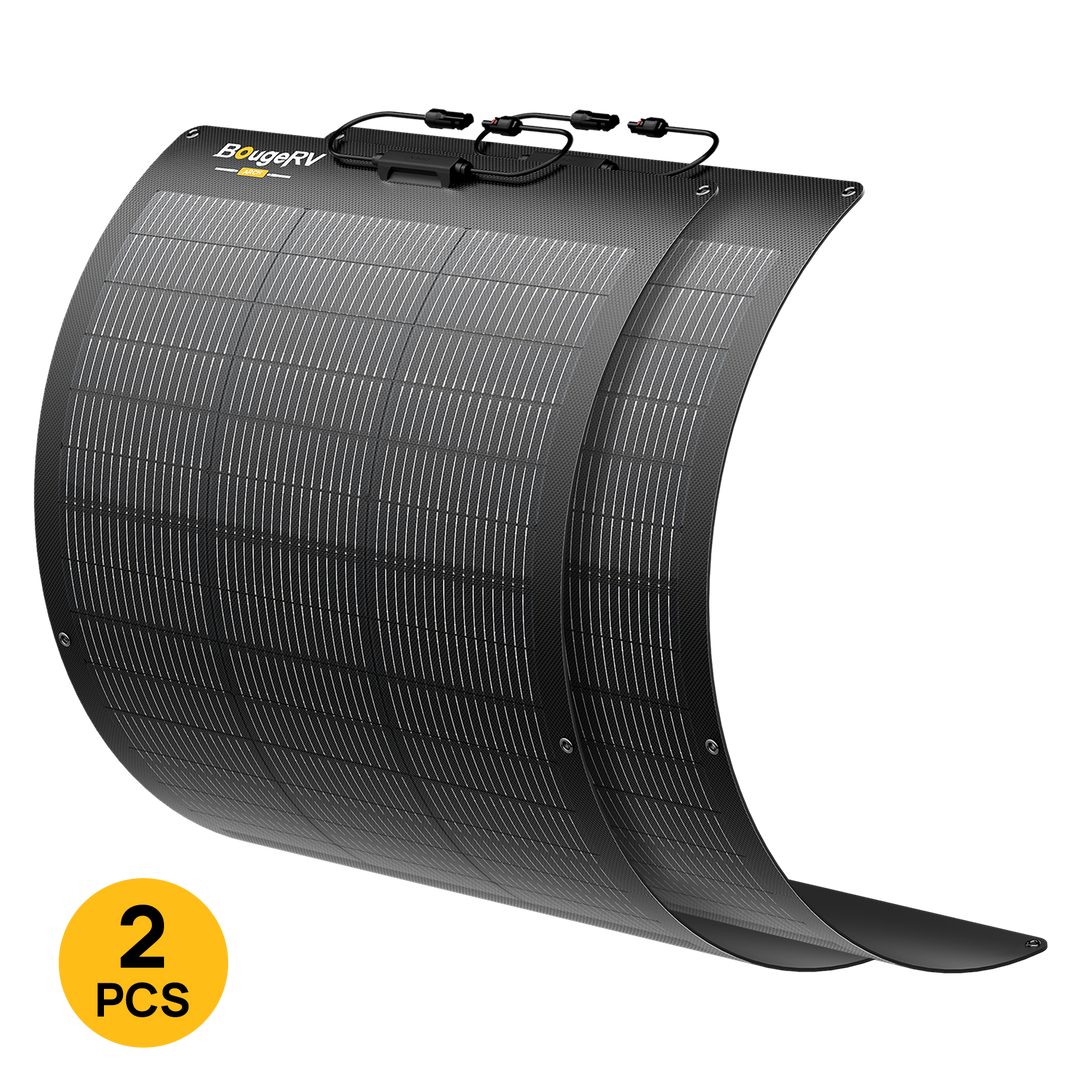

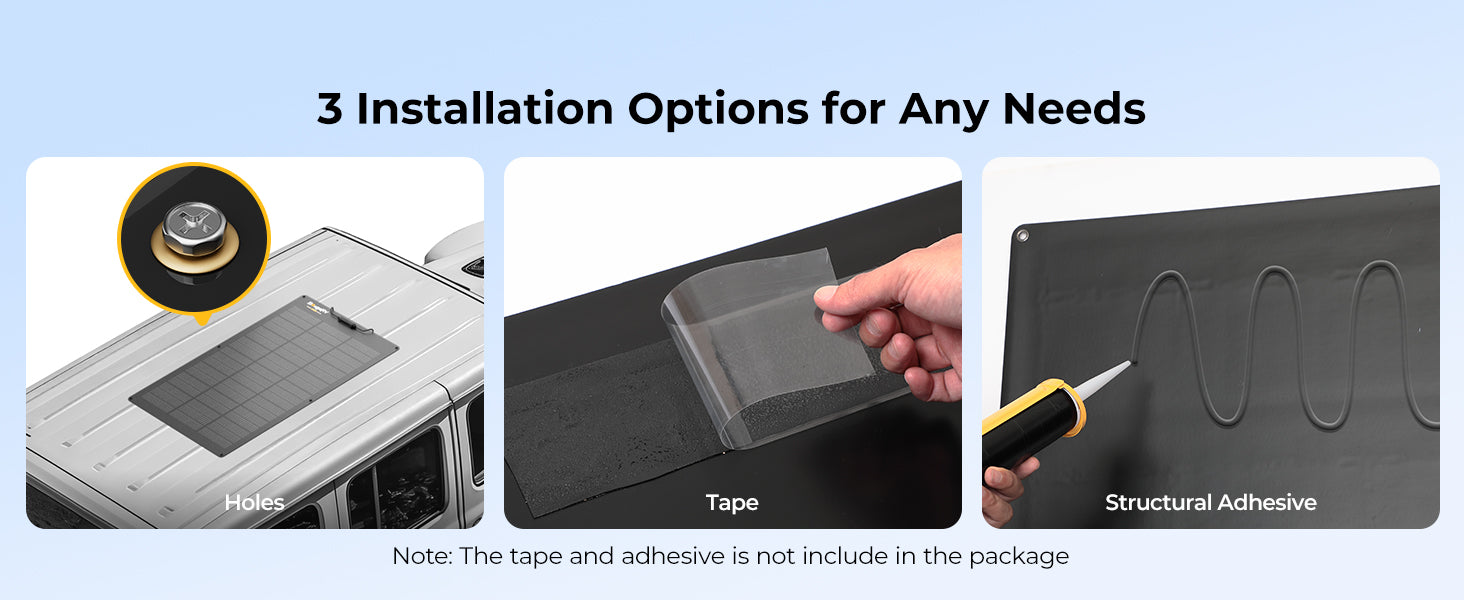

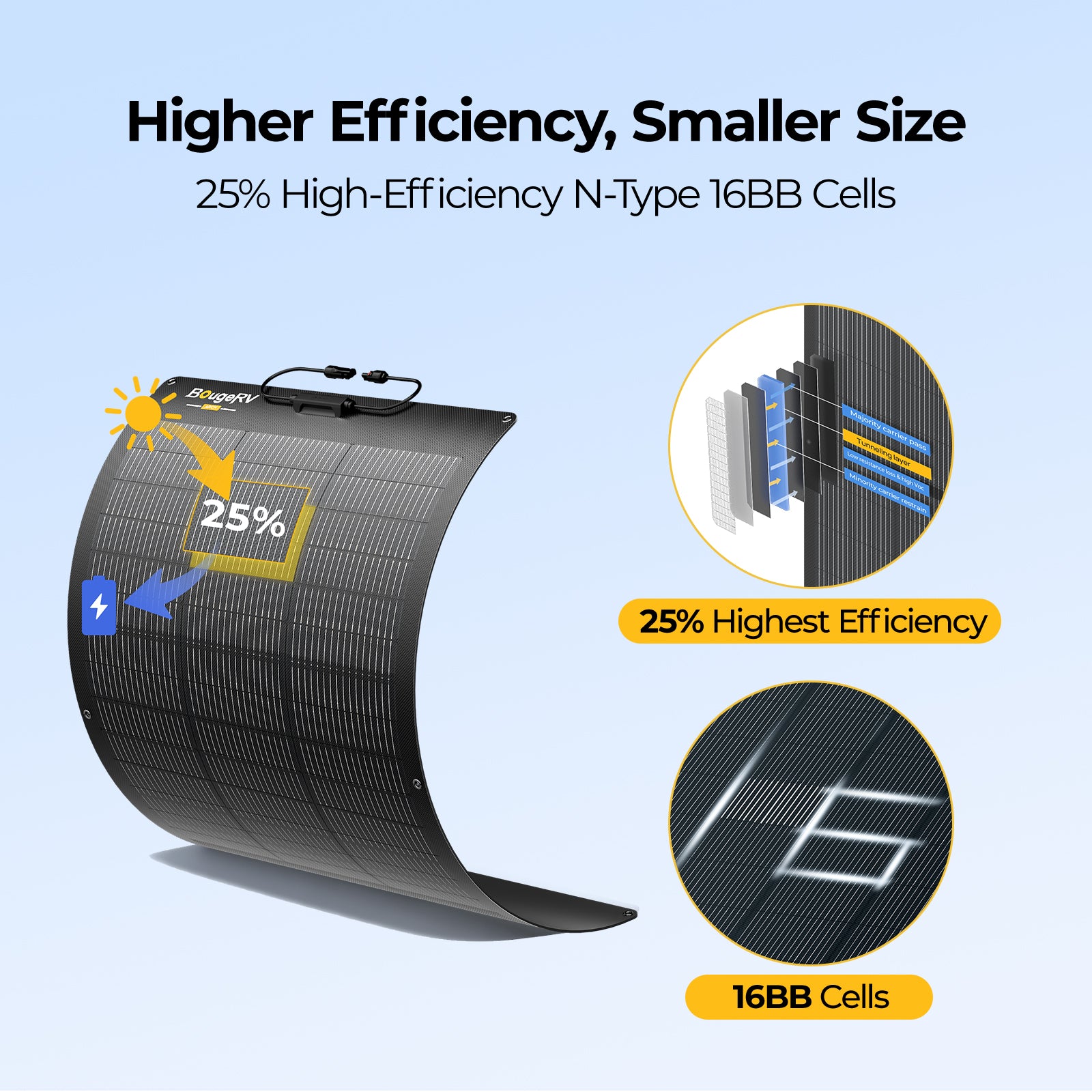

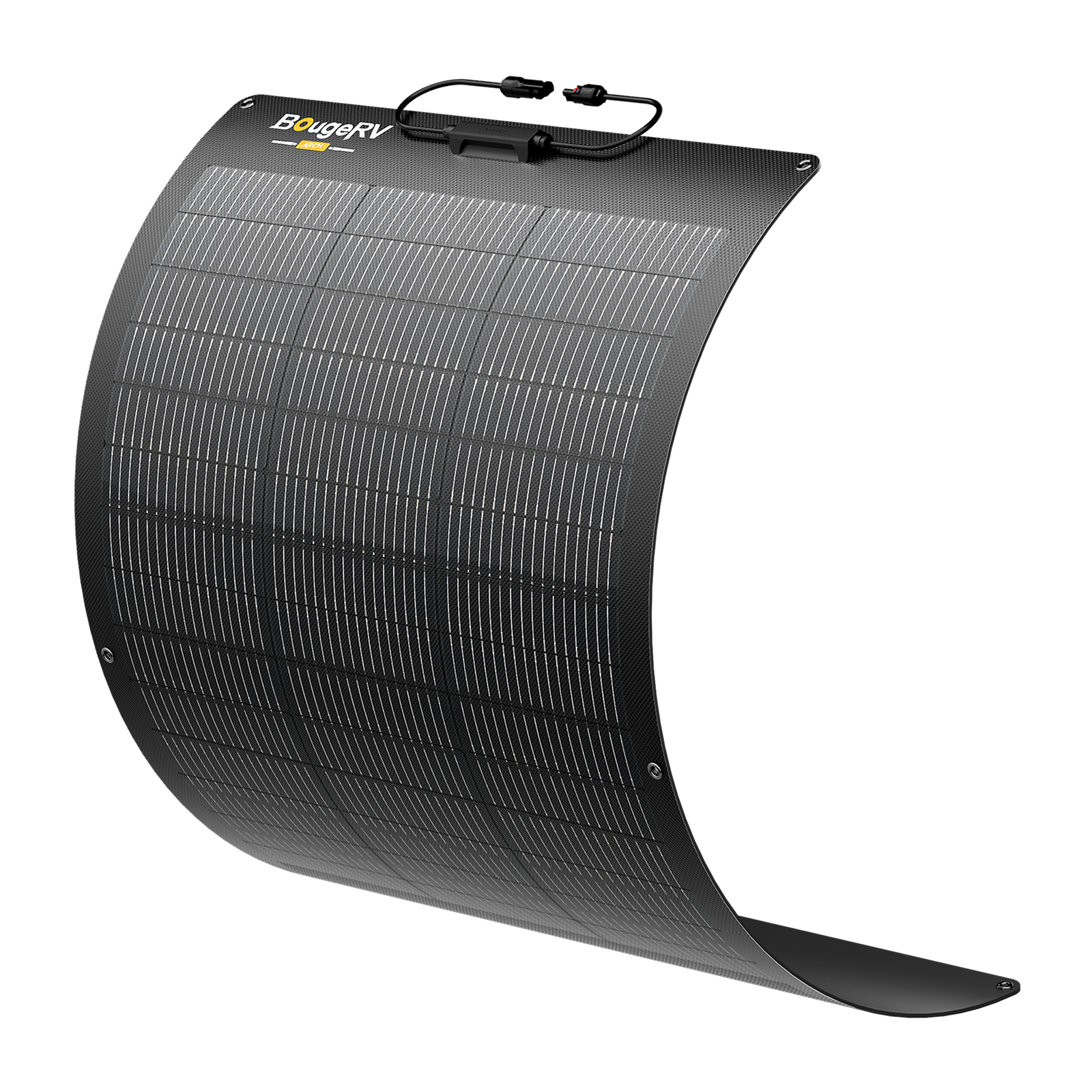

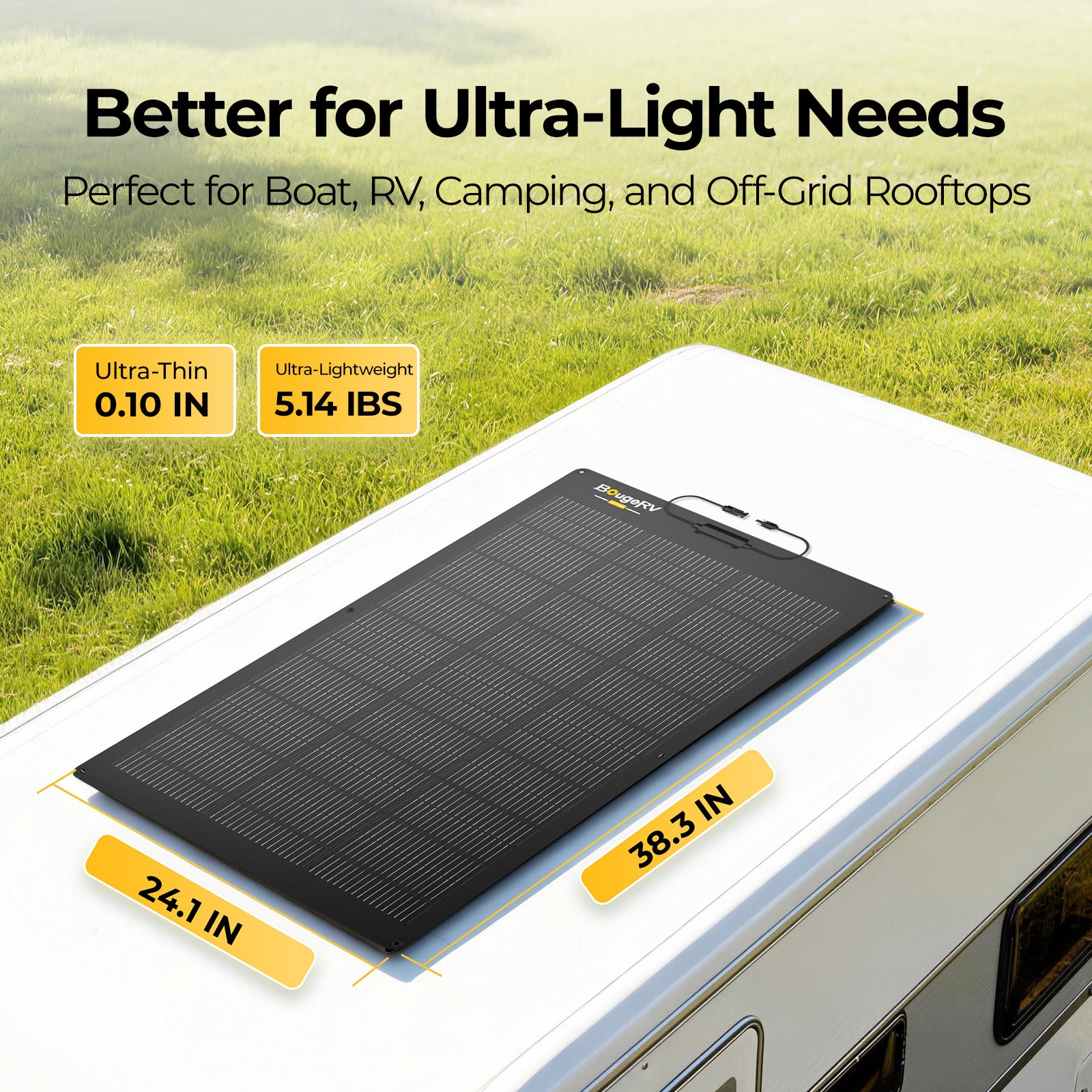

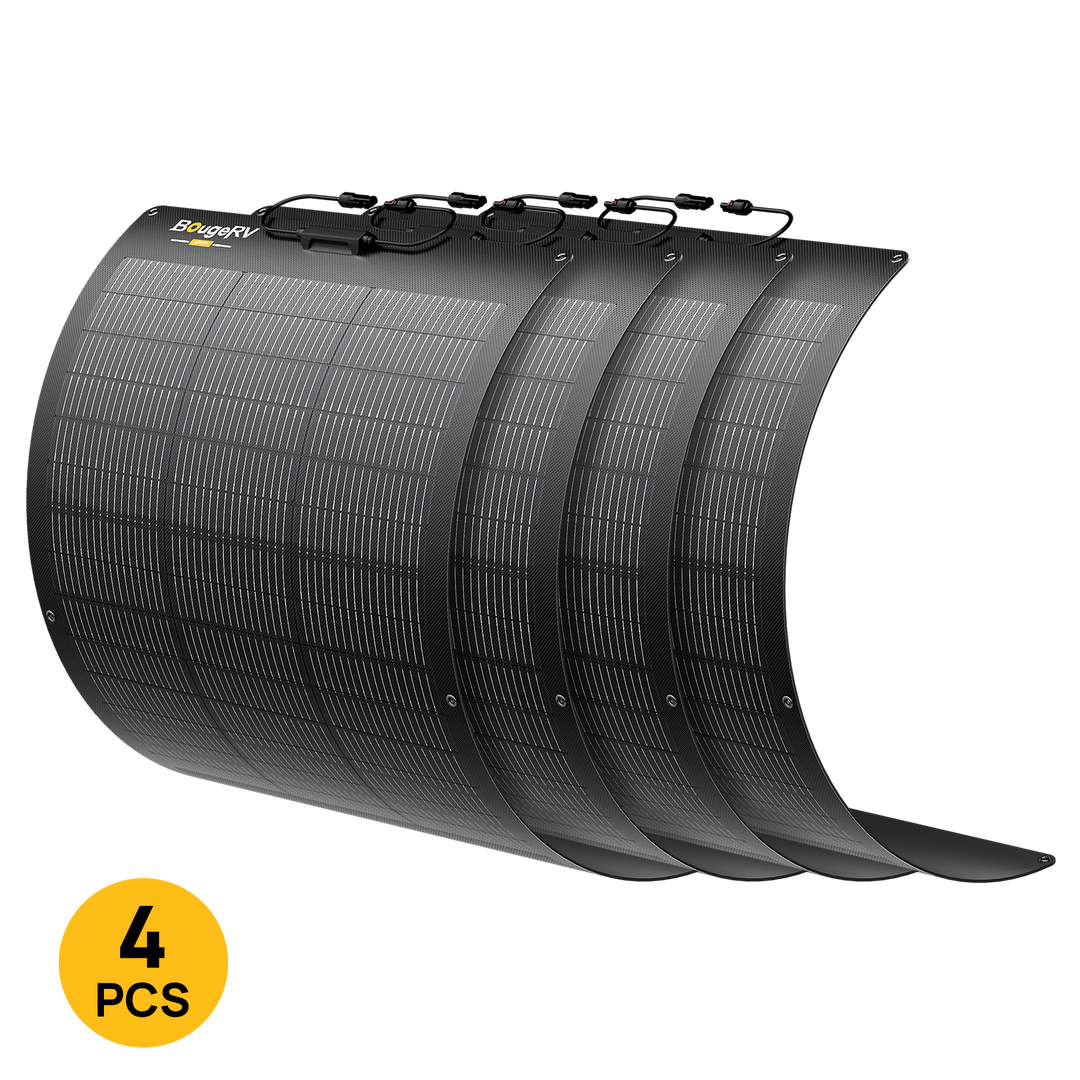

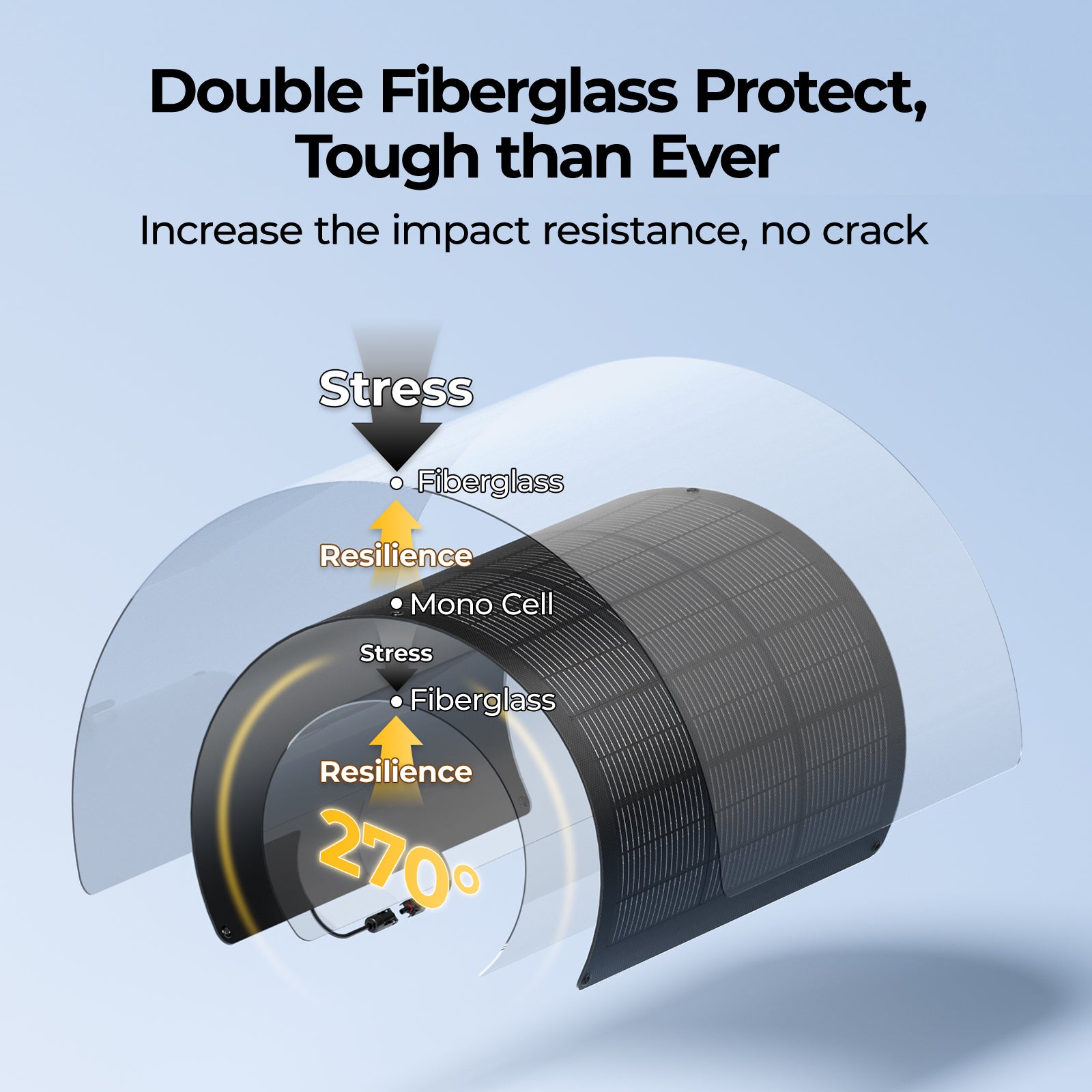

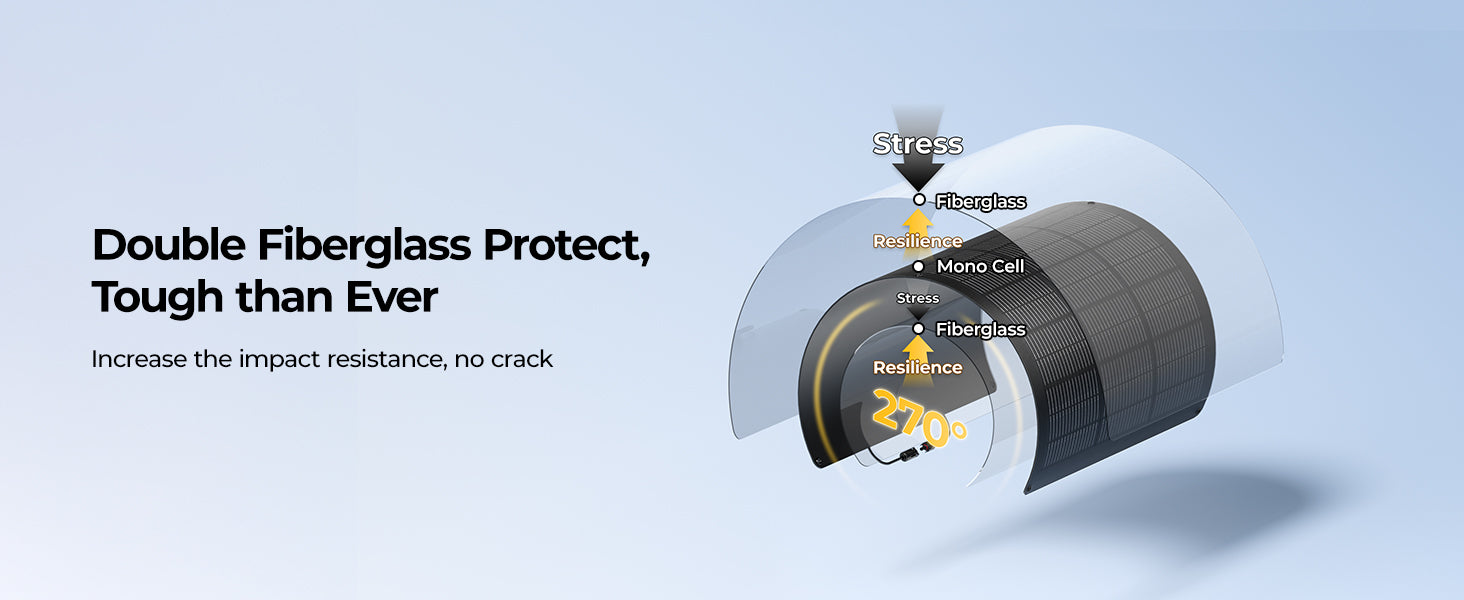

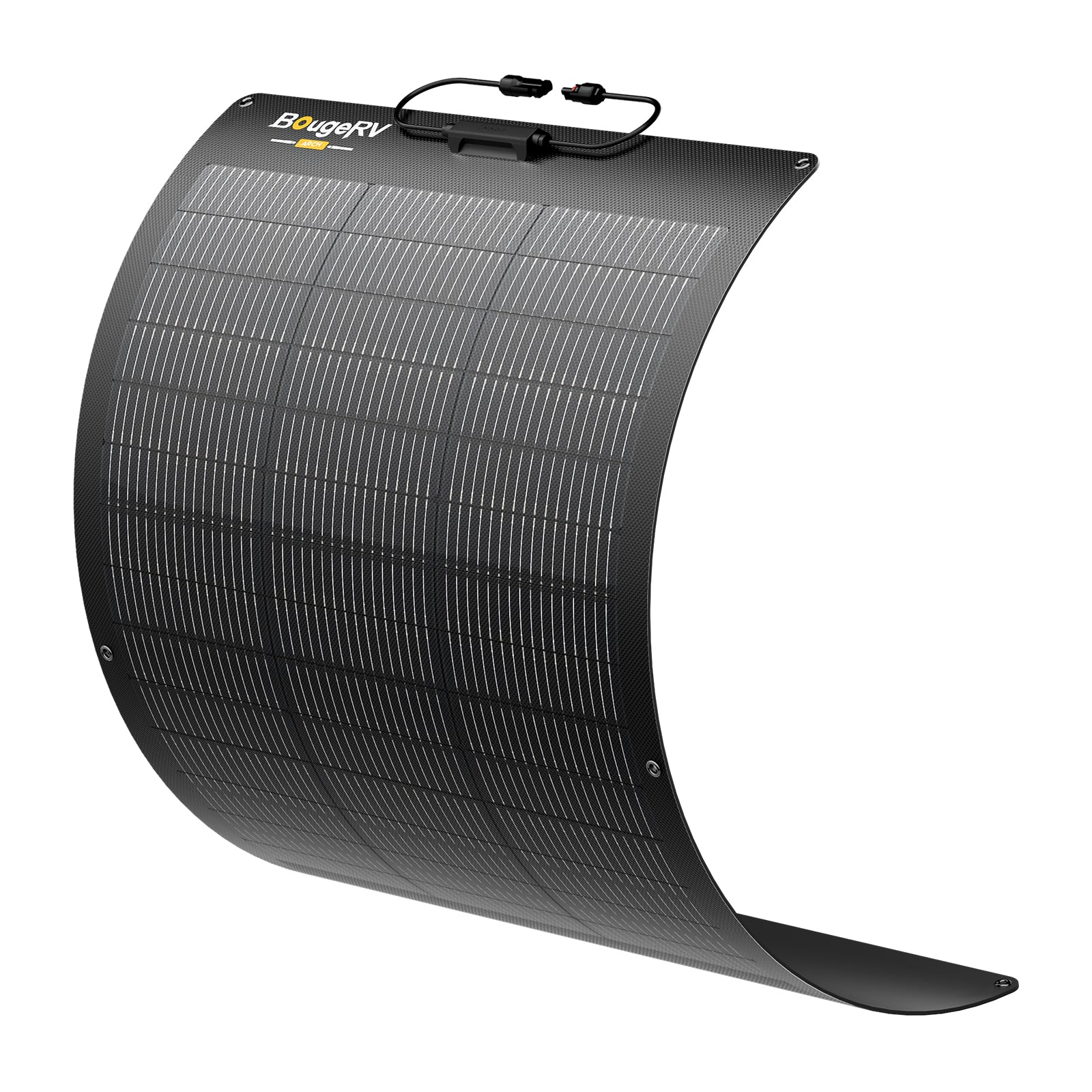

BougeRV Arch Plus 100W N-Type Fiberglass Flexible Solar Panel – the smart upgrade over the standard Arch. Featuring N-Type TOPCon cells (25% efficiency) and 16BB busbars, it delivers higher energy output and long-term reliability. Compact, lightweight, and bendable up to 270°, it installs easily on RVs, boats, or curved surfaces.

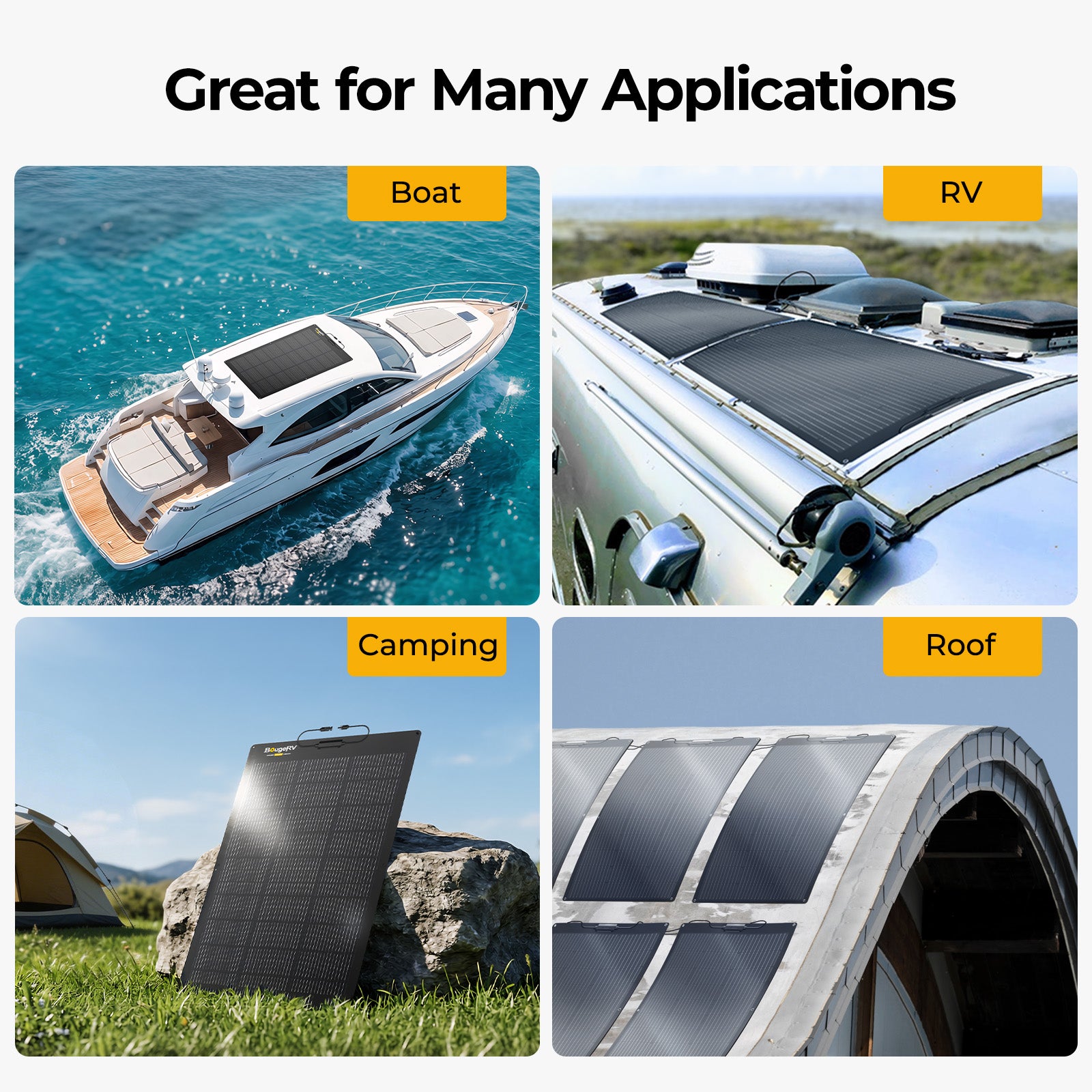

MULTIPURPOSE USE

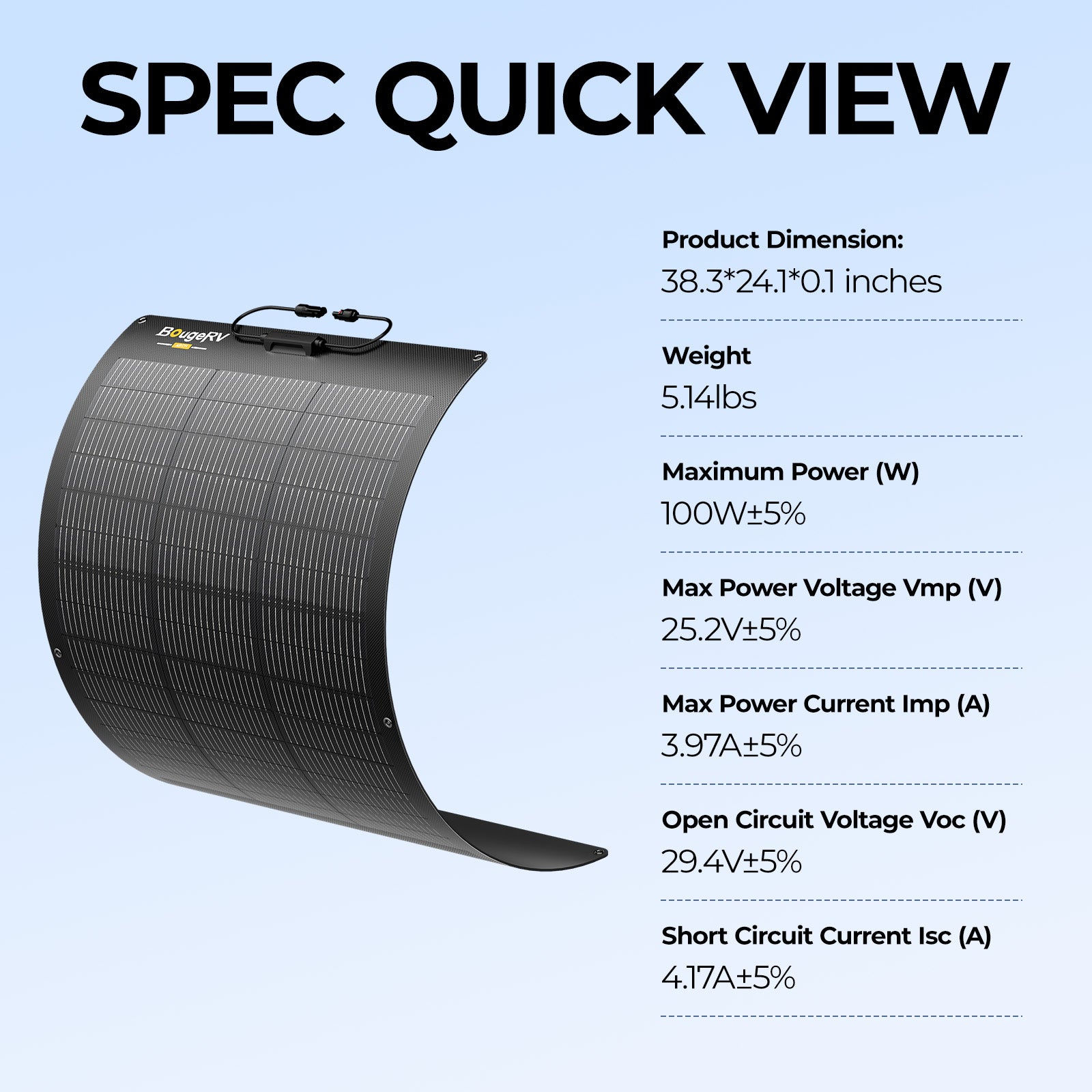

Product Specifications
| SKU | ISE214N | Version | Upgrade |
|---|---|---|---|
| Max Power (Pmax) | 100±5%W | Operating Temperature Limits |
-14℉ ~ +140℉ |
| Solar Cells Efficiency | 25% | Series Fuse Rating | 15A |
| Max. Power Voltage Vmp (V) | 25.2±5% V | Temperature Coefficient Pmax | -0.35%/K |
| Max. Power Current Imp (A) | 3.97±5% A | Temperature Coefficient Voc | -0.3%/K |
| Open Circuit Voltage Voc (V) | 29.4±5% V | Temperature Coefficient Isc | +0.048%/K |
| Short Circuit Current (Isc) | 4.17±5% A | Dimensions | 38.3*24*37.2 inches |
| Power output warranty | 25 years 80% output warranty | Weight | 5.1 lbs |
| Material & workmanship warranty | 5 Years | Product Type | Curved Solar Panels |
| SKU | ISE214N | Version | Upgrade |
|---|---|---|---|
| Max Power (Pmax) | 100±5%W | Operating Temperature Limits |
-14℉ ~ +140℉ |
| Solar Cells Efficiency | 25% | Series Fuse Rating | 15A |
| Max. Power Voltage Vmp (V) | 25.2±5% V | Temperature Coefficient Pmax | -0.35%/K |
| Max. Power Current Imp (A) | 3.97±5% A | Temperature Coefficient Voc | -0.3%/K |
| Open Circuit Voltage Voc (V) | 29.4±5% V | Temperature Coefficient Isc | +0.048%/K |
| Short Circuit Current (Isc) | 4.17±5% A | Dimensions | 38.3*24*37.2 inches |
| Power output warranty | 25 years 80% output warranty | Weight | 5.1 lbs |
| Material & workmanship warranty | 5 Years | Product Type | Curved Solar Panels |
