N-Type TOPCon 16BB 200 Watt Bifacial Solar Panel

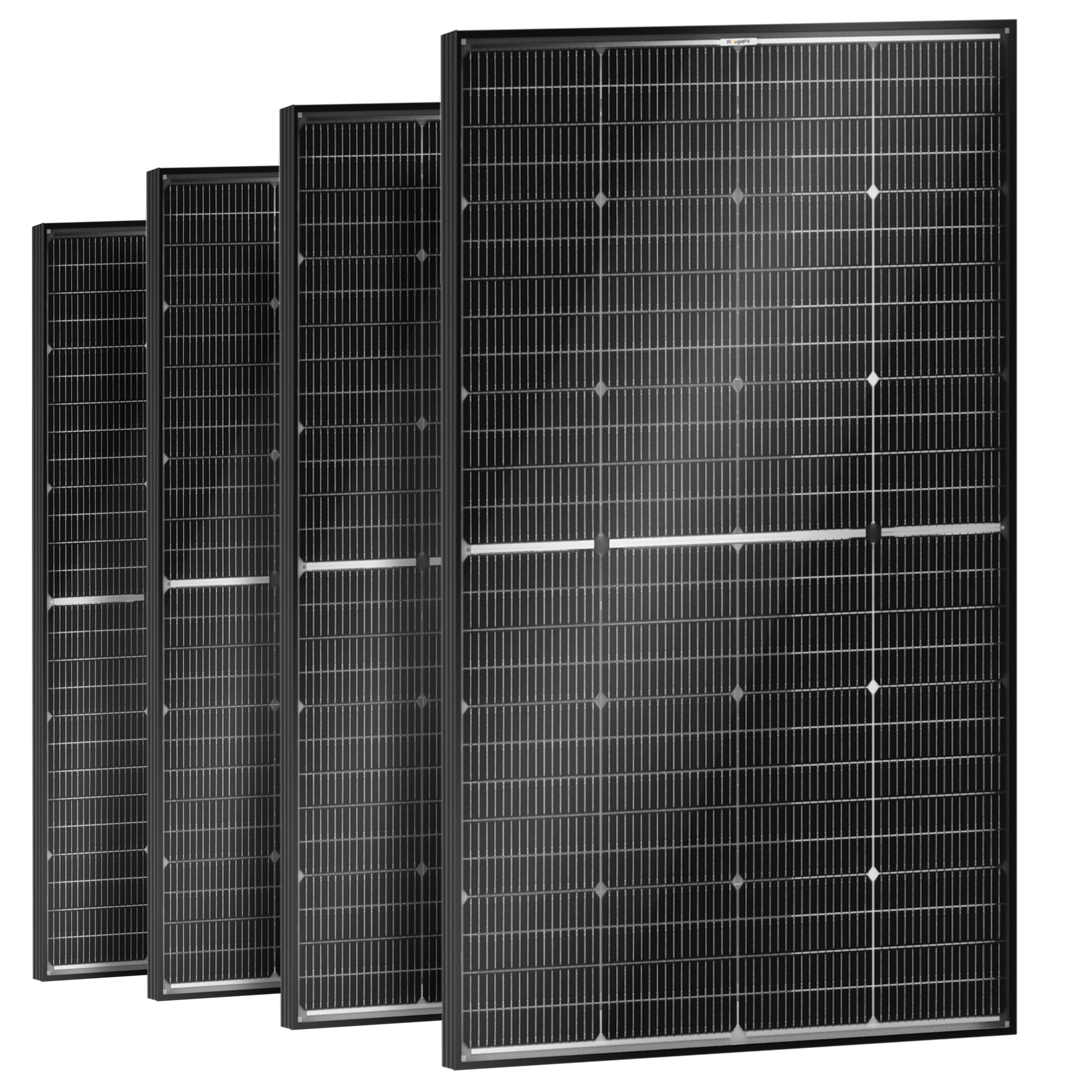

Name: BougeRV 16BB N-Type 800W(4x200W) Bifacial Solar Panel
Brand: BougeRV Canada
SKU: CAISE237-4
Price: 1639.99 CAD
Availability: OutOfStock

C$1,639.99

Experience the pinnacle of solar innovation with BougeRV's latest technology, the 16BB Solar Panel. This 800-watt solar panel uses premium N-type TOPCon cells for superior efficiency and durability. Suitable for 12V~24V photovoltaic systems, it's perfect for a variety of applications. Whether you're outfitting an RV, yacht, or home, harness solar energy with BougeRV".

Product Specifications

SKU	ISE237	Model	200W 24V SOLAR PANEL
Maximum Power (W)	200±5% W	Product Dimension (IN)	50.67x30.20x1.38 inches
Open Circuit Voltage Voc (V)	36.4±5% V	Series fuse rating	15A
Max Power Voltage Vmp (V)	31.7±5% V	Application Class	Class A
Max Power Current Imp (A)	6.3±5% A	Max Static Load (front)	2400 Pa
Short Circuit Current Isc (A)	6.6±5% A	Max Static Load (back)	2400pa
Solar Cells Efficiency	25%	Max.system voltage(V)	1000V DC
Weight	22.5lb	Product Type	Bifacial Solar Panel
Product Warranty	10 Years	Performance Warranty	30 years

SKU	ISE237	Model	200W 24V SOLAR PANEL
Maximum Power (W)	200±5% W	Product Dimension (IN)	50.67x30.20x1.38 inches
Open Circuit Voltage Voc (V)	36.4±5% V	Series fuse rating	15A
Max Power Voltage Vmp (V)	31.7±5% V	Application Class	Class A
Max Power Current Imp (A)	6.3±5% A	Max Static Load (front)	2400 Pa
Short Circuit Current Isc (A)	6.6±5% A	Max Static Load (back)	2400pa
Solar Cells Efficiency	25%	Max.system voltage(V)	1000V DC
Weight	22.5lb	Product Type	Bifacial Solar Panel
Product Warranty	10 Years	Performance Warranty	30 years

SKU	ISE237
Maximum Power (W)	200±5% W
Open Circuit Voltage Voc (V)	36.4±5% V
Max Power Voltage Vmp (V)	31.7±5% V
Max Power Current Imp (A)	6.3±5% A
Short Circuit Current Isc (A)	6.6±5% A
Solar Cells Efficiency	25%
Weight	22.5lb
Product Warranty	10 Years
Performance Warranty	30 years
Product Dimension (IN)	50.67x30.20x1.38 inches
Series fuse rating	15A
Max Static Load (front)	2400 Pa
Max Static Load (back)	2400pa
Product Type	Bifacial Solar Panel

User Manual

Reviews

FAQ

Unlike traditional solar panels that only have one active side, a bifacial solar panel is a type of photovoltaic panel that is designed to capture sunlight from both sides, front and rear.

Bifacial solar panels are more efficient and generate more energy compared to monofacial solar panels, because they can produce power from both sides of the panel.

Yes, 200 watt bifacial solar panels are worth it. Bifacial solar panels have the ability to generate electricity from both sides, utilizing direct sunlight, refracted sunlight, and diffuse sunlight. This can increase their overall energy production.

If you order two 200 watt bifacial solar panels, they will come in two separate packages. BougeRV will provide you with a tracking number once they have been shipped out.

We suggest using a tilt mount bracket with these 200 watt bifacial solar panels, as they can absorb sunlight efficiently regardless of the sun's movement, eliminating the need for constant adjustment.

N-type TOPCon solar panels use a thin tunnel oxide layer and passivated contacts on n-type silicon wafers to reduce electron recombination, leading to higher efficiency and better performance in low-light conditions. This design enhances energy conversion and durability compared to traditional panels.

Yes, Topcon solar panels typically have higher efficiency rates compared to traditional polycrystalline and monocrystalline panels, making them a preferred choice for maximizing energy output.
