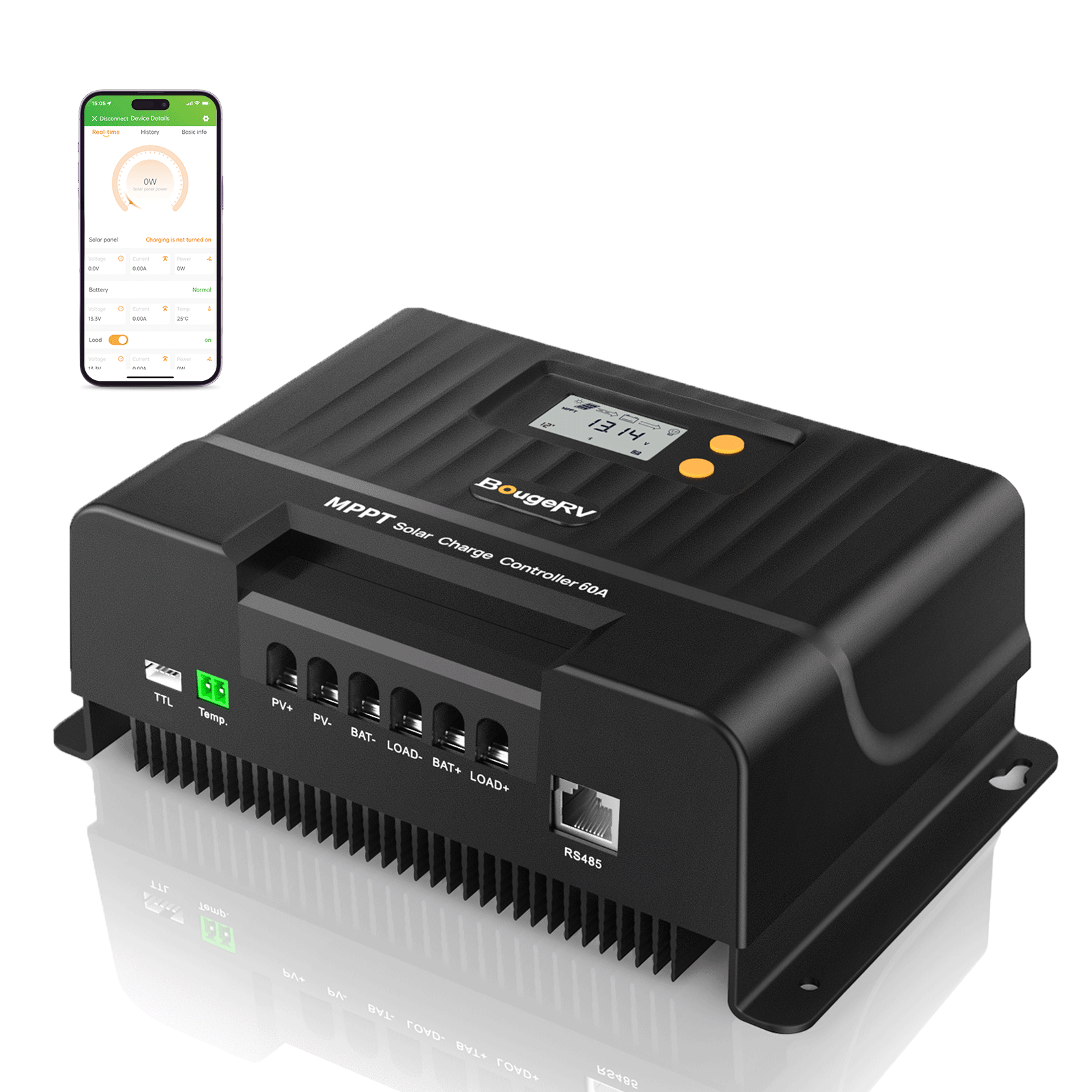

60 Amp MPPT Solar Charge Controller with Bluetooth

Name: 60A MPPT Solar Charge Controller with Bluetooth 12V/24V
Brand: BougeRV Canada
SKU: CAISE198
Price: 191.99 CAD
Availability: InStock

60A MPPT Solar Charge Controller with Bluetooth 12V/24V-2

60A MPPT Solar Charge Controller with Bluetooth 12V/24V-3

60A MPPT Solar Charge Controller with Bluetooth 12V/24V-4

60A MPPT Solar Charge Controller with Bluetooth 12V/24V-5

60A MPPT Solar Charge Controller with Bluetooth 12V/24V-6

60A MPPT Solar Charge Controller with Bluetooth 12V/24V-7

60A MPPT Solar Charge Controller with Bluetooth 12V/24V-8

(1)

C$191.99 C$319.99 Save C$128.00

This 60A MPPT solar charge controller is easy to use with remote APP control and compatible with multiple battery types. It has high tracking efficiency of up to 99.9% and customizable charging current for optimal performance. With 17 load operating modes, it can handle capacitive and inductive loads. Safety is ensured with six protections and CE and RoHS certification. Experience the convenience and efficiency of BougeRV's 60A MPPT solar charge controller today!

HIGHLIGHTS

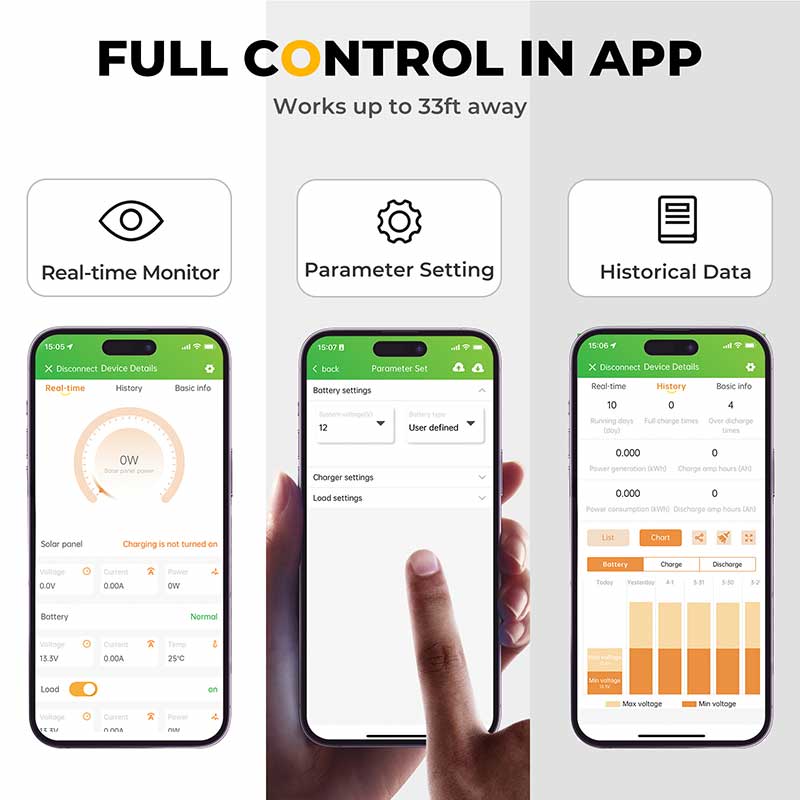

Remote APP Control

Please make sure that the Bluetooth is on before pairing your phone with the controller.

Scan the code on the user manual.
Make sure the battery type and system voltage setting on the controller matches your battery (batteries) specification.
Please send your battery specification to us if you have any questions about using BougeRV MPPT solar charge controller.

UNIVERSAL COMPATIBILITY

Support multiple battery types for 12v or 24v, SLD, GEL, FLD, LiFePO4, and user-defined battery. If your battery has been over-discharged, this battery regulator can help you activate your battery.

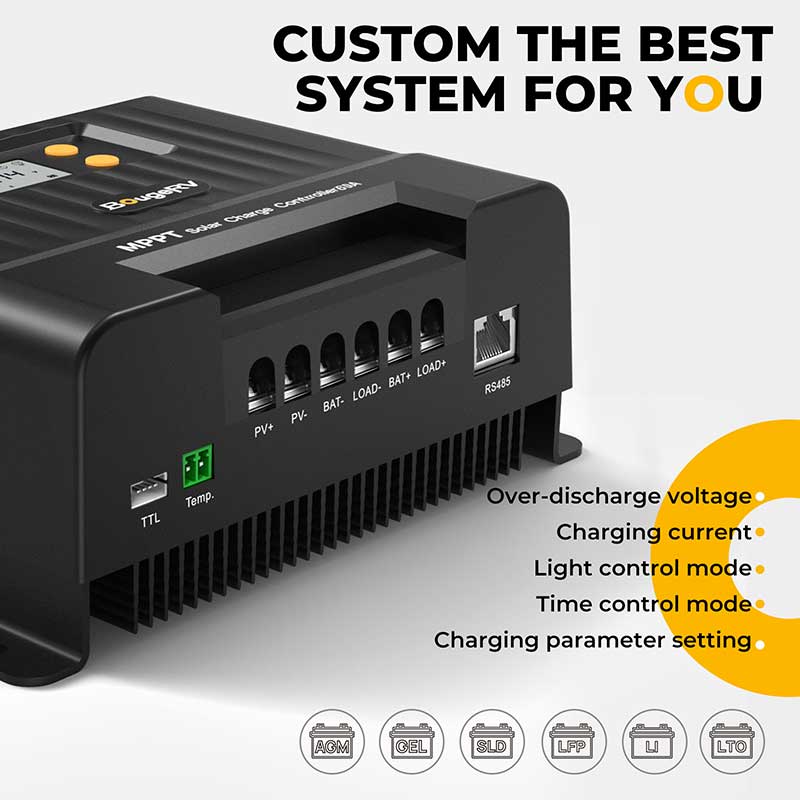

CUSTOM SYSTEM

It is able to modify the charging current for your battery, and the solar panel charge controller features 17 load operating modes, and can handle capacitive loads and inductive loads.

600-3.jpg__PID:825ac9a6-408d-47f9-a33e-b1d756047449

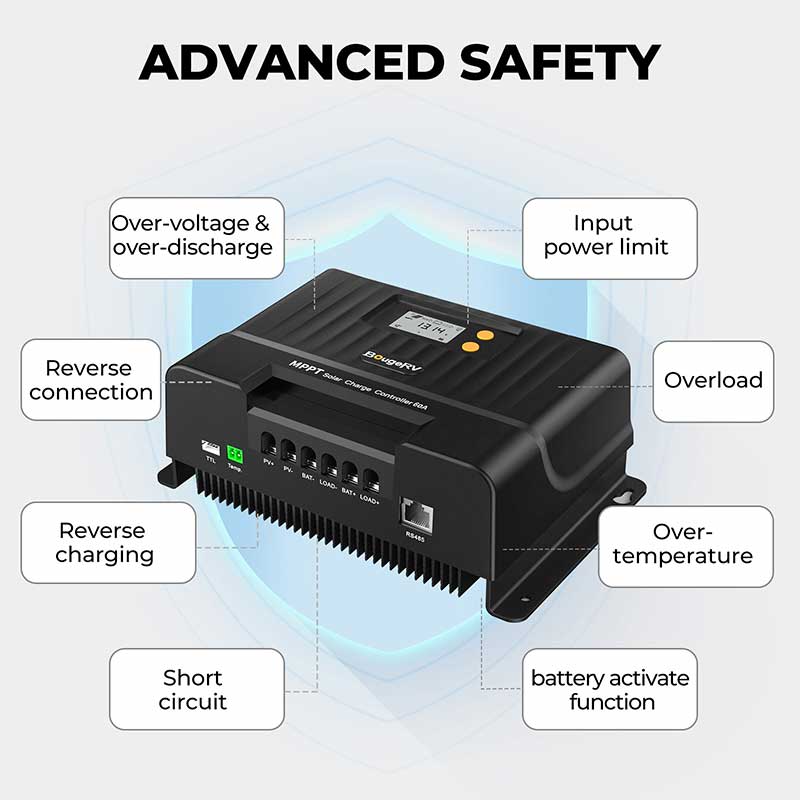

ACTIVE SHIELD

Certified by CE and RoHS. With 6 protections, over-temperature, open-circuit, short-circuit, overload, polarity reverse prevention circuit, flow backwards of current protections. BougeRV MPPT solar charge controller features with dual MOS circuit to prevent the reverse current and to reduce the heat in operation. Maintain your battery all the time. With a quality aluminum radiator and high-temperature derating treatment, it can work efficiently in various conditions.

QUALITY AND WARRANTY

Adopt MPPT with tracking efficiency up to 99.9%, BougeRV MPPT solar charge controller supports full-power charging and discharging at one time. We offer 18 months warranty and lifetime tech support from the date of purchase.

Product Specifications

SKU	ISE198	Product Type	Solar Charge Controller
System Voltage	12V/24V	Battery Type	LiFePO4, SLD, GEL, FLD, AGM, User Defined
Rated Charging Current	60A	Grounding Type	Common Negative
Rated Load Current	20A	Operating Temperature Range	Operating Temperature Range
Max Solar Input Power	900W/12V; 1800W/24V	Protection Grade	IP34
Max Solar Input Voltage	100V (95V protection, 90V recovery)	Data Storage	Save the last 200 days of historical data
CC Operating Voltage Range	(Battery voltage +2V)~72V	Dimension	10.27L7.32W3.22H inches
No Load Loss	≤10mA	Weight	5.29 lbs

SKU	ISE198	Product Type	Solar Charge Controller
System Voltage	12V/24V	Battery Type	LiFePO4, SLD, GEL, FLD, AGM, User Defined
Rated Charging Current	60A	Grounding Type	Common Negative
Rated Load Current	20A	Operating Temperature Range	Operating Temperature Range
Max Solar Input Power	900W/12V; 1800W/24V	Protection Grade	IP34
Max Solar Input Voltage	100V (95V protection, 90V recovery)	Data Storage	Save the last 200 days of historical data
CC Operating Voltage Range	(Battery voltage +2V)~72V	Dimension	10.27L7.32W3.22H inches
No Load Loss	≤10mA	Weight	5.29 lbs

SKU	ISE198
System Voltage	12V/24V
Rated Charging Current	60A
Rated Load Current	20A
Max Solar Input Power	900W/12V; 1800W/24V
Max Solar Input Voltage	100V (95V protection, 90V recovery)
CC Operating Voltage Range	(Battery voltage +2V)~72V
No Load Loss	≤10mA
Battery Type	LiFePO4, SLD, GEL, FLD, AGM, User Defined
Grounding Type	Common Negative
Operating Temperature Range	Operating Temperature Range
Protection Grade	IP34
Data Storage	Save the last 200 days of historical data

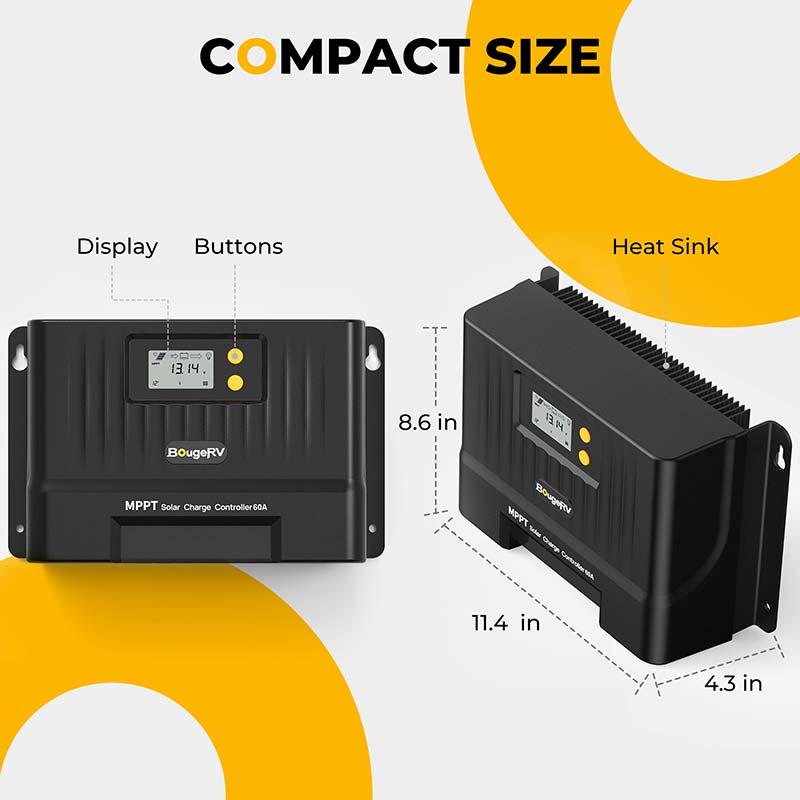

Dimension	10.27L7.32W3.22H inches
Weight	5.29 lbs

User Manual

Reviews

FAQs

MPPT controller stands for "Maximum Power Point Tracking" (MPPT) solar controller. This controller is able to monitor the generation voltage of the solar panel in real-time, track the maximum voltage current value (VI), and optimize the solar panel system to output maximum power. When using an MPPT controller, the average charging efficiency can reach up to 97%, the efficiency of BougeRV 60a mppt solar charge controller can reach 99.9%.

The 60 Amp MPPT charge controller can be used with a maximum 2880W charging system. It is mainly determined by the rated voltage of the solar panel, which can be calculated using this formula:

Amps x Volts = Watts

For example, when the voltage of the solar panel is 12V, the 60 amp MPPT charge controller can handle a maximum of 720W solar panel. When the voltage of the solar panel is 24V, it can handle a maximum 1440W solar panel system.

However, for safety reasons, it is recommended to consider a 25% margin.

The price of the MPPT solar charge controller 60 amp is around $200-300. You can buy it in BougeRV for $299.

The solar charge controller is a very important component in the solar charging system, which affects the normal charging and discharging work of the whole solar system. Therefore, when buying a 60 amp MPPT charge controller, please be sure to choose a seller with a high reputation, you can be completely assured to choose BougeRV, our product quality is good, and provide free shipping and warranty services.

You can calculate the amp of solar charge controller that you need by this formula:

Current = Power/Voltage

For example, if you have one 100-watt solar panel and the rating voltage of the solar panel is 12V, then the equation would be 100/12 = 8.3 Amp. In this case, you need a 10 Amp charge controller.
