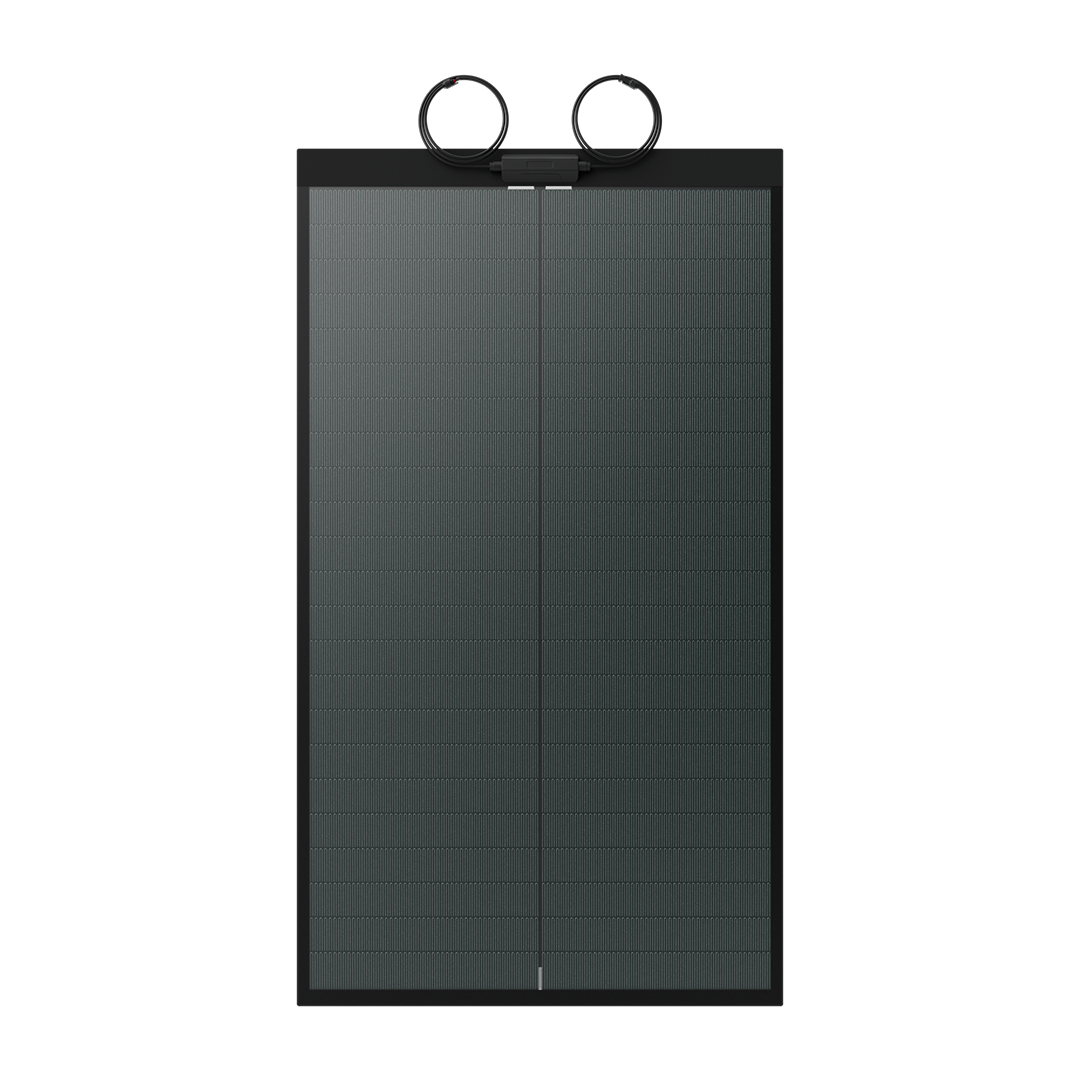

100W CIGS Solar Panel
CIGS (Copper Indium Gallium Selenide) is a cutting-edge thin-film solar cell technology that takes our solar panels to the next level. With improved durability, light sensitivity, and lifetime, our Yuma 100 Watt CIGS Flexible Solar Panel is the perfect choice for anyone looking to harness the power of the sun. Thanks to its higher absorption coefficient and ultra-thin profile, it's incredibly flexible and can be used on uneven surfaces like RV and boat roofs, or even at your favorite campsite. Get the most out of your solar setup with our top-of-the-line CIGS technology!
Learn more about BougeRV CIGS Solar Panel

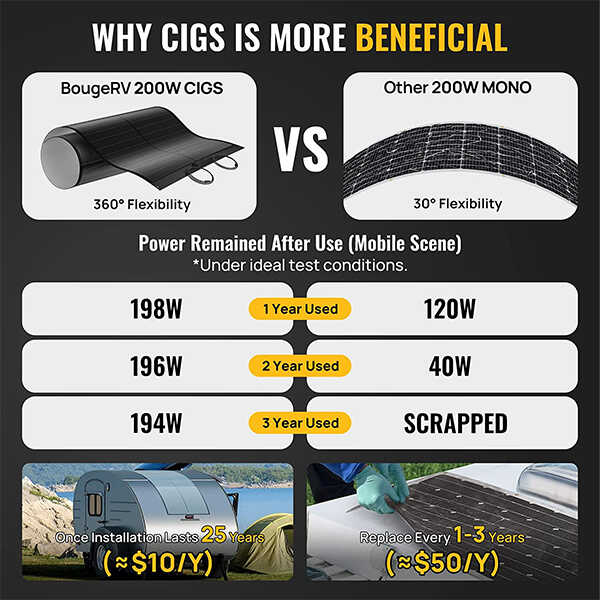

CIGS Flexible solar panel vs. other solar panels
Introducing the new and improved "Next Generation" solar panel! It's designed to be more flexible than ever before, with a 360-degree range of motion that allows for installation on any surface. Plus, it's both lightweight and durable, making it easy to install and long-lasting. And with improved efficiency and higher output, even shaded areas won't stop it from delivering top-notch performance.
HIGHLIGHTS
Designed to fit various roof shapes, this solar panel conforms to the roof's surface for better aerodynamics and a sleek appearance.

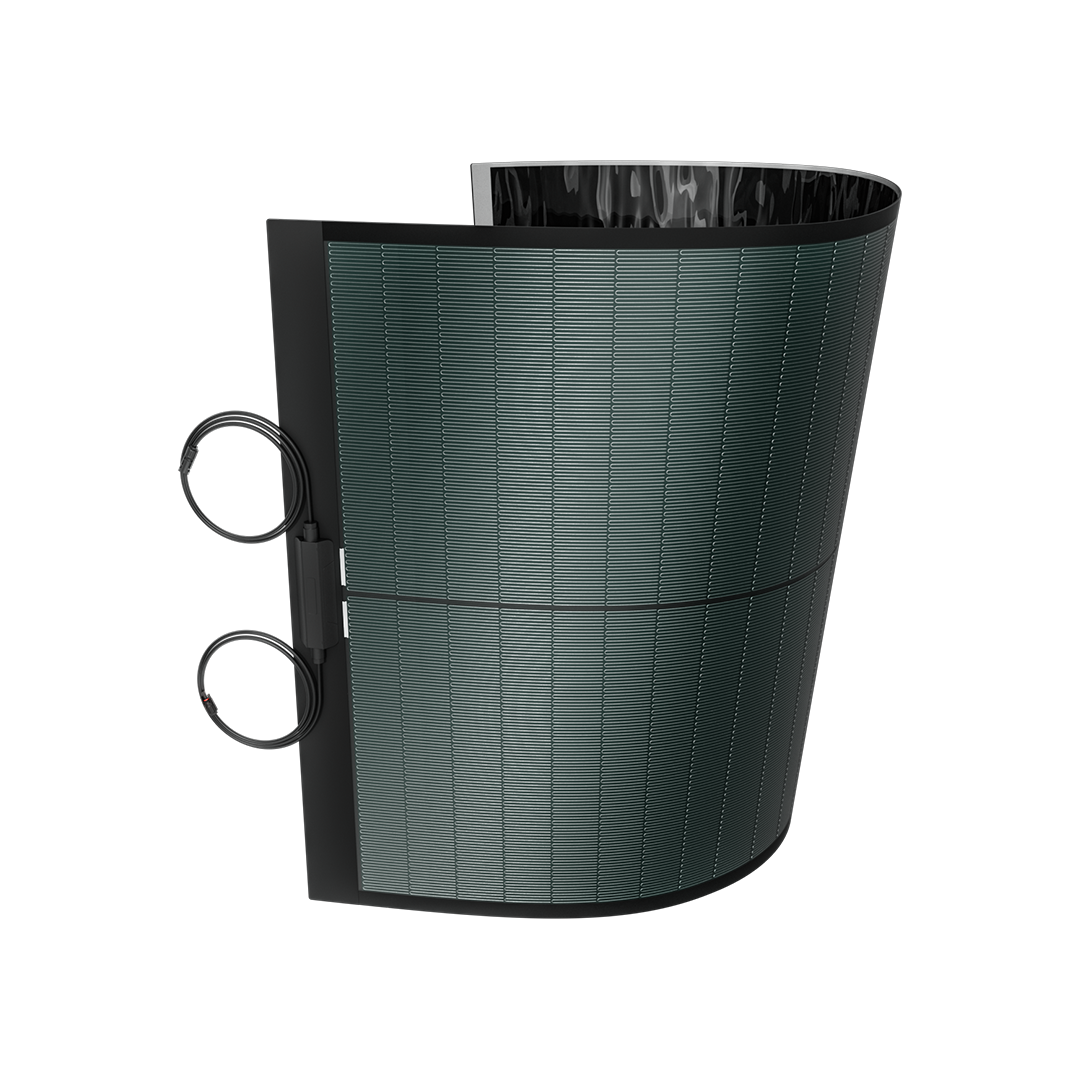

Yuma 100W CIGS Thin-film Flexible Solar Panel (Square with Adhesive) is incredibly flexible and can easily be rolled up for compact storage and transportation. It can even be bent and adjusted to fit curved surfaces without cracking.
Yuma 100W CIGS Thin-film Flexible Solar Panel (Square with Adhesive) is designed to be lightweight and thin, meaning they don't require any additional mounting or aluminum frames. This not only improves aerodynamics, but also enhances the overall aesthetics of your solar-powered setup.

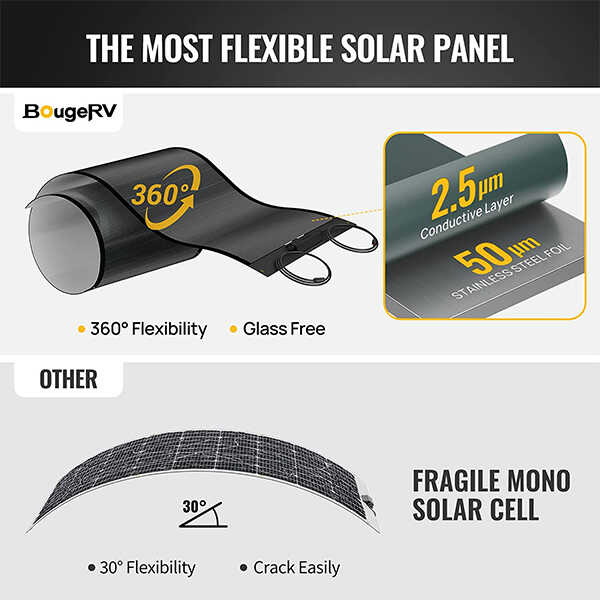

We use CIGS solar cells, the most flexible class of 360°, which will never crack. Unlike monocrystalline solar cells, which are virtually inflexible and prone to cracking, our panels are built to last.

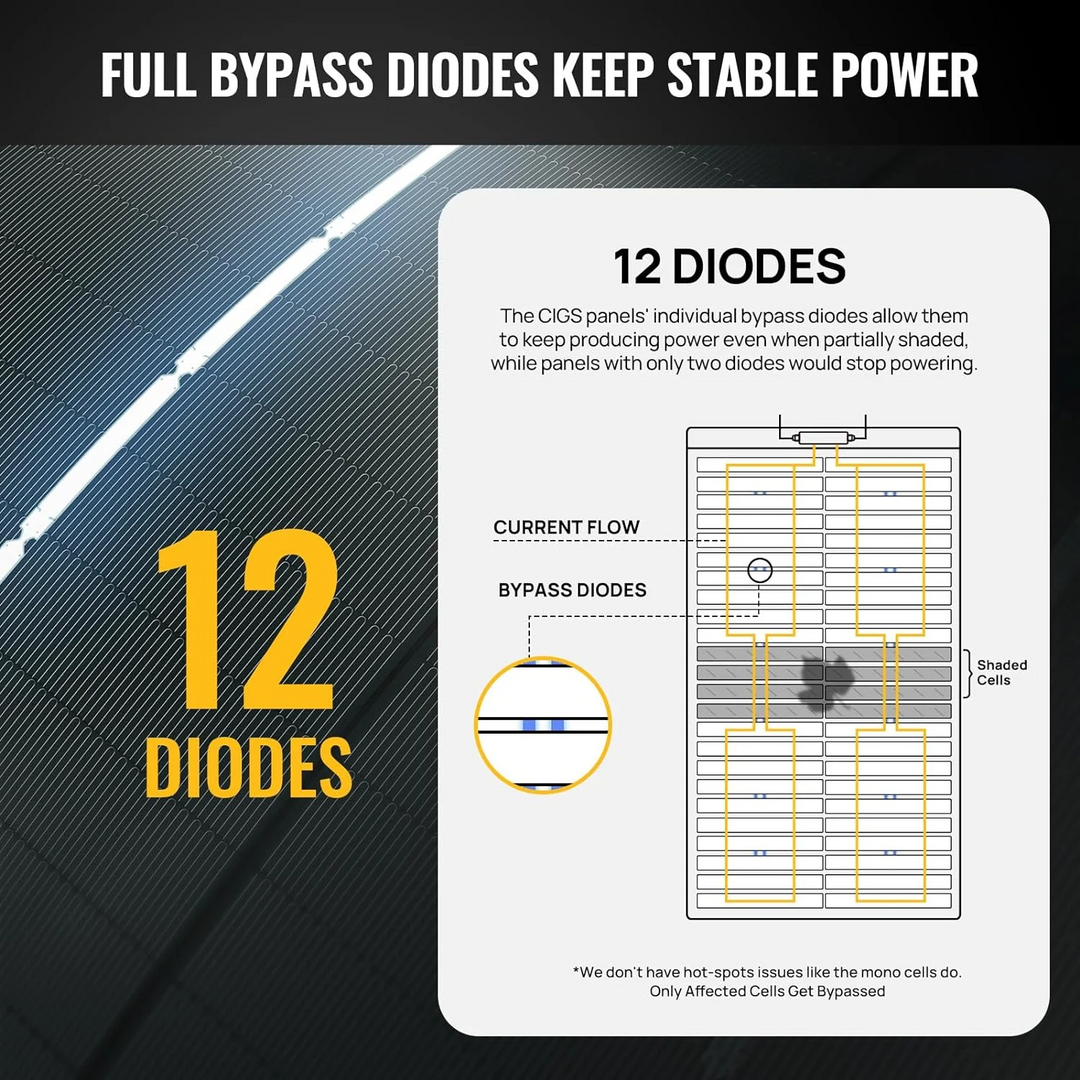

Yuma 100W CIGS Thin-film Flexible Solar Panel (Square with Adhesive) is proven to perform better than conventional monocrystalline panels in shaded conditions, producing a remarkable 38% more power over the course of an 8-hour cloudy day.
Yuma 100W CIGS Thin-film Flexible Solar Panel (Square with Adhesive) are highly durable and can withstand any impacts that may occur during installation and transportation. Even if partially damaged, our panels will still be able to function.

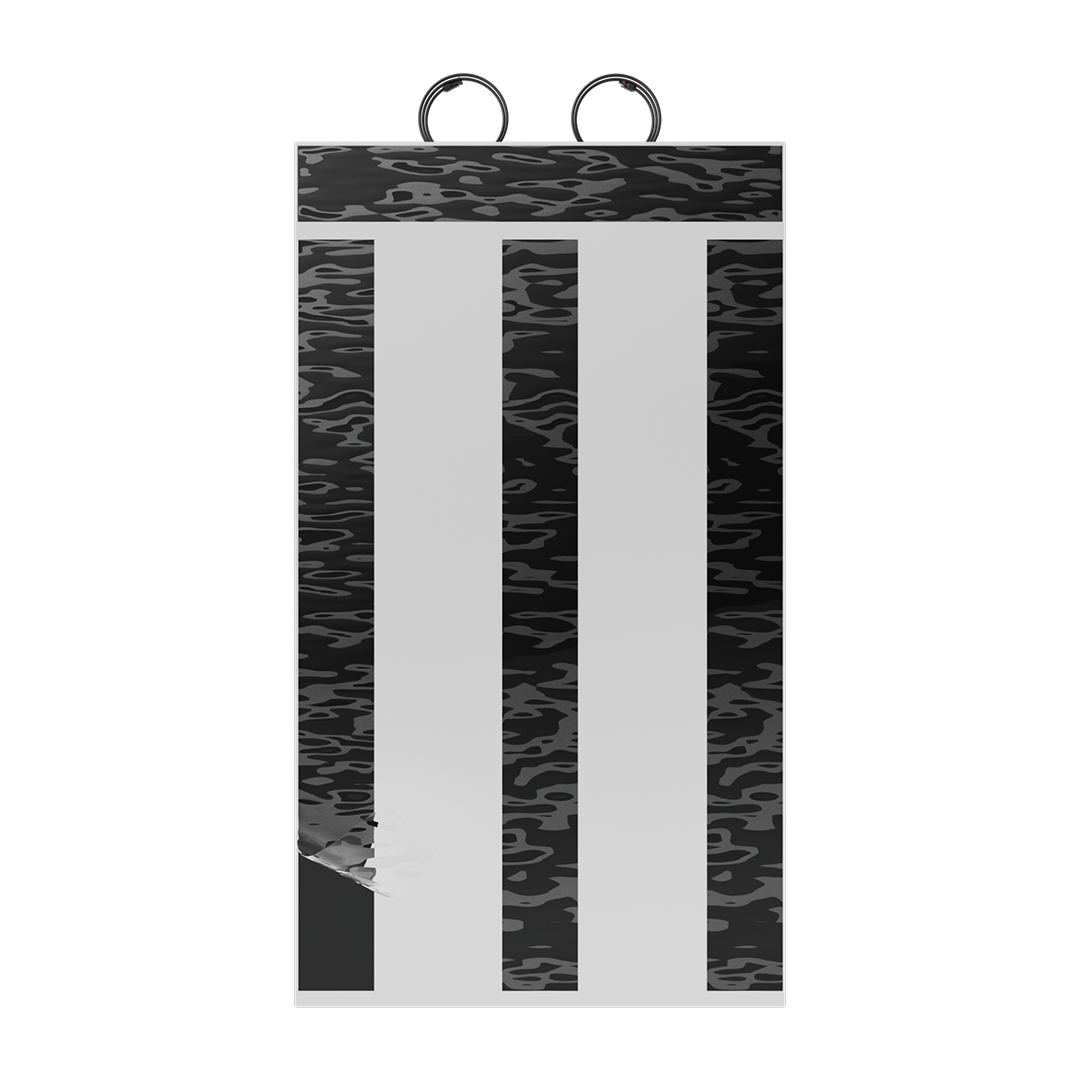

Yuma 100W CIGS Thin-film Flexible Solar Panel (Square with Adhesive) features a pre-assembled adhesive backing that eliminates the need for brackets and drilling during installation. No tools are required for an easy and hassle-free setup.
Yuma 100W CIGS Thin-film Flexible Solar Panel (Square with Adhesive) is incredibly flexible and can easily be rolled up for compact storage and transportation. It can even be bent and adjusted to fit curved surfaces without cracking.
Yuma 100W CIGS Thin-film Flexible Solar Panel (Square with Adhesive) is designed to be lightweight and thin, meaning they don't require any additional mounting or aluminum frames. This not only improves aerodynamics, but also enhances the overall aesthetics of your solar-powered setup.
We use CIGS solar cells, the most flexible class of 360°, which will never crack. Unlike monocrystalline solar cells, which are virtually inflexible and prone to cracking, our panels are built to last.
Yuma 100W CIGS Thin-film Flexible Solar Panel (Square with Adhesive) is proven to perform better than conventional monocrystalline panels in shaded conditions, producing a remarkable 38% more power over the course of an 8-hour cloudy day.
Yuma 100W CIGS Thin-film Flexible Solar Panel (Square with Adhesive) are highly durable and can withstand any impacts that may occur during installation and transportation. Even if partially damaged, our panels will still be able to function.
Yuma 100W CIGS Thin-film Flexible Solar Panel (Square with Adhesive) features a pre-assembled adhesive backing that eliminates the need for brackets and drilling during installation. No tools are required for an easy and hassle-free setup.
Multipurpose Use

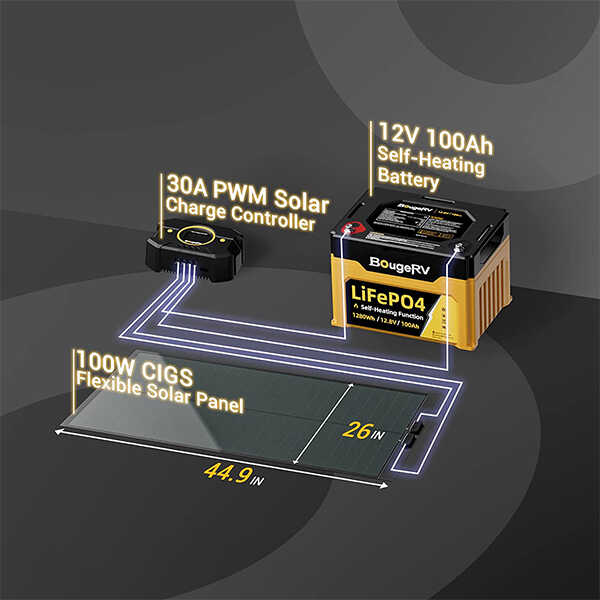

Yuma 100W CIGS Thin-film Flexible Solar Panel (Square with Adhesive) is incredibly versatile and can be installed on a wide range of surfaces, including RVs, trucks, boats, tents, and roofs. Additionally, its lightweight design makes it easy to roll up and take with you wherever you go, functioning as a portable solar panel.
Product Specifications
| SKU | ISE160 | ||
|---|---|---|---|
| Max Power (Pmax) | 100±5％W | Operating Temperature Limits | -40℉ ~ +185℉ |
| Solar Cells Efficiency | 17% | Series Fuse Rating | 10A |
| Max. Power Voltage Vmp (V) | 24±5％V | Temperature Coefficient Pmax | -0.38%/℃ |
| Max. Power Current Imp (A) | 4.21±5％A | Temperature Coefficient Voc | -0.28%/℃ |
| Open Circuit Voltage Voc (V) | 30.5±5％V | Temperature Coefficient Isc | -0.008%/℃ |
| Short Circuit Current (Isc) | 4.71±5％A | Dimensions | 42.6*26.0*0.06 inches |
| Max. System Voltage | 1000V DC | Weight | 4.54 lbs |
| Warranty Description | 10 Years | Product Type | Solar Panel |
| Performance Warranty | 25 years |
| SKU | ISE160 | ||
|---|---|---|---|
| Max Power (Pmax) | 100±5％W | Operating Temperature Limits | -40℉ ~ +185℉ |
| Solar Cells Efficiency | 17% | Series Fuse Rating | 10A |
| Max. Power Voltage Vmp (V) | 24±5％V | Temperature Coefficient Pmax | -0.38%/℃ |
| Max. Power Current Imp (A) | 4.21±5％A | Temperature Coefficient Voc | -0.28%/℃ |
| Open Circuit Voltage Voc (V) | 30.5±5％V | Temperature Coefficient Isc | -0.008%/℃ |
| Short Circuit Current (Isc) | 4.71±5％A | Dimensions | 42.6*26.0*0.06 inches |
| Max. System Voltage | 1000V DC | Weight | 4.54 lbs |
| Warranty Description | 10 Years | Product Type | Solar Panel |
| Performance Warranty | 25 years |
| SKU | ISE160 |
|---|---|
| Max Power (Pmax) | 100±5％W |
| Solar Cells Efficiency | 17% |
| Max. Power Voltage Vmp (V) | 24±5％V |
| Max. Power Current Imp (A) | 4.21±5％A |
| Open Circuit Voltage Voc (V) | 30.5±5％V |
| Short Circuit Current (Isc) | 4.71±5％A |
| Max. System Voltage | 1000V DC |
| Warranty Description | 10 Years |
| Operating Temperature Limits | -40℉ ~ +185℉ |
| Series Fuse Rating | 10A |
| Temperature Coefficient Pmax | -0.38%/℃ |
| Temperature Coefficient Voc | -0.28%/℃ |
| Temperature Coefficient Isc | -0.008%/℃ |
| Dimensions | 42.6*26.0*0.06 inches |
| Weight | 4.54 lbs |
| Performance Warranty | 25 years |
User Manual
Reviews
FAQ
The maximum bend diameter of this 100W flexible solar panel is 9.4 inches, and the maximum bend diameter of the 200W solar panel is 11 inches.
The margins on both sides of the panel are about 1mm.

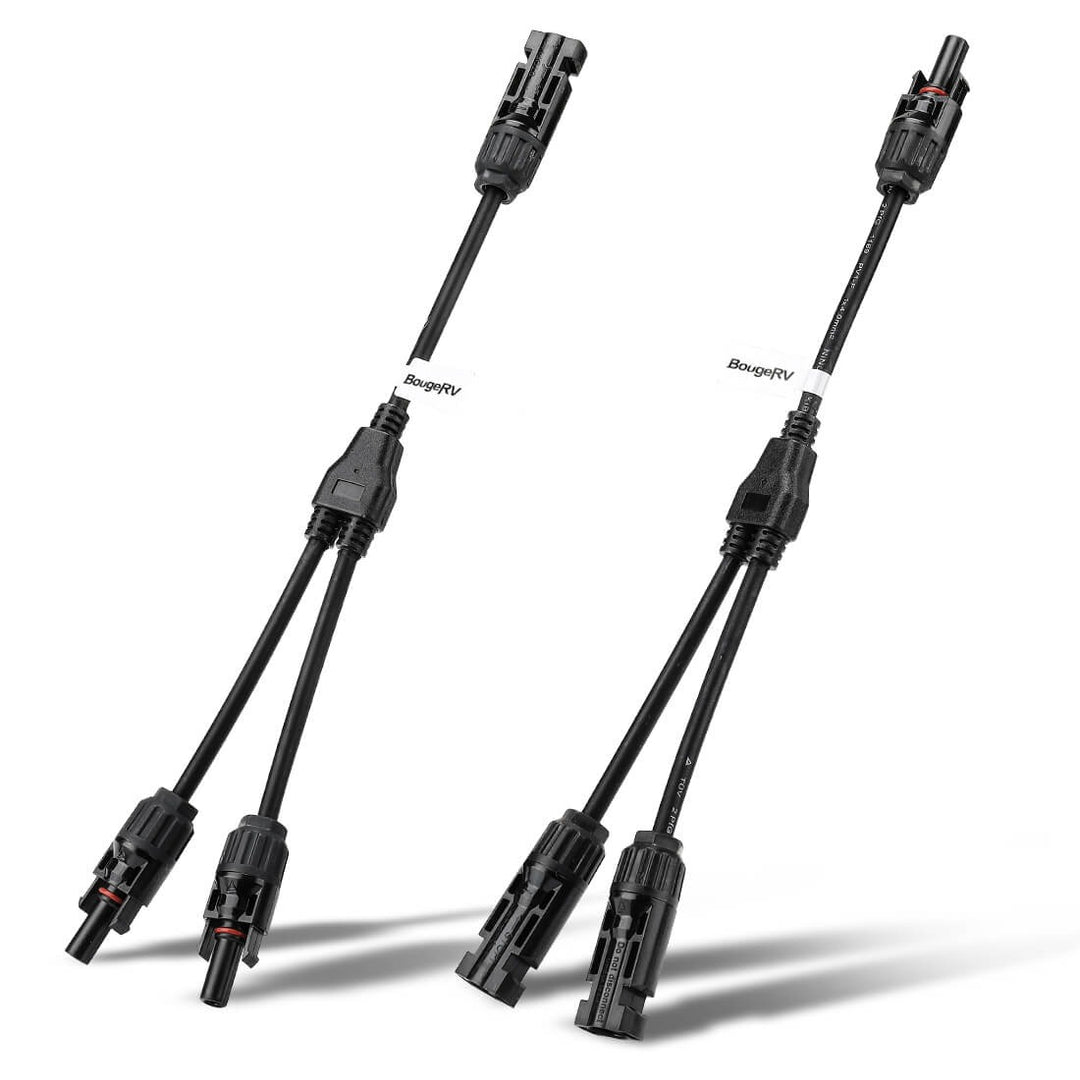

Multiple panels can be connected. The number will depend on your power requirements.
Our self-adhesive solar panels do not require mechanical installation. The glue on the back of the solar panel can withstand highway speeds.
The 100 watt CIGS solar panel is attached with adhesive and is flexible to fit any surface.
