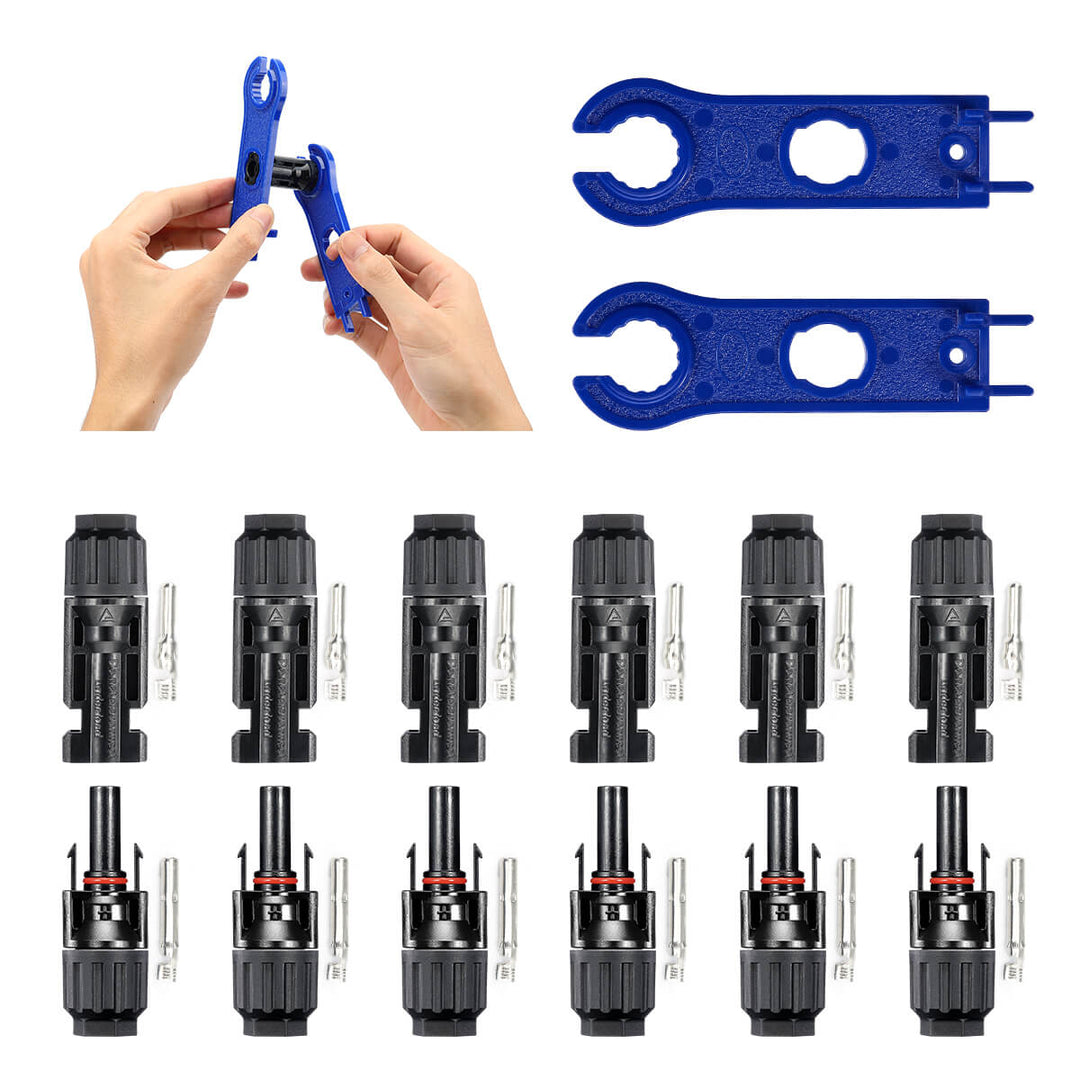

Name: Solar Connectors kits(6Pairs Male/Female &1 pair of spanners)
Brand: BougeRV
SKU: IRV014-B021
Price: 19.99 CAD
Availability: InStock

Solar Connectors kits(6Pairs Male/Female &1 pair of spanners) - BougeRV

C$19.99

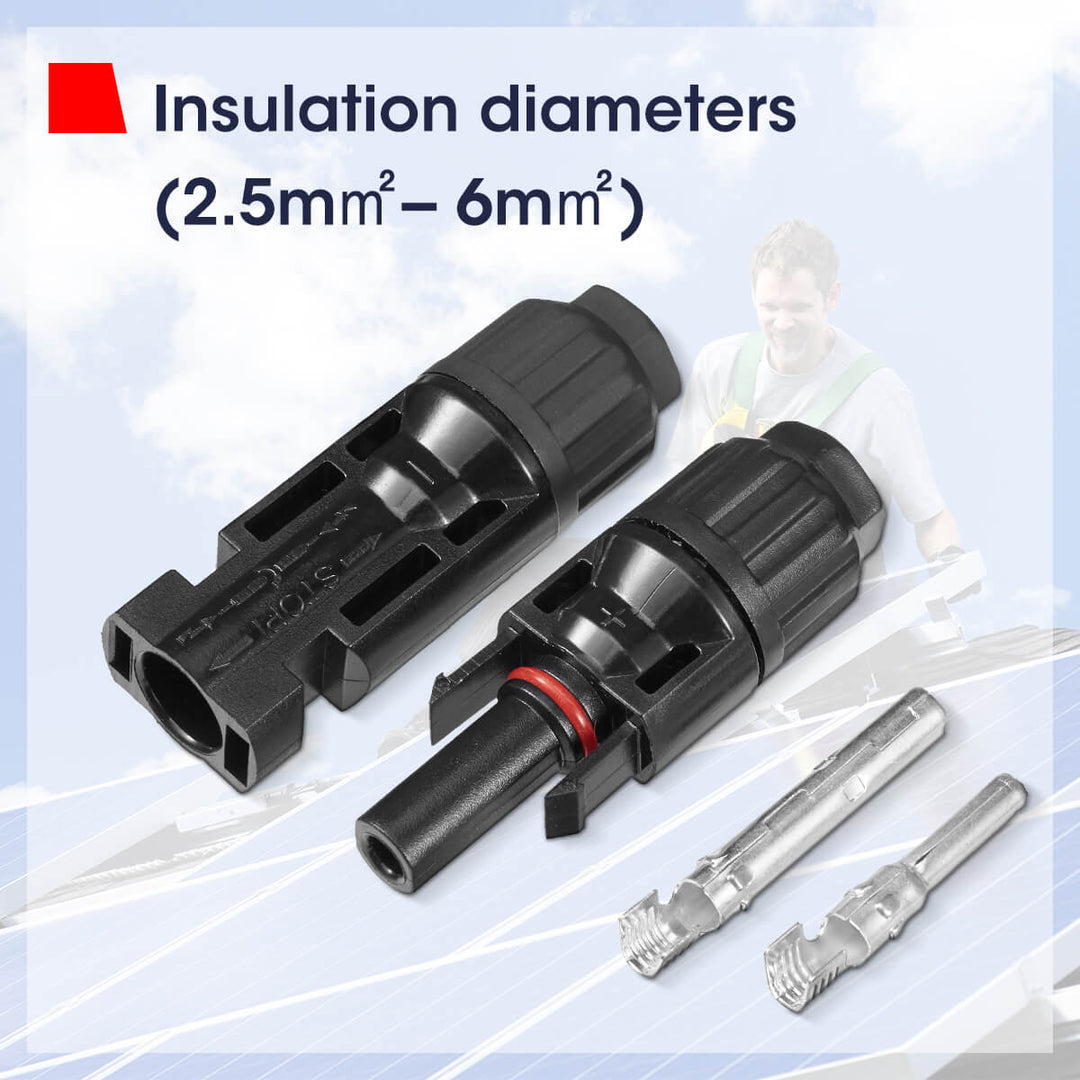

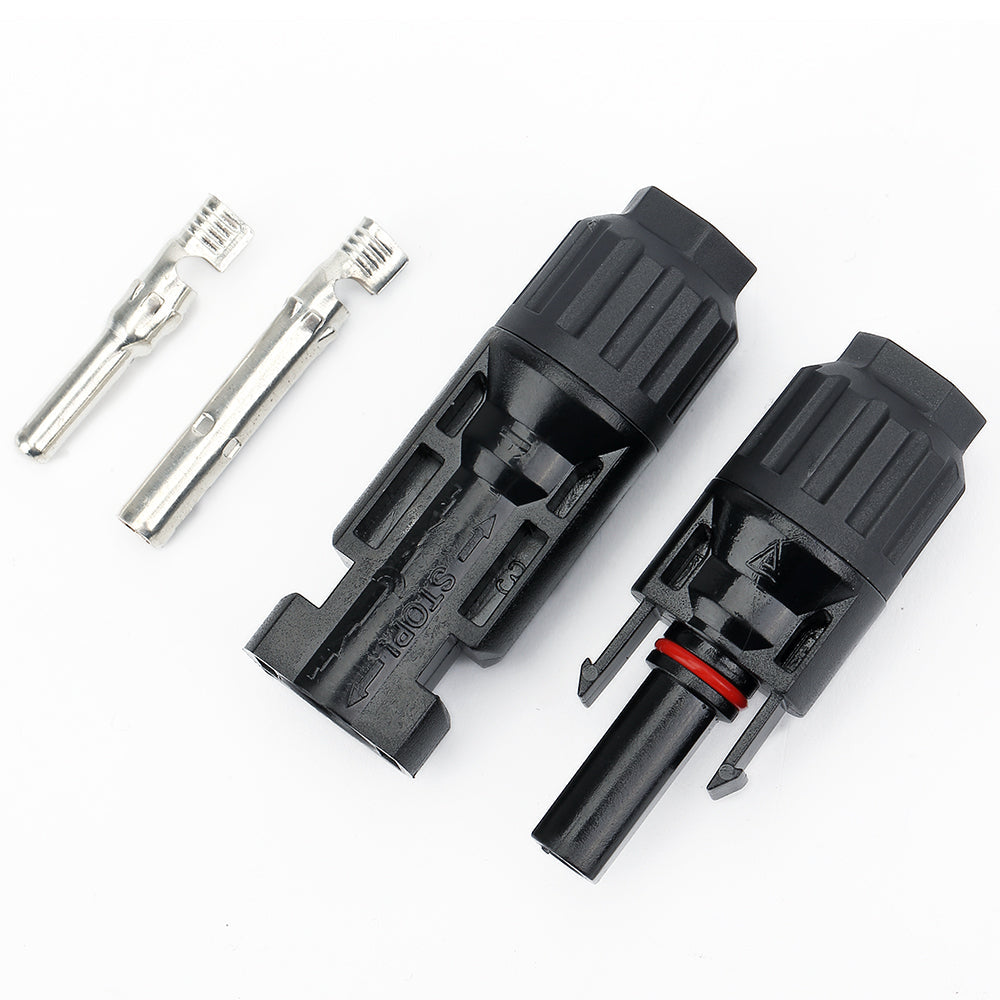

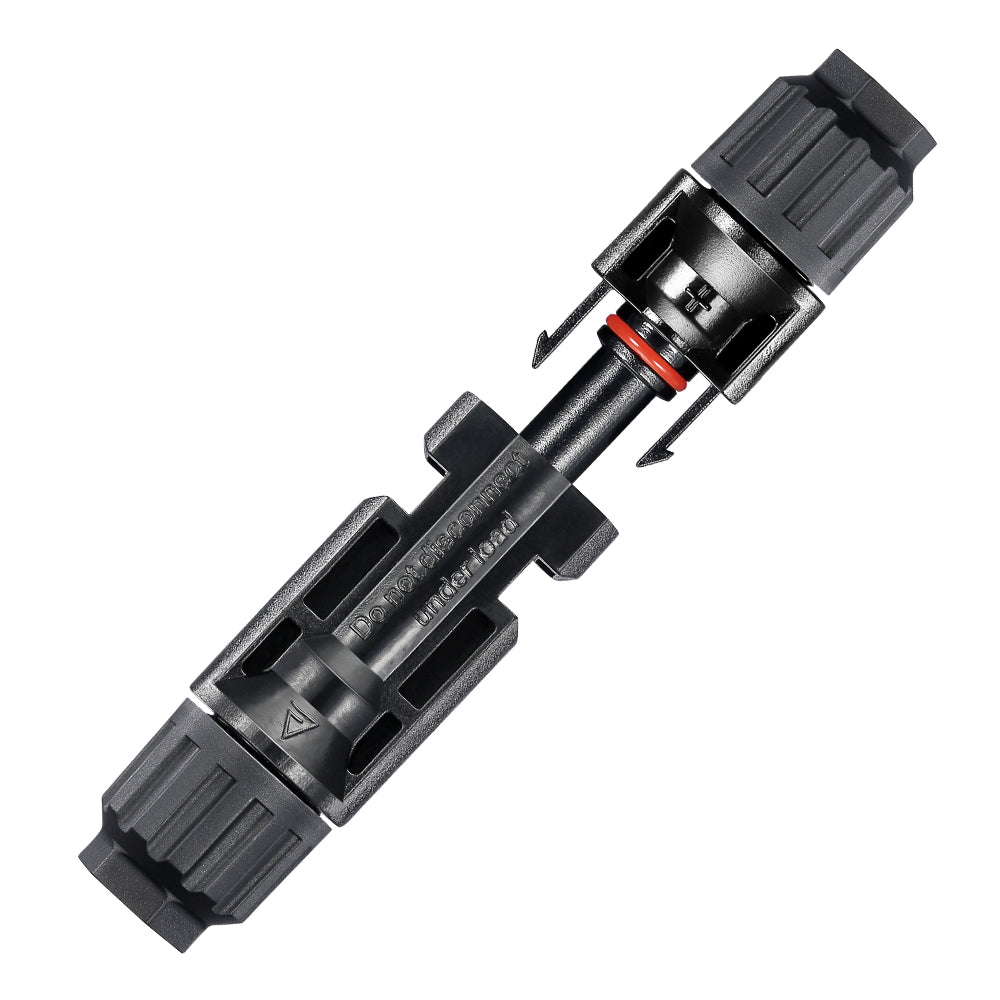

BougeRV offers high-quality MC4 connectors that are specifically designed for solar panel applications. These connectors are made from premium materials to ensure long-lasting performance and secure connections. The MC4 male and female connectors are compatible with standard MC4 cables, allowing you to easily connect and disconnect your solar panels as needed. With their IP67 waterproof rating, they provide reliable protection against dust and water, making them suitable for outdoor installations. Whether you're setting up a new solar system or need to replace existing connectors, BougeRV's MC4 male and female solar panel cable connectors are a reliable choice for your solar projects.

Read more » Fold up »

Size

6 PCS

Quantity

[{"id":40086621225033,"title":"6 PCS","option1":"6 PCS","option2":null,"option3":null,"sku":"IRV014-B021","requires_shipping":true,"taxable":true,"featured_image":{"id":29481322938441,"product_id":6797348667465,"position":2,"created_at":"2022-07-20T16:21:09+08:00","updated_at":"2022-07-20T16:21:09+08:00","alt":"Solar Connectors kits(6Pairs Male\/Female \u00261 pair of spanners) - BougeRV","width":1000,"height":1000,"src":"\/\/ca.bougerv.com\/cdn\/shop\/products\/2_9a7e76ff-3d3b-4eb0-94ae-708e92f08c0b.jpg?v=1658305269","variant_ids":[40086621225033]},"available":true,"name":"Solar Connectors kits(6Pairs Male\/Female \u00261 pair of spanners) - 6 PCS","public_title":"6 PCS","options":["6 PCS"],"price":1999,"weight":150,"compare_at_price":null,"inventory_management":"shopify","barcode":"754003740004","featured_media":{"alt":"Solar Connectors kits(6Pairs Male\/Female \u00261 pair of spanners) - BougeRV","id":21781555183689,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/ca.bougerv.com\/cdn\/shop\/products\/2_9a7e76ff-3d3b-4eb0-94ae-708e92f08c0b.jpg?v=1658305269"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Pay With Ease:

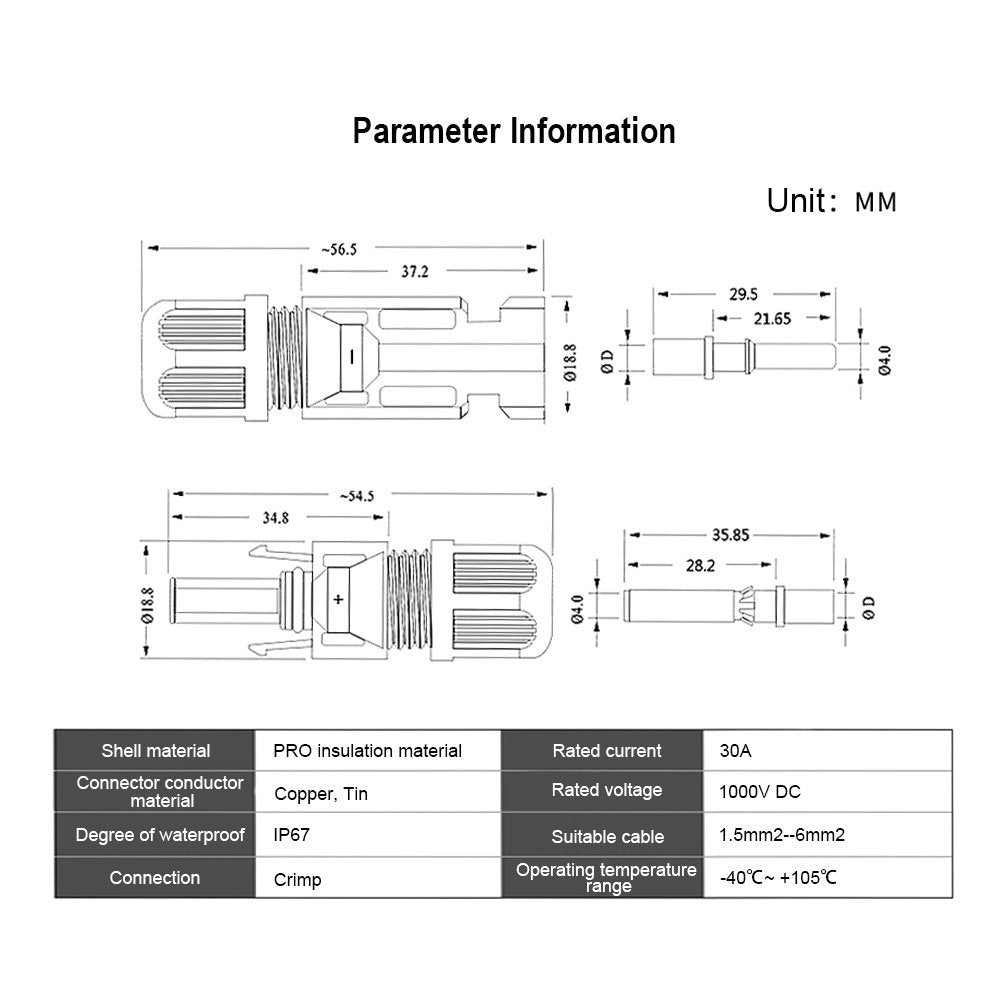

PRODUCT SPECIFICATIONS

SKU	IRV014-B021
Rated current	30A (2.5-4.0mm2)	Flammability rating	UL94-V0
Rated voltage	1000V DC	Adapter Wire	OD 5mm-7mm
Connector contact resistance	≤0.5mΩ	Insertion force	less or equal to 50N

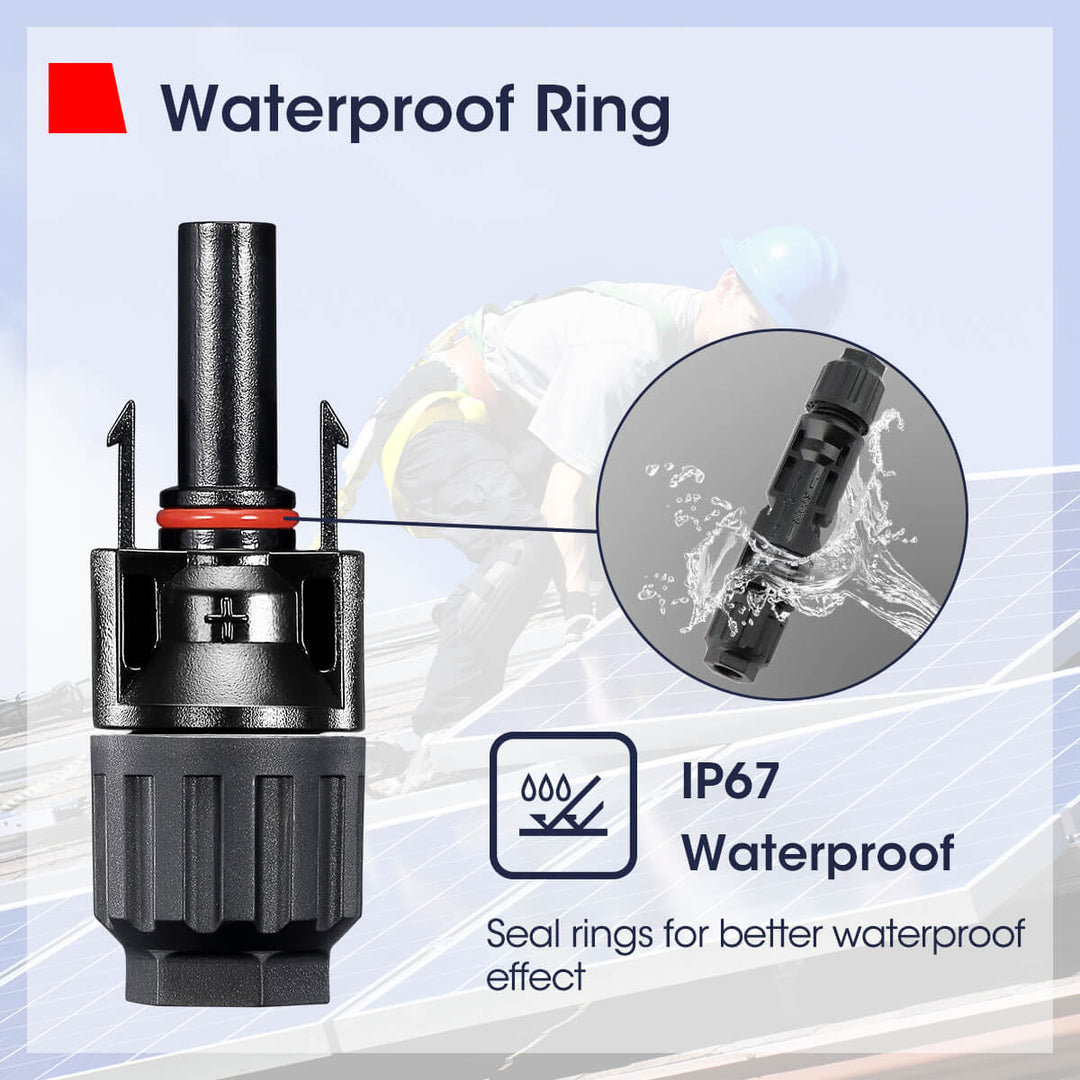

Degree of waterproof	IP67	Withdrawal force	over or equal to 50N
Operating temperature range	-40℃~ +105℃	Suitable cable	AWG 14/13/12/11/10

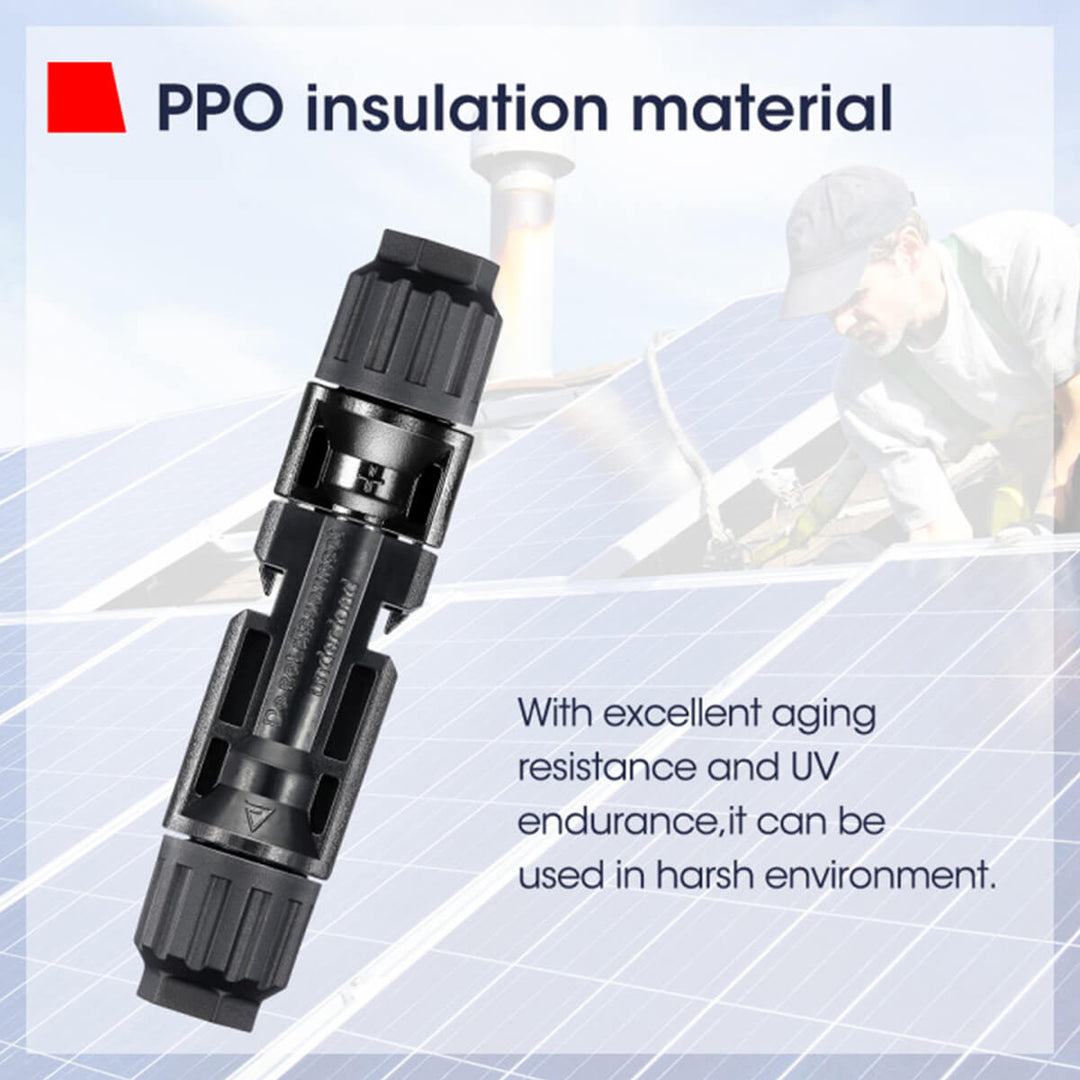

Connector conductor material	copper, Tin	Connector Insulation material	PPO or PBT

SKU	IRV014-B021
Rated current	30A (2.5-4.0mm2)	Flammability rating	UL94-V0
Rated voltage	1000V DC	Adapter Wire	OD 5mm-7mm
Connector contact resistance	≤0.5mΩ	Insertion force	less or equal to 50N
Degree of waterproof	IP67	Withdrawal force	over or equal to 50N
Operating temperature range	-40℃~ +105℃	Suitable cable	AWG 14/13/12/11/10
Connector conductor material	copper, Tin	Connector Insulation material	PPO or PBT

SKU	IRV014-B021
Rated current	30A (2.5-4.0mm2)
Rated voltage	1000V DC
Connector contact resistance	≤0.5mΩ
Degree of waterproof	IP67
Operating temperature range	-40℃~ +105℃
Connector conductor material	copper, Tin
Flammability rating	UL94-V0
Adapter Wire	OD 5mm-7mm
Insertion force	less or equal to 50N
Withdrawal force	over or equal to 50N
Suitable cable	AWG 14/13/12/11/10
Connector Insulation material	PPO or PBT
