How Does a Pure Sine Wave Inverter Work?

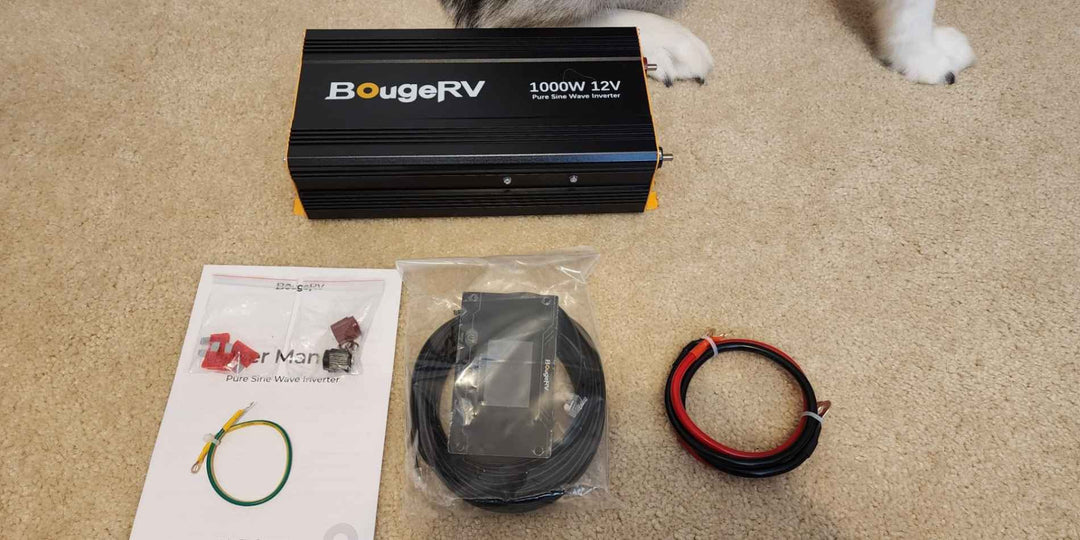

BougeRV’s 1000W 12V inverter with accessories and cables

Ever wondered what a pure sine wave inverter is and why it’s such a big deal? If you’re someone who loves camping, living off-grid, or just wants to be prepared for power outages, then this is one piece of tech you should definitely know about.

Let’s dive into the fascinating world of pure sine wave inverters, break down how they work, and why they are your new best friend.

What is an Inverter Anyway?

A BougeRV’s 2000W inverer

(A BougeRV’s 2000W inverer)

First off, let’s talk basics. An inverter is a device that converts direct current (DC) electricity into alternating current (AC) electricity. DC is the kind of power you get from batteries, solar panels, or car chargers, while AC is what you find in your household electrical outlets. Most home appliances and electronics run on AC power, so if you want to use them with a battery or solar panel, you’ll need an inverter to make the switch.

The Different Types of Inverters

Inverters come in two main flavors: modified sine wave and pure sine wave. Modified sine wave inverters are like the bargain option – they’re cheaper and simpler but not as smooth when it comes to running sensitive electronics such as CPAP machines, computers, and laptops. Think of it like listening to music through a tin can; it works, but it’s not great.

On the other hand, pure sine wave inverters produce a smoother, more consistent flow of electricity. They mimic the quality of power you get from your local utility company. This makes them perfect for running sensitive devices like laptops, medical equipment, and even some home audio systems. It’s like enjoying your favorite band live in concert versus listening on an old transistor radio.

Using BougeRV’s 1000W inverter to power a laptop

(Using BougeRV’s 1000W inverter to power a laptop)

The Magic Inside the Box: How It Works

Okay, now that we’ve got the basics down, let's crack open that metaphorical box and see what’s inside a pure sine wave inverter. Here’s a simplified breakdown of the process:

Step 1: DC Input: The journey starts with a DC power source – usually a battery or solar panel. This is the raw power that needs to be converted.

Step 2: Oscillation: Next, the inverter uses an oscillator to create pulses from the DC input. These pulses are sort of like the building blocks of the AC waveform.

Step 3: Pulse Width Modulation (PWM): Here’s where things get interesting. The inverter uses a technique called Pulse Width Modulation (PWM) to shape those pulses into a somewhat rough approximation of a sine wave. PWM involves switching the DC input on and off very rapidly at different intervals, creating a series of square waves.

Step 4: Filtering: Those square waves aren’t quite ready for prime time yet. To smooth them out, the inverter passes them through a series of filters and transformers. These components help to eliminate any jagged edges, transforming the square waves into a nice, smooth sine wave that looks much more like the AC power coming out of your wall outlet.

Step 5: Output: Finally, the polished pure sine wave exits the inverter and is ready to power your devices. Voila! You’ve successfully converted DC to AC without sacrificing the quality of your electricity.

Why Pure Sine Wave Matters?

You might be wondering, “Why go through all this trouble? Can’t I just use a modified sine wave inverter?” Well, here are a few reasons why pure sine wave inverters are worth the extra investment:

  • Device Compatibility: Some devices simply won’t run on anything but pure sine wave power. This includes certain medical equipment, laser printers, and some high-end audio/visual equipment.

  • Efficiency: Pure sine wave inverters are more efficient than their modified counterparts. This means less energy wasted and more juice for your gadgets.

  • Longevity: Using a pure sine wave inverter can actually help extend the lifespan of your electronics. The consistent, clean power reduces the wear and tear on internal components, which is especially important for sensitive devices like computers.

  • Performance: If you’re running motors or pumps, pure sine wave power ensures they operate smoothly and quietly. No more annoying hums or flickering lights!

Pure Sine Wave Inverter Applications

So, where might you find these magic boxes in action? Let’s look at a few real-world applications:

  • Camping and RVing: Pure sine wave inverters are perfect for powering up your RV appliances and gadgets, making camping trips a lot more comfortable.

Using BougeRV’s pure sine wave inverter and solar products for RVing

(Using BougeRV’s pure sine wave inverter and solar products for RV)
  • Off-Grid Living: For those living off the grid, a pure sine wave inverter combined with a solar power system can provide reliable, clean energy for everyday use.

  • Emergency Backup: In case of a power outage, having a pure sine wave inverter means you can still run essential devices like your refrigerator, sump pump, or even medical equipment.

  • Boating: If you enjoy spending time on the water, a pure sine wave inverter ensures your boat’s electronic systems run smoothly.

Choosing the Right Inverter

If you’re convinced that a pure sine wave inverter is the way to go, here are a few tips to help you choose the right one:

1. Wattage: Look at the total wattage of the devices you plan to run and ensure the inverter can handle that load. It’s always good to have a bit of extra capacity just in case.

2. Portability: Depending on your needs, you might want a portable inverter that you can easily move around.

3. Brand Reputation: Do some research on different brands. For instance, BougeRV offers high-quality pure sine wave inverters that are perfect for your solar setup. Check out reviews and see what people are saying about our reliability and customer service on our product page, YouTube channel, and more.

4. Features: Some inverters come with extra features like USB ports, remote controls, and built-in charging capabilities. Consider what extras might be useful for you.

    Wrapping Up

    In conclusion, a pure sine wave inverter isn’t just a fancy gadget; it’s a practical tool that can make your life easier, whether you’re off-grid, on the road, or just preparing for emergencies. Understanding how it works helps you appreciate the technology behind it and makes choosing the right one a breeze.

    So next time you’re planning a camping trip, setting up your solar power system, or thinking about emergency preparedness, remember the humble pure sine wave inverter. It’s the unsung hero that keeps the power flowing smoothly and reliably.

    Check out our YouTube videos to learn more about BougeRV’s pure sine wave inverter:
